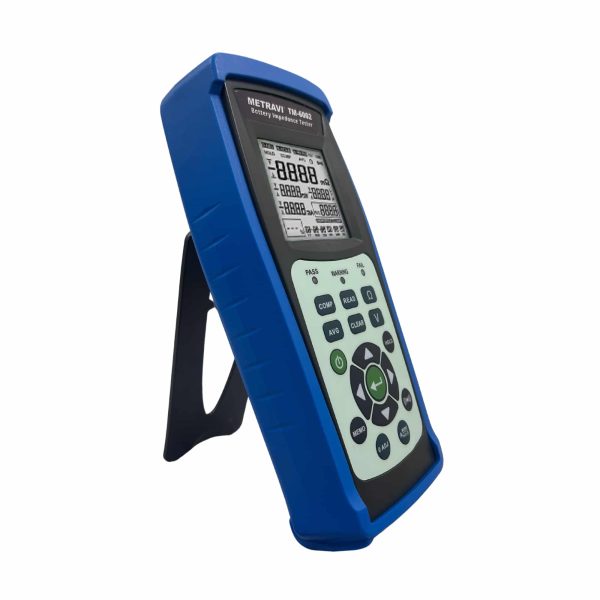

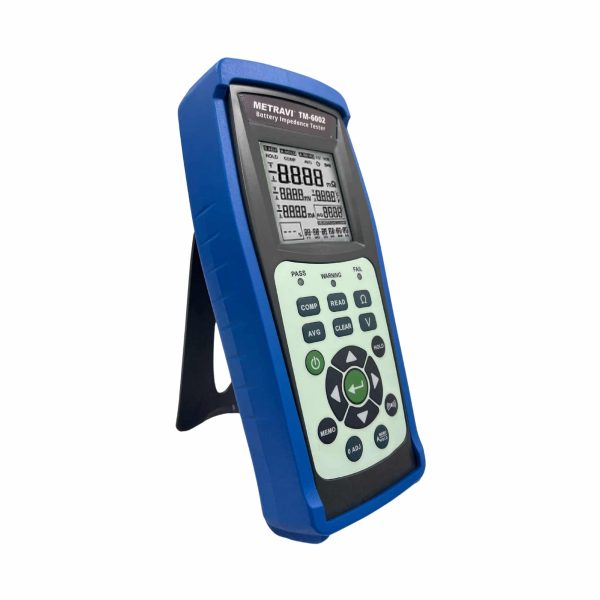

TM-6002 Battery Impedance Tester
₹117,551.00 including GST @18%
Battery Impedance Tester is used to check Internal Resistance, Voltage, Current and Temperature for batteries. It is designed for measuring the internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
The Metravi TM-6002 Battery Impedance Tester is used to check Internal Resistance, Voltage, Current and Temperature for batteries. It is designed for measuring the internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.
With quick response time, it simultaneously displays the results of Battery Impedance and Voltage measurements. Features a built-in comparator function to rate the conditions as pass, warning or fail.
The Metravi TM-6002 is an ideal tester for Automotive applications, UPS maintenance and Telecommunication applications.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Sampling Rate | 2 sec |
| Overload Indication | Overload Indication |
| Low Battery Indication | |
| Auto Power Off | |
| Data Logging | |
| Resistance Range | |
| Resistance Resolution | 10uΩ to 10mΩ |
| Resistance Accuracy | ±0.8% |
| Resolution | |
| DC Current Range | |
| DC Current Resolution | 0.1A |
| DC Current Accuracy | ±2.0% |
| Open-Circuit terminal voltage | 7.0 Vp-p max |
| Number of comparator settings | 99 sets |
| Measuring method | Impedance (AC four-terminal method) |
| Manual and auto continuous Data logging | 9999 sets |
| Operation Temperature | 5ºC to 40ºC |
| R.H. value | 80%RH or less |
| Operating ambience | In-door use, under environmental Pollution Grade II |
| Fuse specification | 10mm |
| Power Supply | 100V – 240V AC, 50/60Hz, Batteries or Mains |
| Battery Type | AA, LR6 |
| Temperature Measurement | 20ºC ~ 60ºC (-4ºF ~ 140ºF) |
| Temperature Accuracy | |
| Voltage Measurement Range | 40V, 4V |
| Temperature Resolution | 0.1°C/0.1°F |
- Measures internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.

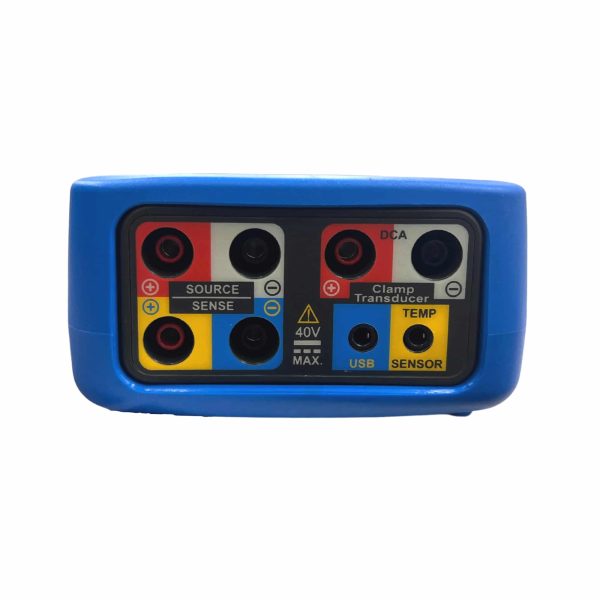

- AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get accurate results.

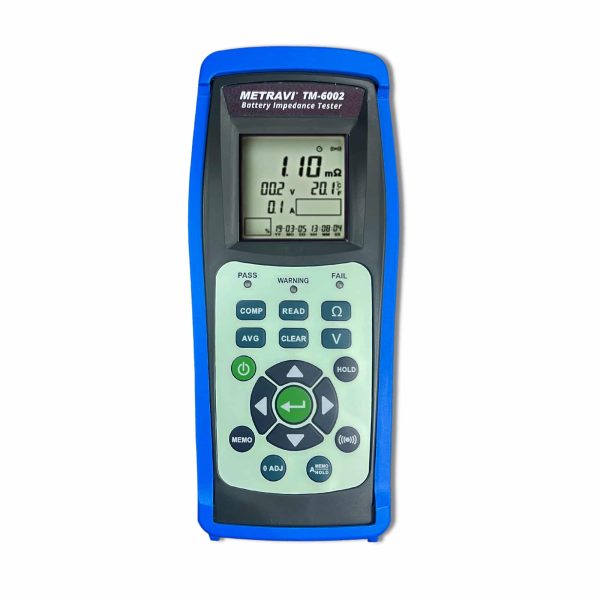

- Multi-display to show the internal impedance, voltage, temperature of the battery and date & time simultaneously.
- It has 99 sets of composite comparator function, which can be set at impedance and voltage values to reliably detect battery deterioration.
- 9999 sets of data memory.

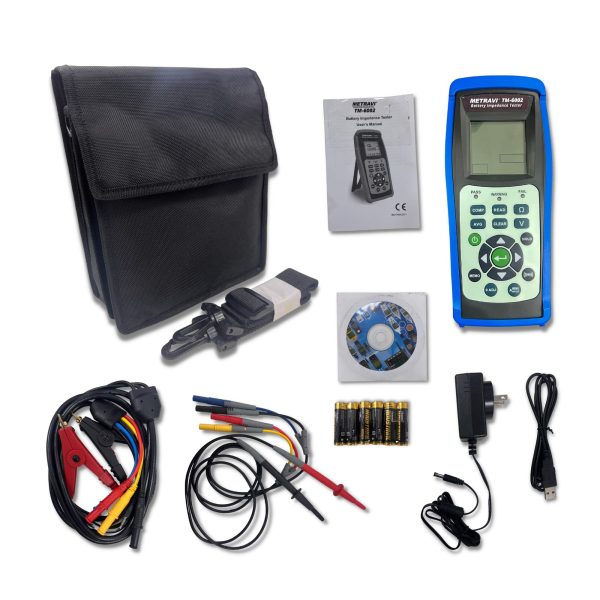

- Pin type leads, which can easily contact the battery electrodes are supplied as standard accessory and helps get more accurate 4-terminal measurements.
- Large Backlit LCD Display
- Data Logging up to 9999 sets
- Resistance Measurement: 10uΩ to 40Ω
- Voltage Measurement: 1mV to 40V
- Temperature Measurement: -20° to 60°C
- DC Current Measurement: 0.6A to 700A DC
View Catalogue: Metravi TM-6002 Battery Impedance Tester Catalogue
