PRO CTG-03 Coating Thickness Gauge with USB Interface
₹18,158.00 including GST @18%
Coating Thickness Gauge with USB Interface. Single probe for coating measurements for both ferrous and non-ferrous metal substrates. Full colour, auto-rotation TFT screen. Self calibratable. Measures upto 2000μm. Also measure Temperature, Humidity & Dew Point temperature. Data logging 50 sets. USB interface for PC analysis software.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
The Metravi PRO CTG-03 Coating Thickness Gauge with USB Interface works both on magnetic as well as non-magnetic surfaces.
Works on both principles, magnetic induction and eddy current. Single probe required for coating measurements, for both ferrous and non-ferrous metal substrates. Adaptable to specific tasks: i.e. can be used on special geometries or on materials with special properties. Measurement values and user information are shown on LCD, display back light ensures easy reading of screen data in dark conditions.
Three different operating modes are available: DIRECT mode, GROUP mode and SSPC mode.
DIRECT mode is recommended for simple, quick, occasional measurements. It provides statistical analysis, single values are not saved, the statistical analysis program can evaluate 80 readings.
GROUP mode permits measurement and storage of readings in a free programmable memory, maximum of 400 readings and 4 series of measurements can be analysed according to various statistical criteria.
SSPC mode: Spot and Area averaging mode to comply with SSPC (Society of Protective Coatings) methods, the minimum number of measurements per spot is 3, the minimum number of measurements per area is 5.
The Metravi PRO CTG-03 Coating Thickness Gauge with USB Interface is designed for non-destructive, fast and precise coating thickness measurement and the principal applications lie in the field of corrosion protection and prevention.

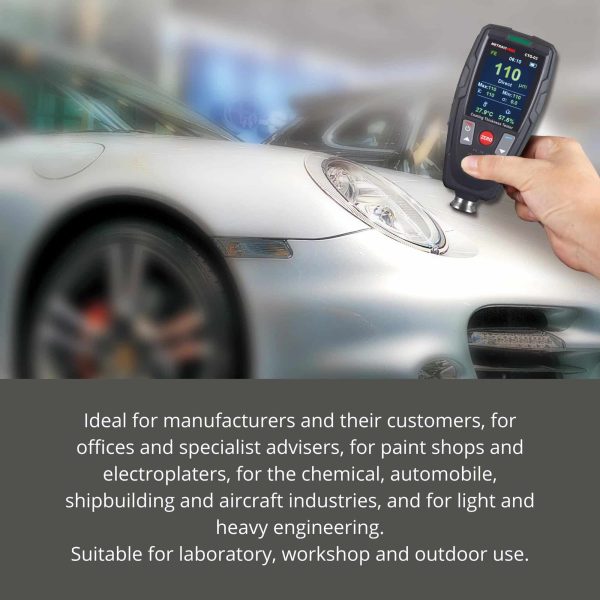

Ideal for:
- offices
- specialist advisers
- paint shops and electroplaters
- chemical industry
- automobile industry
- shipbuilding industry
- aircraft industry
- light and heavy engineering
- laboratories
- workshops
- outdoor use
Additional information
| Brand | |
|---|---|
| Warranty | |
| Model | |
| Colour | |
| Display | |
| Auto Power Off | |
| Max/Min/Avg/Dif | |
| Low Battery Indication | |
| Interface | USB |
| LED Indication | 3-Colour LED Indication |
| Measuring Material | Ferrous Material, Non Ferrous Material |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 2 |
| Measuring Range | Ferrous: 0 to 2000μm, Non Ferrous: 0 to 2000μm |
| Tolerance Range | Ferrous: ±2%±2μm, Non Ferrous: ±2%±2μm |
| Repeatability | Ferrous: (±1%±1)μm, Non Ferrous: (±1%±1)μm |
| Low Range Precision | Ferrous: 0.1μm, Non Ferrous: 0.1μm |
| Minimum Curvature Radius | Ferrous: 1.5mm, Non-Ferrous: 3mm |
| Diameter of Minimum Area | Ferrous: 7mm, Non Ferrous: 5mm |
| Basic Critical Thickness | Ferrous: 0.5mm, Non Ferrous: 0.3mm |
| Stability Test | Stability Test |
| Continuous Test | Continuous Test |
| SSPC Mode | SSPC Mode |
| Certifications | GB/T 4956-1985, GB/T 4957-1985, JB/T 8393-1996, JJG 818-93, JJG 889-95 |
| Temperature Range | |
| Temperature Accuracy | |
| Humidity Range | 0 to 100%RH |
| Humidity Accuracy | +3.2%RH at 20%-70%, +4%RH other |
| Working Modes | DIRECT, GROUP, SSPC |
| Language selection: | Chinese, English, French, German, Italian, Japanese |
| Alarm | High & Low alarm with light & sound |
| Calibration | Self-calibratable |
| Sensor Type | Ruby Sensor |
- Measuring Range: 0 ~ 2000μm
- Accuracy: Low range precision 0.1μm
- Guaranteed to Lerance (of reading): (±2%±2)µm

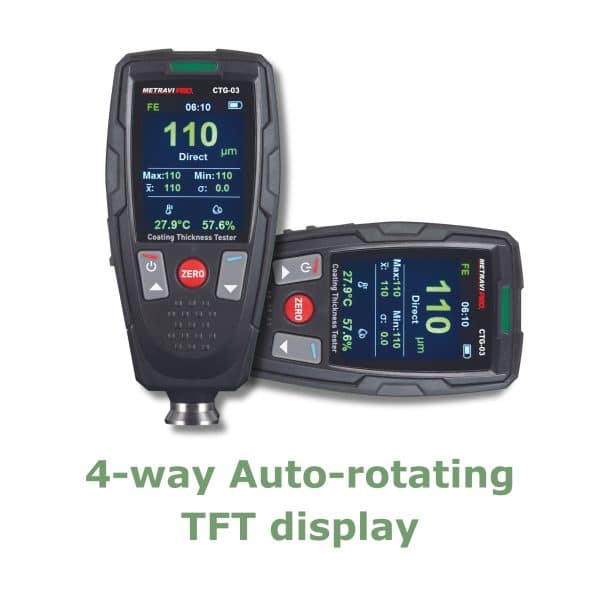

- Display: 2.4” TFT colour 4-way auto-rotating colour display with 10 levels of adjustable backlight brightness

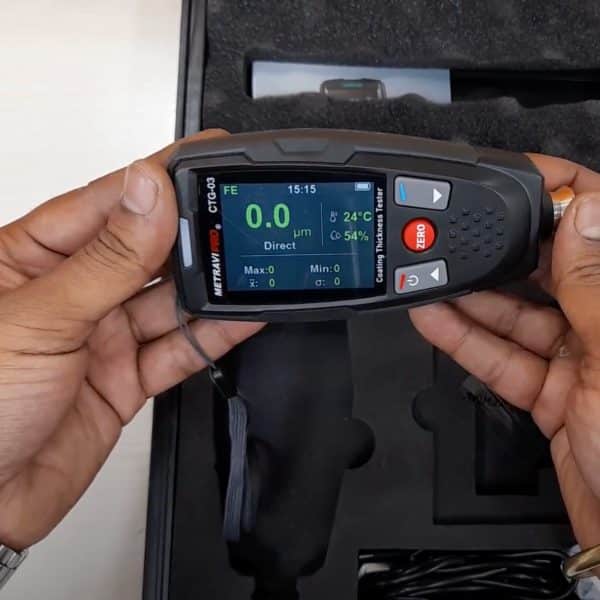

- Auto-rotation Screen: 4-way – 0°, 90°, 180°, 360°

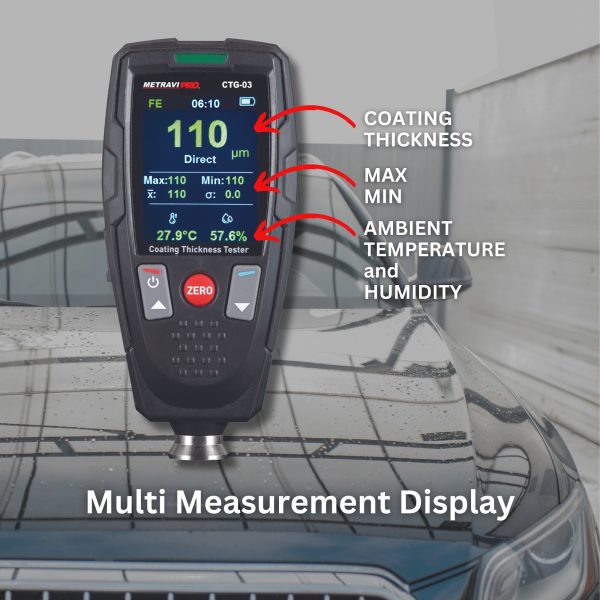

- Other Measurements: Temperature, Humidity and Dew Point temperature
- Data Logging: 50 sets
- Tests: Stability test, Continuous test
- Battery Saving: Set auto power-off time
- SSPC mode
- Alarms & Indications: Warning with beeper and backlight flash, 3-Colour LED indication
- Menu operation system
- Working modes: DIRECT, GROUP and SSPC
- AVG, MAX, MIN, Stand and Deviation (S.DEV) display
- Calibration: Self-calibratable, Basic, one-point and SSPC mode calibration

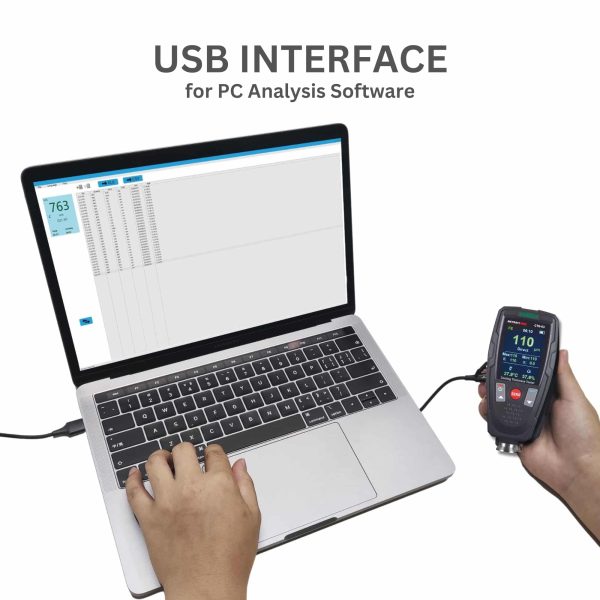

- Interface: USB interface for PC analysis software
- 10 levels of adjustable LCD backlight brightness
- Low battery & Error indications
- Power: 2 x 1.5V AA Alkaline Batteries
