CTG-02 Coating Thickness Gauge
₹30,308.00 including GST @18%
Coating Thickness Gauge with single extendable probe for coating measurements, for both ferrous and non-ferrous metal substrates. Self calibratable, Data Logging for up to 2000 data, with USB Interface for PC analysis software. Measures up to 2000µm.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
Measures Coating thickness on both ferrous and non-ferrous materials. Also comes with an external probe.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Auto Power Off | |
| Dust & Water Proof | |
| Memory and Storage | 2500 readings |
| Measuring Material | Ferrous Material, Non Ferrous Material |
| Measuring Range | Ferrous: 0 to 2000um / 0 to 78.7mils, Non Ferrous: 0 to 2000um / 0 to 78.7mils |
| Tolerance Range | Ferrous : ±2%+2um / ±2%+0.08 mils, Non Ferrous: ±2%+2um / ±3%+0.08mils |
| Precision | Ferrous: 0.1um / 0.01mils, Non Ferrous: 0.1um / 0.001mils |
| Minimum Curvature Radius | Ferrous: 1.5mm, Non-Ferrous: 3mm |
| Diameter of Minimum Area | Ferrous: 7mm, Non Ferrous: 5mm |
| Basic Critical Thickness | Ferrous: 0.5mm, Non Ferrous: 0.3mm |

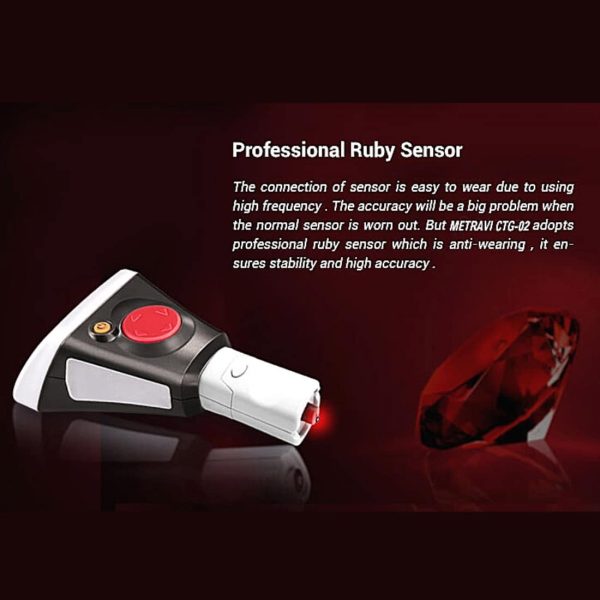

| Sensor Type | Ruby Sensor |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| Minimum measurable thickness | Ferrous: 0.5 mm, Non Ferrous:0.3mm |
| Working Temperature | 0°C- 40°C |
| Working Relative Humidity | 20% – 90% |
| Low Battery Indication | |
| Calibration | Self-calibratable |
| Interface | Bluetooth with smartphone app |
- Measures coating Thickness on both Ferrous and Non Ferrous materials with interface cable & S/W

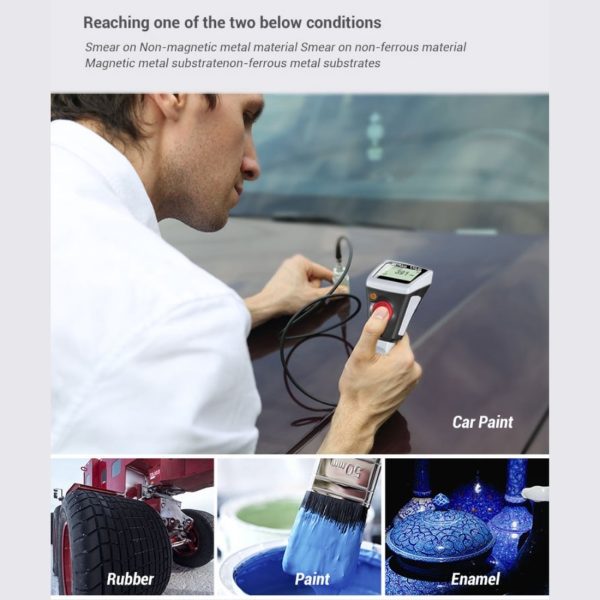

- Measured Coatings: Non-magnetic coatings (e.g. paint, zinc) on steel; Insulating coatings(e.g. paint, anodizing coatings)on no-ferrous metals
- Operating with MENU easily
- Memory for 2500 readings
- Delete single readings and all group readings easily
- Error indication
- Disable Auto-Power-off function via MENU setting
- Separate sensor with cable to be attached to the instrument.
- Disable Auto Power Off function via MENU setting.
- Measuring Ranges :-
- Ferrous : 0 ~ 2000um / 0 ~ 78.7mils
- Non Ferrous : 0 ~ 2000um / 0 ~ 78.7mils
- Guaranteed Tolerance :-
- Ferrous : ±2% +2um / ±2% + 0.08 mils
- Non Ferrous : ±2% +2um / ±3% + 0.08mils
- Precision :-
- Ferrous : 0.1um / 0.01 mils
- Non Ferrous : 0.1um / 001 mils
- Minimum Curvature radius :-
- Ferrous : 1.5mm / Non-Ferrous : 3mm
- Diameter of Minimum Area :-
- Ferrous : 7 mm / Non ferrous : 5 mm
- Basic critical thickness :-
- Ferrous : 0.5mm / Non Ferrous : 0.3mm
View Catalogue: Metravi CTG-02 Coating Thickness Gauge Catalogue
