Name: NCTM-1000 Non-contact Type Tachometer
Brand: Metravi
SKU: NCTM-1000
Availability: InStock

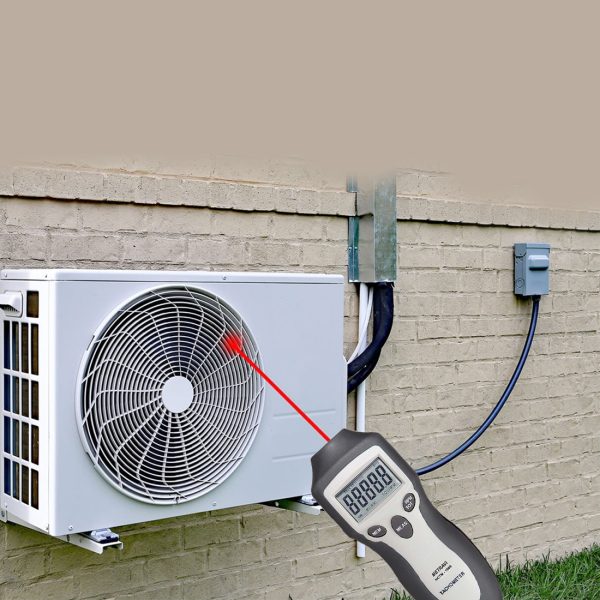

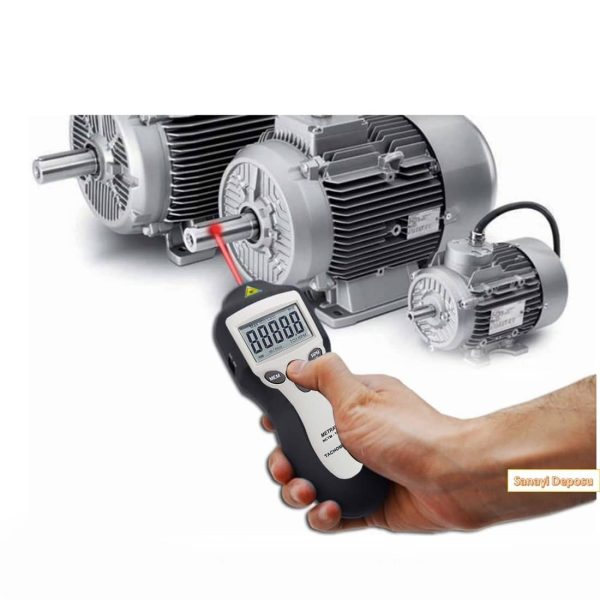

Using the Metravi NCTM-1000 Non-contact Tachometer

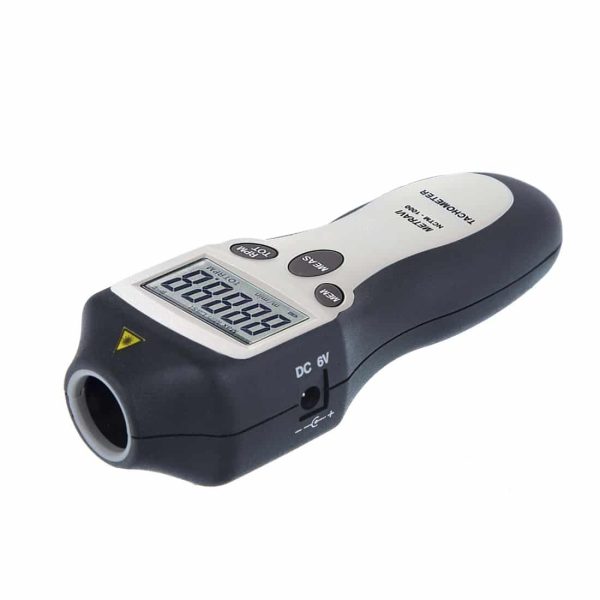

Metravi NCTM-1000 Non-contact Tachometer

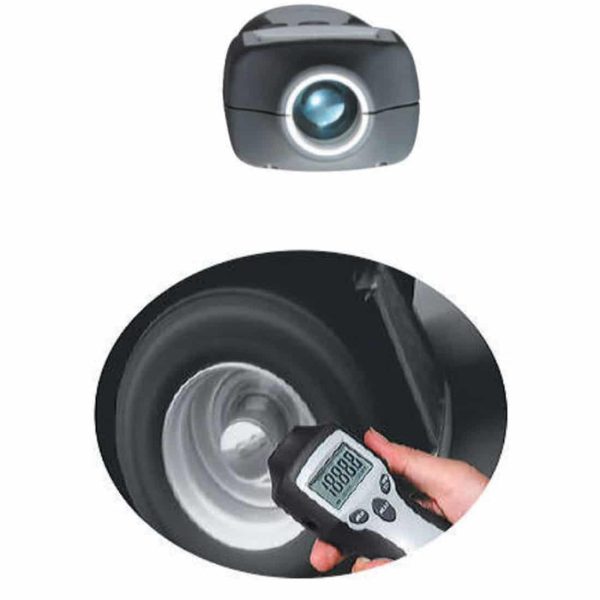

Metravi NCTM-1000 Non-contact Tachometer sensor view

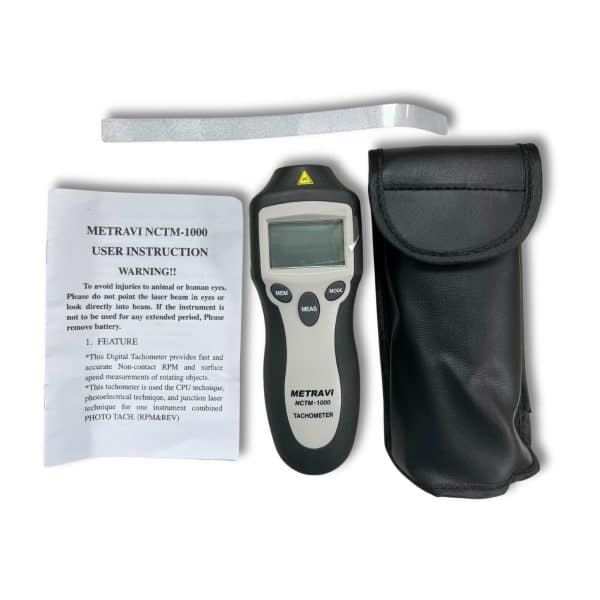

Metravi NCTM-1000 Non-contact Tachometer Product Kit with accessories

NCTM-1000 Non-contact Type Tachometer

0 out of 5

( There are no reviews yet. )

₹5,063.00 including GST @18%

Non-contact type Tachometer Cum Counter with Max / Min . Last Data Record. Measures 2 to 99,999 RPM and 1 to 99,999 Counts.

Categories: Motor Testing Tools, Non-contact Tachometer, Tachometer

Compare

Description
Additional information
Specifications
Catalogue
Reviews (0)

Description

The Metravi NCTM-1000 Non-contact type Tachometer and Counter features Max / Min . Last Data Record and measures 2 to 99,999 RPM and 1 to 99,999 Counts.

It provides fast and accurate non-contact RPM and TOT measurements of rotating objects by using reflective tape on object to be measured and pointing with the laser.

Features:

Fast & Accurate
Wide Range
High Resolution
CPU & photoelectric technique
2 Test Modes: RPM & REV
Highly visible, backlit display
Data Hold & Recall
Max/Min Readings

Additional information

Model	NCTM-1000
Brand	Metravi
Warranty	One year against manufacturing defects
Colour	Black
Display	Backlit LCD
Contact or Non-contact Type	Non-contact Type
RPM (Non-contact) Test Range	2 to 99999 RPM
Counter Test Range	1 to 99999 Counts
Resolution	0.1 RPM (up to 999.9 RPM), 1 RPM (over 1000 RPM)
Sampling Time	0.5 sec (over 120 RPM)
Detecting Distance	50 to 500 mm
Time Base	Quartz Crystal
Power Source	Battery Operated
Battery Type	Alkaline
Battery Size	9V
No of Batteries	1
Max/Min/Avg/Dif	Max/Min
Accuracy	±0.05% ±1
Type of Laser Pointer	Laser Pointer
Low Battery Indication	Low Battery Indication
Data Hold	Data Hold
Auto Power Off	Auto Power-off
Power Consumption	Approx 45 mA
Operation Temperature	0°C – 50°C

Non-contact type Tachometer and Counter
Provides fast and accurate Non-contact RPM and surface speed measurements of rotating objects.
Uses the CPU technique, photo-electrical technique, and junction laser technique for one instrument combined PHOTO TACHOMETER (RPM & REV).
RPM Test Range: 2 to 99,9999 RPM
Count Range: 1 to 99,9999
Accuracy: ±0.05% ±1 Digit
Resolution: 0.1 RPM up to 1000RPM else 1 RPM
Sampling Time: 0.5 seconds (Over 120 RPM)
Detecting Distance: 50mm to 500mm
Two test modes: Rotation speed mode (unit: RPM) and count mode (unit: REV)
Wide measure range and high resolution
Display: 5 digits large Backlit LCD
Built in memory recall Max. Min. & Last value Stored
