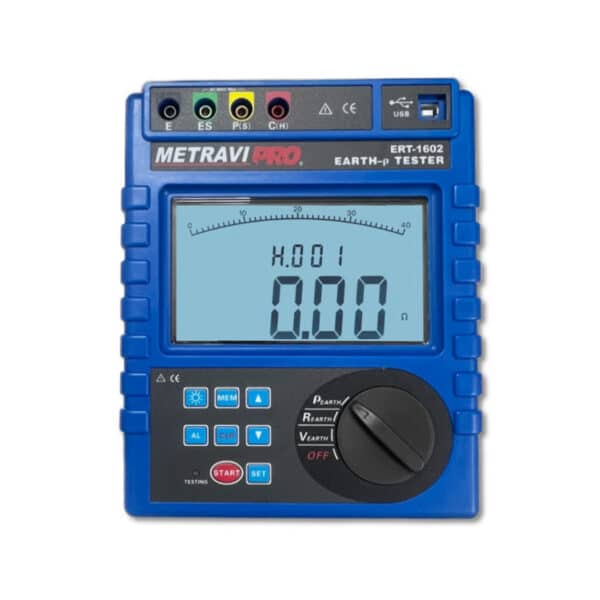

PRO ERT-1602 Earth Resistance and Soil Resistivity Tester
₹48,600.00 including GST @18%
Precision 4-wire, 3-wire and simple 2-wire measurement for Earth Resistance, Soil Resistivity, Earth Voltage and AC Voltage. Complete kit in hard carrying case.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description

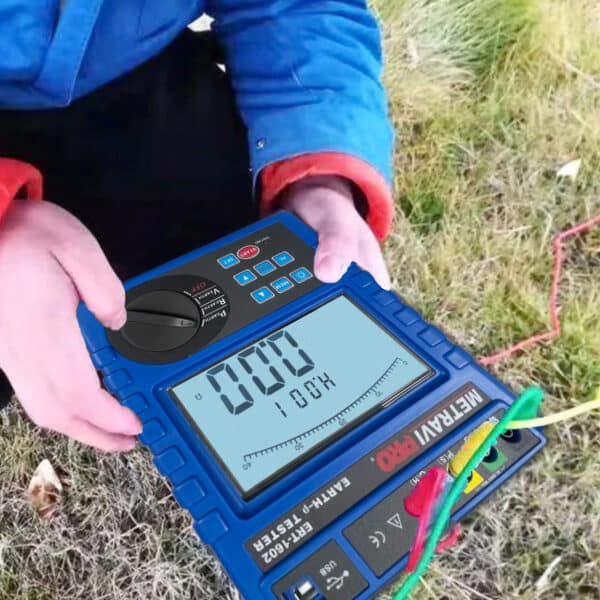

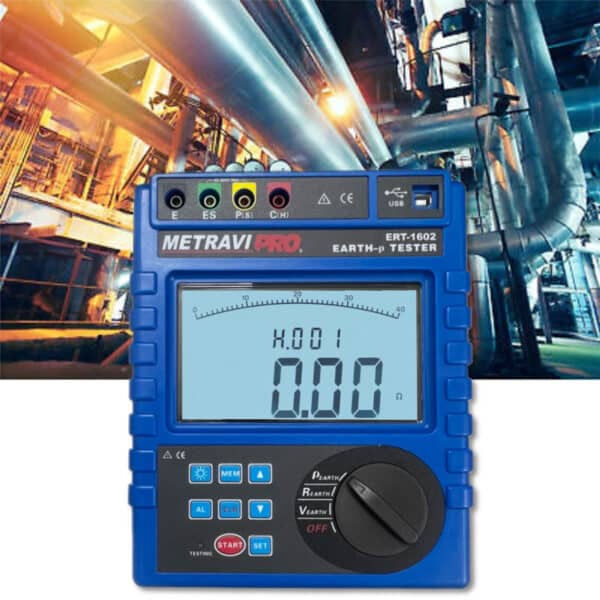

The Pro ERT-1602 features precision 4-wire, 3-wire and simple 2-wire measurement methods to measure Earth Resistance, Soil Resistivity, Earth Voltage and AC Voltage. Unlike other Earth Testers, you do not need to calculate Soil Resistivity as this instrument gives you the measurement directly.
This Earth Resistance Soil Resistivity Tester comprises of host machine, monitoring software, test wires, auxiliary ground rod and communication cable.
It can store up to 300 sets of data simultaneously, through the monitoring software to document and analyse historical data.
It also offers online real-time monitoring functions, dynamic display, alarm indication with historical data reading, accessing, saving, reporting, printing and other functions.
Additional information
| Brand | |
|---|---|
| Model | |
| Warranty | |
| Colour | |
| Display | |
| Data Hold | |
| Auto Power Off | |
| Overload Indication | Overload Indication |
| PC Interface | |
| Alarm | Audio Alarm, Visual Alarm |
| Data Logging | |
| Bargraph | Bargraph |
| Short-circuit Current | 20mA AC |
| Open-circuit Test Voltage | 40V AC |
| Line Voltage | 600V AC |
| Low Battery Indication | |
| Power Source | Battery Operated |
| Battery Type | Alkaline, R14S 1.5 (Type – C) |
| No of Batteries | 6 |
| Earth Resistance Range | 0Ω to 30kΩ |
| Earth Voltage Range | 0V to 600V AC |
| Resolution | |
| Accuracy | ±2% |
| Soil Resistivity | 0Ωm to 9000KΩm |
| Method of Measurement | 2-Wire Method, 3-Wire Method, 4-Wire Method |
| Certifications | CAT III 300V, CAT IV 150V, IEC 61326, IEC-61010-031, IEC-61010-1, IEC-61557-1, IEC-61557-5 |
| Measuring Parameters | Earth Resistance, Earth Voltage, Soil Resistivity, Voltage to Earth |
| Test Frequency | 128Hz / 111Hz / 105Hz / 94Hz (AFC) |
| Short-circuit Test Current | AC 20mA max |
| Data Storage | 300 groups |
| Overload Protection | Overload Protection |
| Interface | USB device |
| Working Current | Measurement:100mA (Backlight shut off), Power on: 45mA (backlight shut off at 25mA), System Standby: around 20mA (Backlight shut off) |
| Working Temperature | -10°C-40°C |
| Working Humidity | below 80%RH |
| Storage Temperature Range | |
| Insulation Resistance Range | Over 20MΩ (between circuit and enclosure at 500V) |
| Ingress Protection | IP54 |
| Spikes Height | 23 cm |
- Import FFT (fast Fourier transform) technology, AFC (automatic frequency control) technology, with unique anti-interference ability and environmental adaptability ensure high repeated test consistency.
- The large LCD display, white backlight and bar graph make the readings clear at a glance.
- Features USB interface with data upload function; storage data can be uploaded to the computer and can be saved and printed.
- Audio-visual Alarm and Overload Protection.
- Earth Resistance: Rated current change-pole method, measurement current 20mA Max
- Soil Resistivity: Wenner 4-pole measurement; Voltage to Earth: Average rectifier
- Earth Voltage: Average rectification (between P(S)-ES)
- Test Frequency: 128Hz / 111Hz / 105Hz / 94Hz (AFC)
- Short-circuit Test
- Open-circuit Test Voltage
- Interference Test
- Auxiliary Earth Test
- Line Voltage
- Data Hold
- Overflow Indication
- USB Interface
- Alarm function
- Auto Power-off
- Overload Protection
- Measurement Ranges:
|
Earth Resistance(R) |
Range: 0.00Ω~30.00Ω |
Resolution: 0.01Ω |
Accuracy: ±2%rdg±3dgt |
|
Range: 30.0Ω~300.0Ω |
Resolution: 0.1Ω |
Accuracy :±2%rdg±3dgt |
|
|
Range: 300Ω~3000Ω |
Resolution: 1Ω |
Accuracy: ±2%rdg±3dgt |
|
|
Range: 3.00kΩ~30.00kΩ |
Resolution: 10Ω |
Accuracy: ±4%rdg±3dgt |
|
|
Earth Voltage |
Range: 0.0~600V AC |
Resolution: 0.1V |
Accuracy: ±2%rdg±3dgt |
|
Soil Resistivity (ρ) (ρ=2πaR, a:1 m-100m, π=3.14) |
Range: 0.00Ωm~99.99Ωm |
Resolution: 0.01Ωm |
According to the precision of R |
|
Range: 100.0Ωm~999.9Ωm |
Resolution: 0.1Ωm |
||
|
Range: 1000Ωm~9999Ωm |
Resolution: 1Ωm |
||
|
Range: 10.00kΩm~99.99kΩm |
Resolution: 10Ωm |
||
|
Range: 100.0kΩm~999.9kΩm |
Resolution: 100Ωm |
||
|
Range: 1000kΩm~9000kΩm |
Resolution: 1kΩm |
- Safety Standards: IEC61010-1 (CAT III 300V, CAT IV 150V, Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004

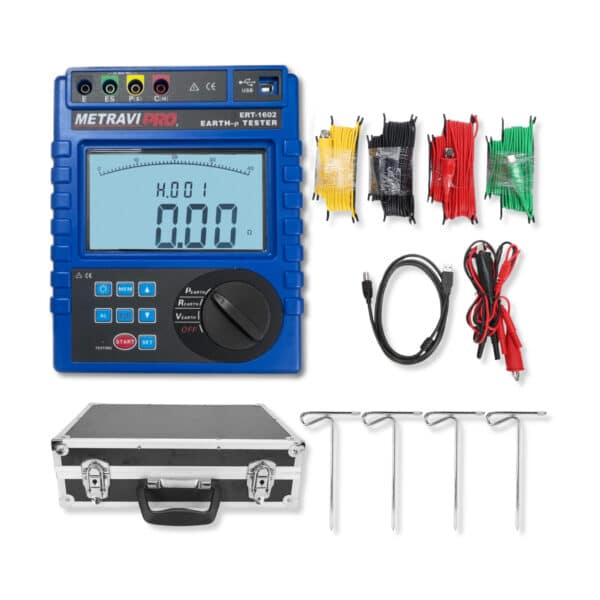

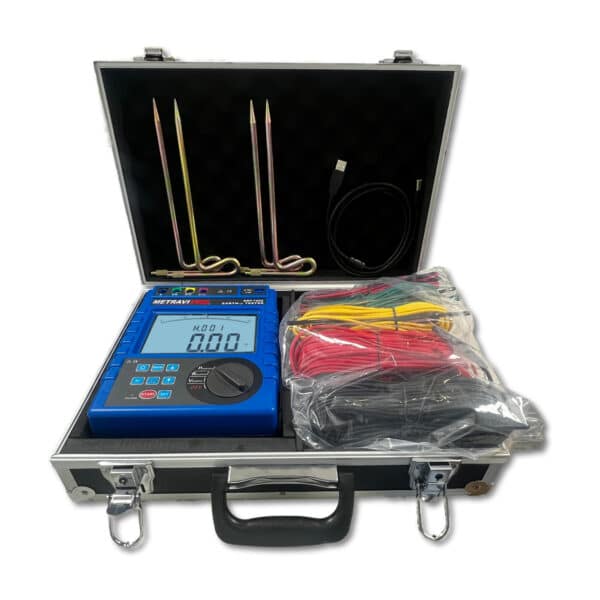

- Accessories: Meter, 4 Earth Rods, 4 Standard Test Wires (Red 20m; Yellow: 10m; Green: 10m; Black:20m), 2 Simple Test Wires (Red 1.6m; Black 1.6m), Special USB Communication Cable, Software CD, Hard Carrying Case, User Manual
