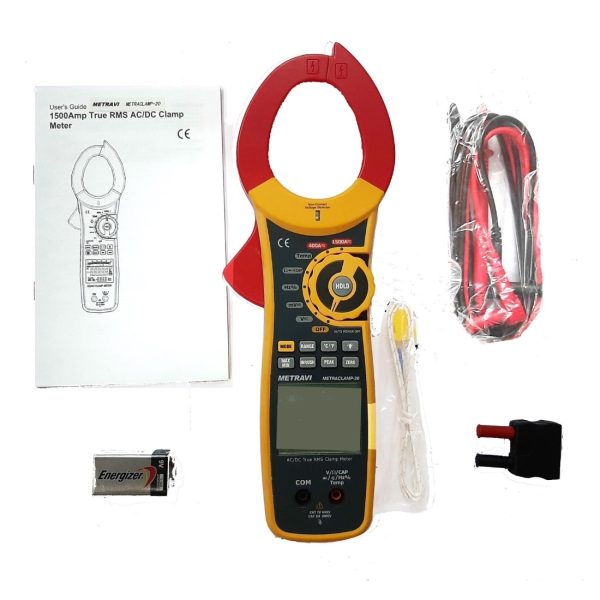

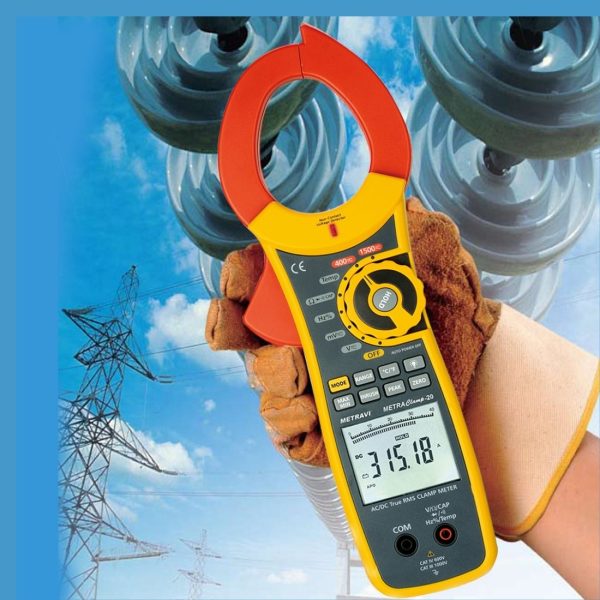

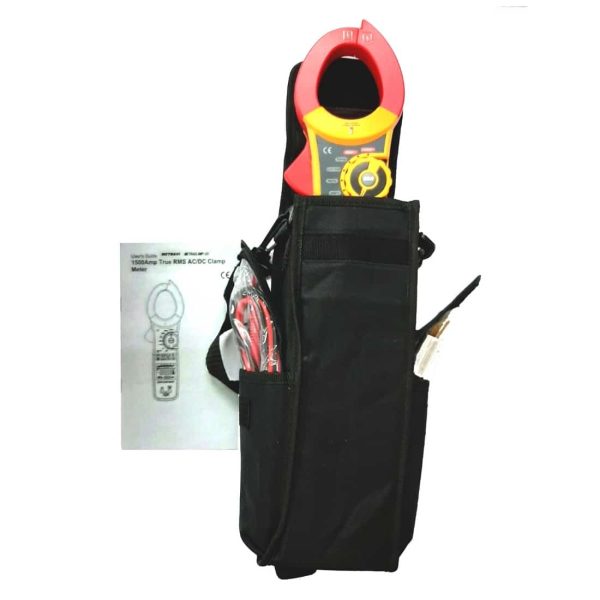

METRACLAMP-20 Digital TRMS AC/DC Clamp Meter
₹17,415.00 including GST @18%
4-3/4 Digits, 40,000 Counts, Backlit, T-RMS, Autoranging, 52mm Jaw Dia, Non Contact Voltage Detector, Fully Protected, AC/DC Voltage, AC/DC Current up to 1500A, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Diode and Continuity Test.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
4-3/4 Digits, 40,000 Counts, Backlit, T-RMS, Autoranging, 52mm Jaw Dia, Non Contact Voltage Detector, Fully Protected, AC/DC Voltage, AC/DC Current up to 1500A, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Diode and Continuity Test.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| T-RMS | |
| Colour | |
| Display | |
| Auto Ranging | Auto Ranging |
| Jaw Dia | |
| Auto Power Off | |
| Low Battery Indication | |
| Overload Indication | Overload Indication |
| Data Hold | |
| Peak Hold | Peak Hold |
| Inrush Current | Inrush Current |
| Max/Min/Avg/Dif | |
| NCV Detection | |
| Diode & Continuity | |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | |
| DC Voltage Accuracy | ±0.1% |
| AC Voltage Range | |
| AC Current Range | |
| DC Current Range | |
| DC Current Accuracy | ±2.5% |
| Resistance Range | |
| Resistance Accuracy | ±0.5% |
| Capacitance Range | |
| Frequency Range | |
| Frequency Accuracy | ±0.3% |
| Duty Cycle Range | 10% to 95% |
| Temperature Range | |
| Temperature Accuracy | |
| Certifications |
- Provides higher Resolution and Accuracy
- Fully protected DC/AC T-RMS Clamp Meter
- 500V AC/DC Protection on all ranges
- 1000V AC/DC Protection in Voltage range.
- Clamp Jaw Dia 52 mm
- Low Battery and Over-range indication
- Data Hold & Peak Hold
- In-Rush Current Measurement
- Max / Min Record Facility
- Double Moulded Injection Body
- Auto Power Off
- In-Built Non Contact Voltage Detection
- DC Voltage 0 – 400m/4/40/400/1000V.
- Accuracy ±0.1%
- AC Voltage 0 – 400m/4/40/400/750V T-RMS.
- Accuracy ±0.8%
- AC Current 0 – 400/1500A T-RMS.
- Accuracy ±2.5%
- DC Current 0 – 400/1500A
- Accuracy ±3%
- Resistance 0 – 400/4k/40k/400k/4M/40MΩ
- Accuracy ±0.5%
- Temperature -100°C to 1000°C / -148°F to 1832°F
View Catalogue: Metravi METRACLAMP-20 Digital AC T-RMS DC Clamp Meter Catalogue
