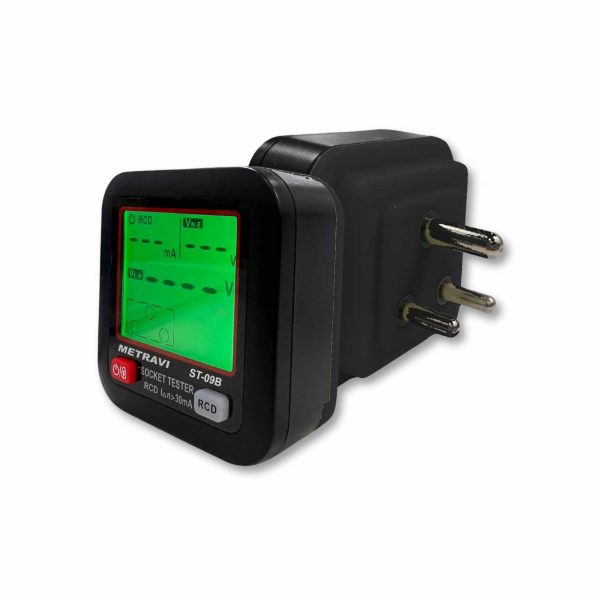

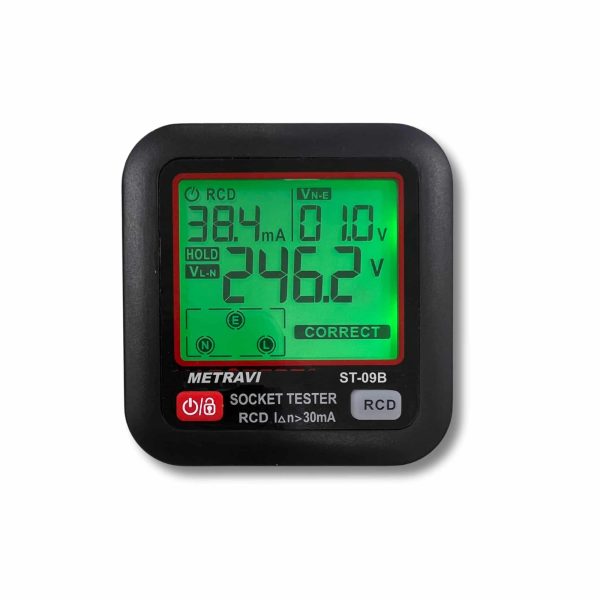

ST-09B Socket Polarity and Earth Leakage Tester (2024 Model)
₹1,053.00 including GST @18%
NEW MODEL!!
Electrical Socket Tester with RCD/GFCI Test Button & large, backlit LCD display. Socket sequence test. Three hole socket Line Neutral Earth (L-N-E) detection. Phase Voltage (L_N) measurement. Leakage Voltage (N_E) measurement. RCD Test. Change in the display back-lit colour indicates problems. Automatic shutdown. Data Hold.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (1)
Description
NEW MODEL LAUNCH!!
The new Metravi ST-09B Socket Polarity and Earth Leakage Tester is an advanced, electrical socket tester for rapidly detecting whether the socket’s wire connection is correct or not. With RCD test function, it is also a practical and safe device.
Widely used for electric maintenance testing, office sockets testing, power strips testing and wall sockets testing in schools, laboratories, factories, etc. It is a conveniennt and smart meter and saves time in testing problems with sockets.

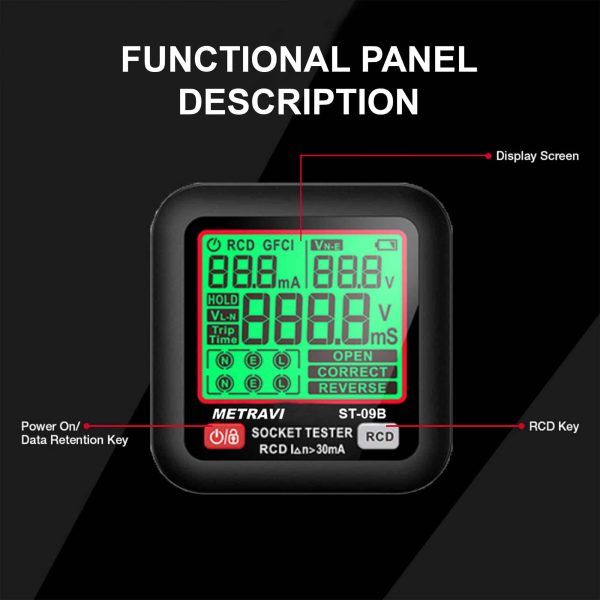

Designed with a RCD/GFCI Test Button for help with correct wiring and RCD/GFCI trip function. It can test the protection system to ensure electrical safety. Perfect tool for eliminating the risk of electric shocks.

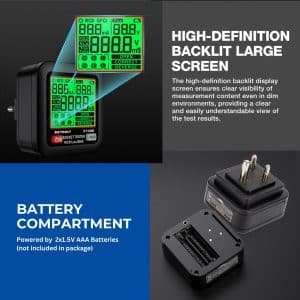

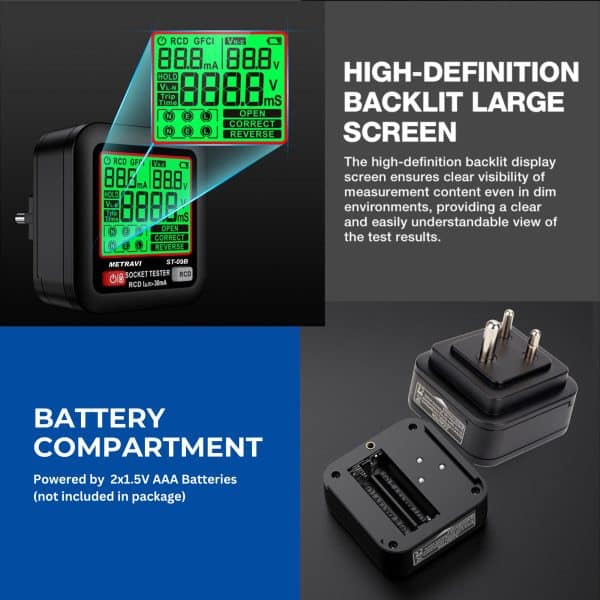

The pocket-size, portable design of the Metravi ST-09B Socket Polarity and Earth Leakage Tester makes it compact, light weight and convenient to use and features a large, backlit LCD display. It is easy to use and helps detect whether neutral, live and earth wire is connected correctly and indicates which wire is missing with clear light patterns.
Need to check the wiring of the house and check the polarity of the socket connection? Need to test leakage tripping? Try the new Metravi ST-09B Socket Polarity and Earth Leakage Tester.
Features:

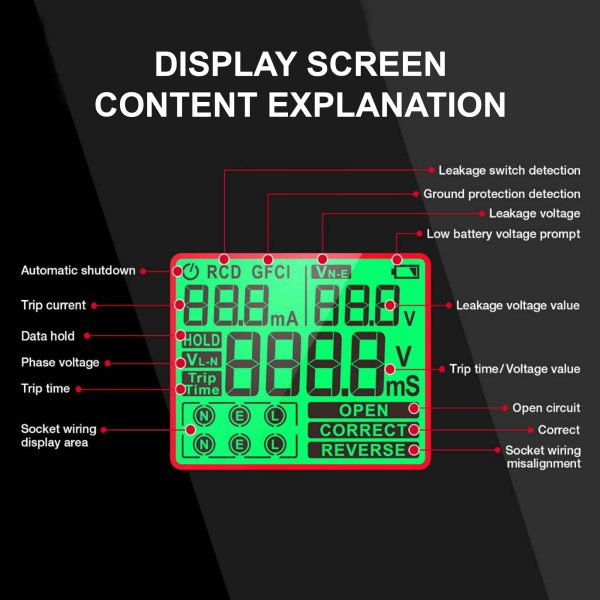

- Large, back-lit, high-definition display
- Socket sequence test
- Three hole socket Line Neutral Earth (L-N-E) detection
- Phase Voltage (L_N) measurement
- Leakage Voltage (N_E) measurement

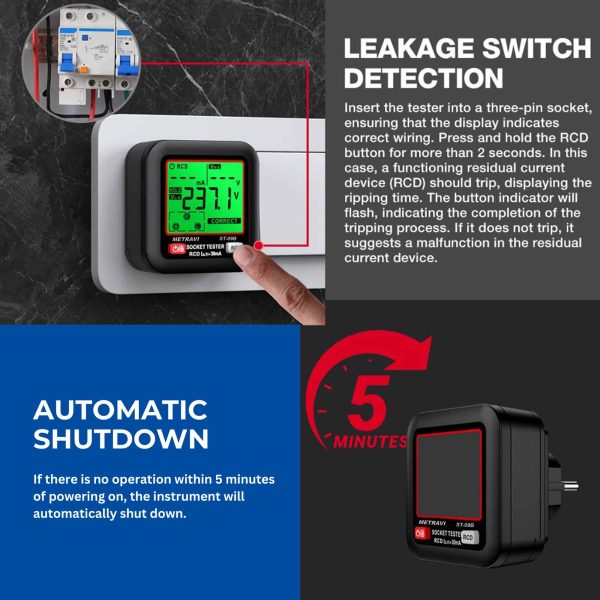

- RCD Test

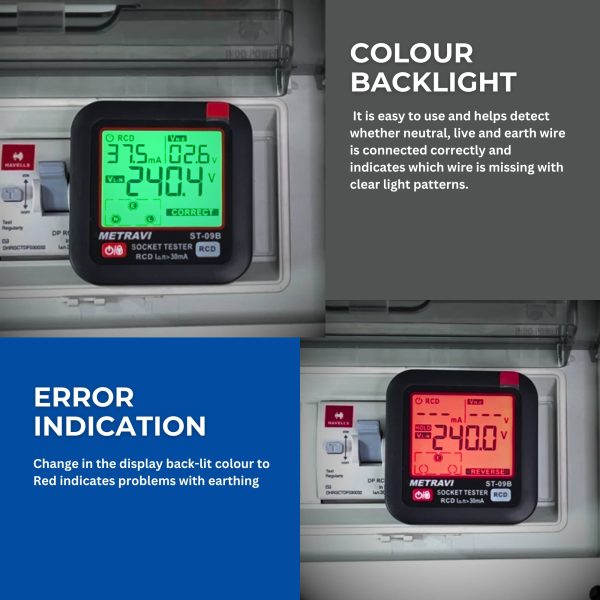

- Change in the display back-lit colour indicates problems
- Automatic shutdown
- Data Hold
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Leakage voltage | 0~99V/45~65Hz |
| Leakage voltage Accuracy | ± (2.0%+2) |
| Phase Voltage | 30~260V/45~65Hz |
| Phase Voltage Accuracy | ± (3.0%+2) |
| Trip-time | 10-1000ms |
| Trip-time Accuracy | ± (2.0%+4) |
| RCD Test | >30mA |
| Data Hold | Automatically locks the data after three seconds of plugging into the socket |
| Weight | 103 gms |

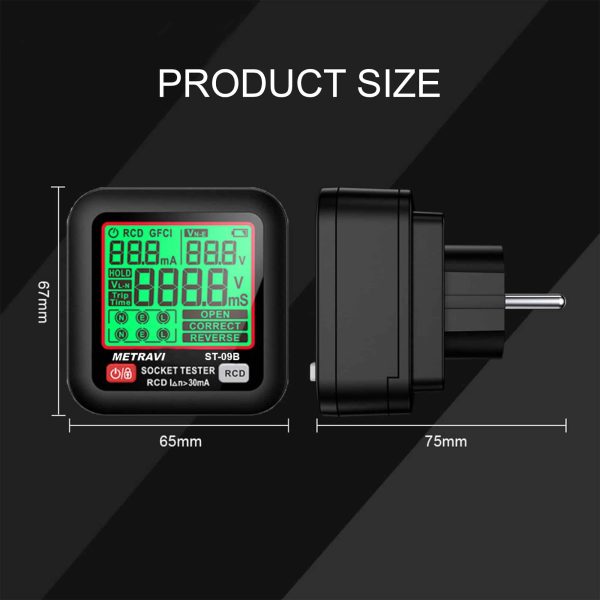

| Dimensions | 67 x 65 x75 mm |
| Safety | |
| Power Supply | 2 x 1.5 AA Alkaline Batteries |
| GFCI Test | Available |
| Socket Connection Test | Available |
| Socket Sequence Test | Available |
- Display: High definition, large, back-lit LCD
- Phase voltage：30~260V/45~65Hz
- Accuracy：± (3.0%+2)
- Leakage voltage：0~99V/45~65Hz
- Accuracy：± (2.0%+2)
- Trip-time：10-1000ms
- Accuracy：± (2.0%+4)
- GFCI Test
- RCD Test: >30mA
- Data hold
- Display of RCD trigger current
- Socket Connection Test
- Socket Sequence Test
- Change in the display back-lit colour indicates problems
- Auto Shutdown

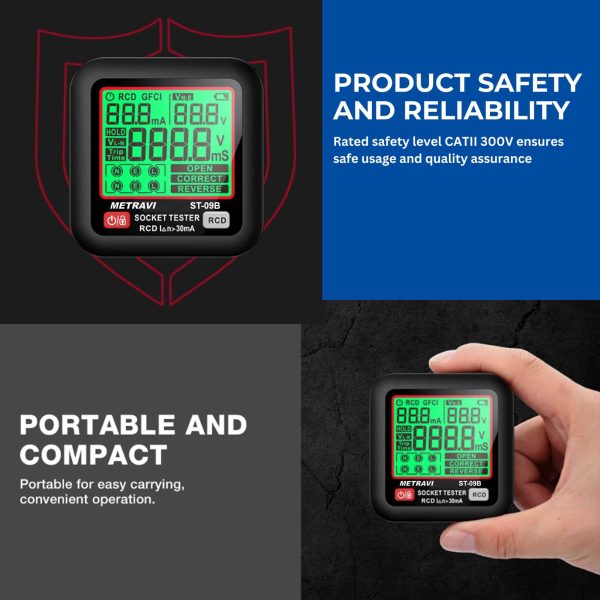

- Safety: EN61010-1, -2-030, EN61326-1, CAT II 300V
- Power Supply: 2 x 1.5 AA Alkaline Batteries (not included)
