PRO ETS+ Smart Electrical Tester
₹12,150.00 including GST @18%
NEW LAUNCH!!
The Swiss army knife for electricians. Only tester measuring DC Current via Fork Jaw. 4 digit backlit display. Fork Opening 16mm. Up to 1500V with LED light alarm & readings. 0-200A AC/DC Current measurement. Single Pole Phase Test. Phase Rotation Test. Resistance, Frequency, Continuity & Diode test, Cable Break test using NCV, Duty Cycle, Self Test. Flashlight, Auto Power-off, Test Leads with storage clips. CAT IV 600V, CAT III 1000V, IP64 protection.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!

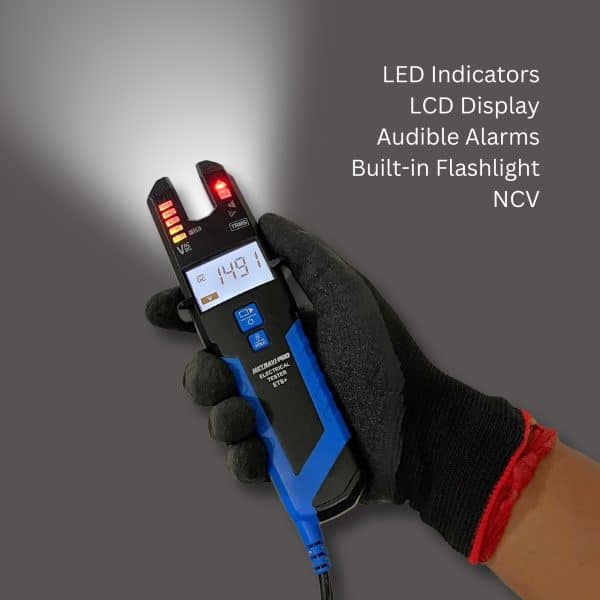

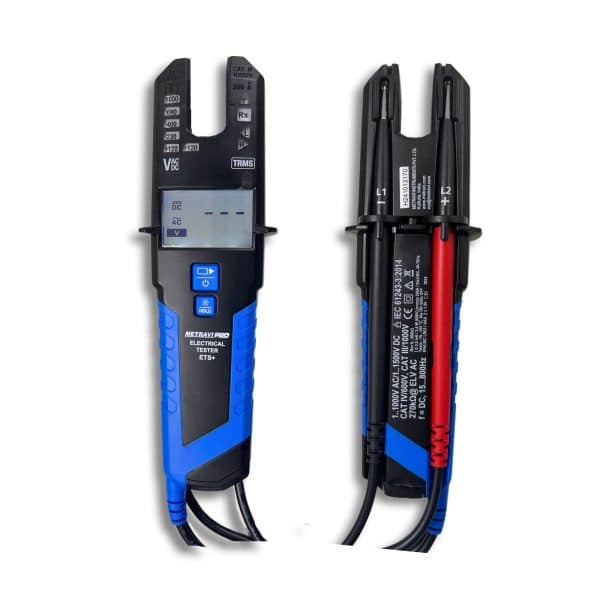

The Metravi PRO ETS+ Smart Electrical Tester is everything that the electrician needs on the job site, in a size that fit even in cargo pant pockets.
It is a professional voltage tester with LED chain, certified according to EN-61234, and the only Tester in the world that also allows you to measure DC current through the open jaw!*
It is an Universally applicable tester for Voltage, Current, Continuity and Rotary Field testing with various additional features.
The Metravi PRO ETS+ Smart Electrical Tester is made in GERMANY according to the latest safety regulations and guarantees safe and reliable working. It complies with the standards for two pole voltage testers, EN61243-3:2014.
Features & Functions:
- Designed to meet international safety standards, EN61243-3:2014
- Measurement category CAT IV 600V and CAT III 1000V
- T-RMS Measurements
- Voltage test up to 1000V AC and DC with LEDs
- Current test up to 200A AC/DC
- Voltage test up to 1000V AC and up to 1500V DC with LCD
- Open Jaw Size 16mm
- Impact and shock proof due the robust design with IP64 protection
- Cable break test using Non-contact Voltage detection (NCV)
- Polarity indication
- Single-pole Phase test
- Phase Rotation test
- Continuity & Diode tests
- Resistance measurement
- Frequency measurement
- Buzzer Alarm
- Auto-power ON / OFF
- Built-in Flashlight
Additional information
| Colour | |
|---|---|
| Warranty | |
| Brand | |
| Model |
- Fork Jaw Opening: 16mm
- Display: 4 digit 7 segment Backlit LCD
- LED Display Indication: For Voltage, Polarity indication, Single pole, Continuity and Rotary Field
- T-RMS Measurements
- Voltage Indication: Buzzer & Vibration if Voltage is higher than 50V AC or 120V DC
- Voltage Range : 0 – 1000V AC (15-800Hz); 0 -1500V DC (±)
- LED Nominal Voltage : 120/230/400/690/1000V
- LED Tolerance : EN 61243-3
- ELV Indication LED : >50V AC; < 120V DC
- Response Time : <1s at 100% for each nominal value
- LCD Range : 0 – 1000V AC (15-800Hz), 0 -1500V DC (±0.1V)
- LCD Resolution : 0.1V (1- 29.9V), 1V (30 – 1500V)
- LCD Accuracy : ±3% ±1.5 V (1- 29.9V), ±3% ±3dgt (30 – 1500V)
- LCD Over-range Indication : “OL”
- Current Test : 0.1- 200A AC/DC (+/-3%+5dgt), Resolution 0.1A, Frequency 45 – 65Hz
- Safety Current : Is <3.5mA at 1000V AC; <6mA at 1500V DC
- Measurement Duty : 30s ON, 240 s OFF
- Internal Battery Consumption : Approx. 120mA
- Single-Pole Phase Test Voltage Range : 170 – 1000V phase-to-phase
- Phase Rotation Test : AC 40 – 70Hz
- Continuity Test : 0 – 500Ω + 50
- Resistance Measurement : 0 – 100 kΩ; Accuracy: ±5% ±10dgt @25°C; Resolution: 1Ω (1-2000Ω), 1kΩ (2-100 kΩ)
- Frequency Measurement : 1 – 800Hz ±5% ±5dgt; Resolution: 1Hz
- NCV Test : 100 – 1000V AC (50/60 Hz)
- Data Hold
- Zero function
- Battery : 3V (IEC LR03 1.5 V x 2)
- Standards : EN/IEC 61243-3:2014, CAT IV 600V, CAT III 1000V
- Protection : IP64 Dust & Splash Proof
- Auto-power ON / OFF
- Built-in Flashlight

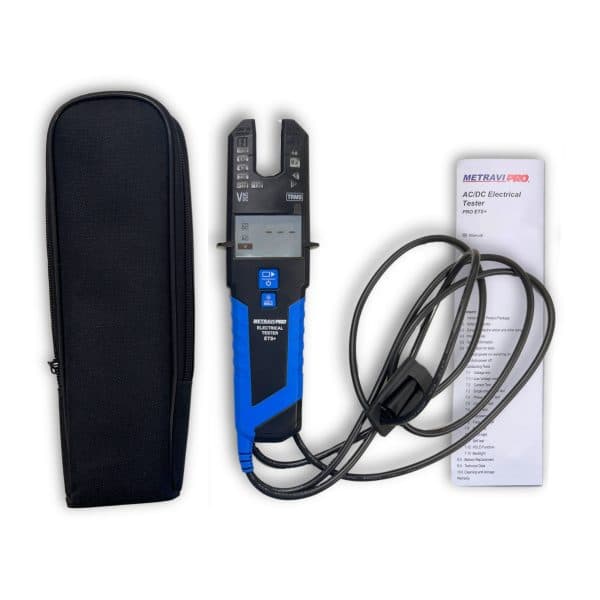

- Accessories: 1 x Probe-tip Protection, 2 x GS 38 Cap, 2 x 4mm Tip Extension, 2 x AAA 1.5V Battery, 1 x User Manual
