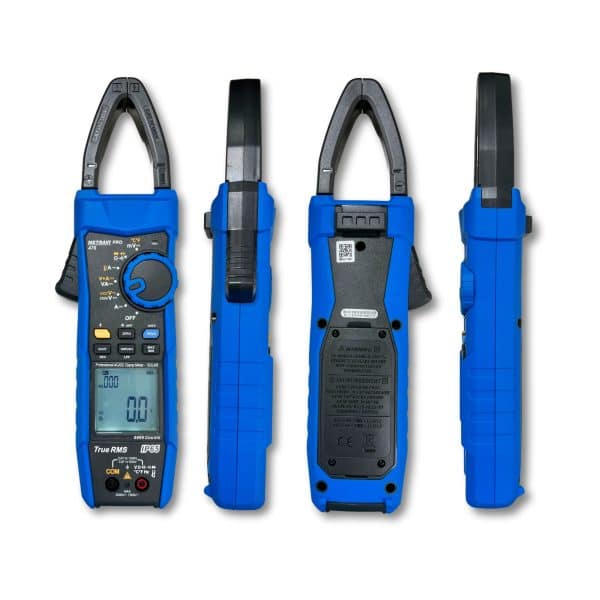

PRO 476 T-RMS AC/DC Clamp Meter
₹36,450.00 including GST @18%
NEW LAUNCH!!
9999 digits, 35mm Ultra-thin Jaws, 2500VDC, 1500VAC, 1000AAC, 1000ADC & DC Power 2000kW (using external flexible clamp), Low-pass Filter, Inrush Current, Peak Value, Resistance, Circuit Continuity, Diodes, Capacitance, Temperature. Data Logging, Solar Panel Polarity indication, Audible & Visual Alarms, Bluetooth with free App. CAT III 1500V/ CAT IV 600V, IP65.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!
The Metravi PRO 476 T-RMS AC/DC Clamp Meter is an advanced device, especially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features.
With its automatic range selection, T-RMS measurements and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC Voltage and Current, Low-pass Filtered Voltage/Current, Surge Current, Peak Current, DC Power (using an external flexible clamp head), Resistance, Circuit Continuity, Diodes, Capacitance, and Temperature.
The Metravi PRO 476 T-RMS AC/DC Clamp Meter’s versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterrupted power supplies (UPS), and large motors.

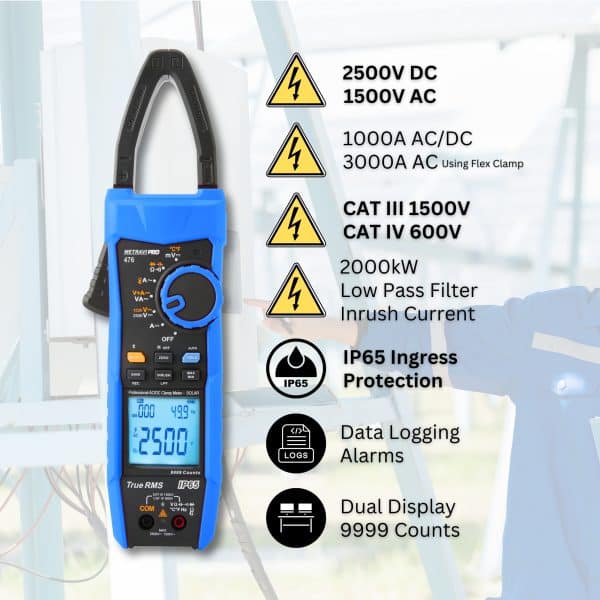

Features:
- Measure 2500V DC, 1000A DC & DC Power 2000kW
- Measure 1500V AC, 1000A AC
- External Flex Clamp (optional) can measure up to 3000A AC
- Low Pass Filter
- AC Inrush Current & Peak Value (PEAK) measurement
- Dual Display to show Voltage/Frequency or Current/Frequency or DC Voltage/DC Current or DC Power/DC Current on the same screen
- Temperature measurement (contact K-type)
- Data Logging
- 35mm Ultra-thin Jaws – ideal for inverter or combiner box
- Solar Panel Polarity indication: when <-10 DCV
- Audible & Visual Alarm
- Auto backlight & Auto power-off
- Certifications: CE, RoHS, cETLus

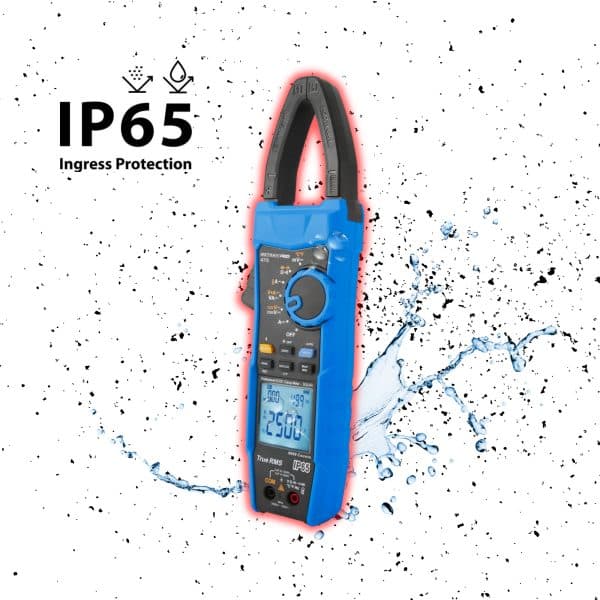

- IP65 Protection makes it ideal for outdoor use, especially for Solar Arrays, Wind Energy Systems, etc.
- Safety rating: CAT III 1500V/ CAT IV 600V
Additional information
| Brand | |
|---|---|
| Model | |
| Colour | |
| Auto Power Off | |
| Safety | |
| Warranty | |
| Display | |
| Power Supply | 2 x 1.5V AA Batteries |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 2 |
| DC Voltage Range | |
| DC Voltage Resolution | 0.1mV/0.1V/1V |
| DC Voltage Accuracy | ±(1.0%+5) |
| DC Current Resolution | 0.1A |
| DC Current Accuracy | ±(2.0%+5) |
| DC Power | 999.9kVA/2500kVA |
| DC Power Resolution | 0.1kVA/1kVA |
| DC Power Accuracy | ±(2.0%+20) |
| Flex Current Sensor | 30.00A/300.0A/3000A |
| Flex Current Sensor Resolution | 0.01A/ 0.1A/1A |
| Flex Current Sensor Accuracy | ±(3.0%+5) |
| Flex Current Sensor LPF | 30.00A/300.0A/3000A |
| Flex Current Sensor LPF Accuracy | ±(4.0%+9) (45Hz~100Hz) |
| Flex Current Sensor LPF Resolution | 0.01A/ 0.1A/ 1A |
| Resistance Range | |
| Resistance Resolution | 0.1Ω/Ω 0.001kΩ/0.01kΩ |
| Resistance Accuracy | ±(1.0%+5) |
| Diode Range | 3.0V |
| Diode Resolution | 0.001V |
| Capacitance Range | |
| Capacitance Resolution | 0.1μF/ 1μF |
| Temperature Range | |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±(1.0%+30) |
| Jaw Dia | |
| Certifications | |
| Low Battery Indication | |
| DC Current | 999.9A |
| Data Hold | |
| Diode & Continuity Test | Yes |
| Frequency Range | |
| Frequency Resolution | 0.1Hz |
| Over Range Indication | |
| T-RMS | |
| Relative Measurement | Yes |
| LED Indication | yes |
| Current frequency | 5Hz to 999.9Hz |
| Current Frequency Resolution | 0.1Hz |
| Voltage Frequency Resolution | 0.1Hz |
| Encloser | Double Insulation |
| Pollution Level | Level II |
| Bluetooth |
- Display: 9999 Counts Backlit Large LCD
- Dual Display to show Voltage/Frequency or Current/Frequency or DC Voltage/DC Current or DC Power/DC Current on the same screen
- Solar Panel Polarity Indication: Audible & Visual alarm when <-10V DC
- Low Pass Filter
- AC Inrush Current & Peak Value (PEAK) measurement
- True RMS measurements
- Jaw Opening: 35mm
- Overload Protection: 2500V DC/1500V AC; 1000A AC/DC
- TRMS AC Voltage: 0-999.9V/1500V
- Accuracy: ±(1.0%+5)
- DC Voltage: 0-999.9mV/999.9V/2500V
- Accuracy: ±(1.0%+5)
- TRMS AC Current: 0-999.9A
- Accuracy: ±(2.0%+5) (40Hz~100Hz); ±(2.5%+5) (100Hz~1000Hz)
- DC Current: 0-999.9A
- Accuracy: ±(2.0%+5)
- Flex Current: 0-30.00A/300.0/3000A (Flex Clamp Sensor available at extra cost)
- Accuracy: ±(3.0%+5)
- DC Power: 0-999.9kVA/2500kVA
- Accuracy: ±(2.0%+20)
- Resistance: 0-999.9Ω/9.999kΩ/99.99kΩ
- Accuracy: ±(1.0%+5)
- Capacitance: 0-100.0μF/1000μF
- Accuracy: ±(1.0%+5)
- Frequency: 0-5.0Hz/999.9Hz
- Accuracy: ±(0.5%+5)
- K-type Temperature: -40°C~400°C / -40°F~752°F
- Accuracy: ±1.0%
- Diode & Continuity Test
- Data Logging
- Audible & Visual Alarms
- Drop Proof: 1m
- Protection: IP65 makes it ideal for outdoor use, especially for Solar Arrays, Wind Energy Systems, etc.
- Certifications: CE, RoHS, cETLus
- Safety rating: CAT III 1500V/ CAT IV 600V
- Electromagnetic Capability: In an RF field of 1V/m2, total accuracy = specified accuracy + 5% of range. In RF filed > 1V/m2, there are no specifications
- Interface: Bluetooth
- Software: Free App* for iOS and Android enables remote control & monitoring
- Zero / REL Key
- Auto Power Off : After 15 mins of non-operation
- Overload Indication
- Low Battery Indication
- Power Supply: 2 x 1.5V AA Batteries
- Dimensions: 295 mm x 73 mm x 50 mm
- Weight: 540 gms
- Operating Environment: 0°-30°C, ≤ 80%RH; 30°-40°C, ≤ 75%RH; 40°-50°C, ≤ 45%RH
- Storage Environment: -20°C to 60°C, ≤ 80%RH
- Operating Altitude: 2000 m
View Catalogue: Metravi Pro 476 TRMS AC DC Clamp Meter Catalogue 1
