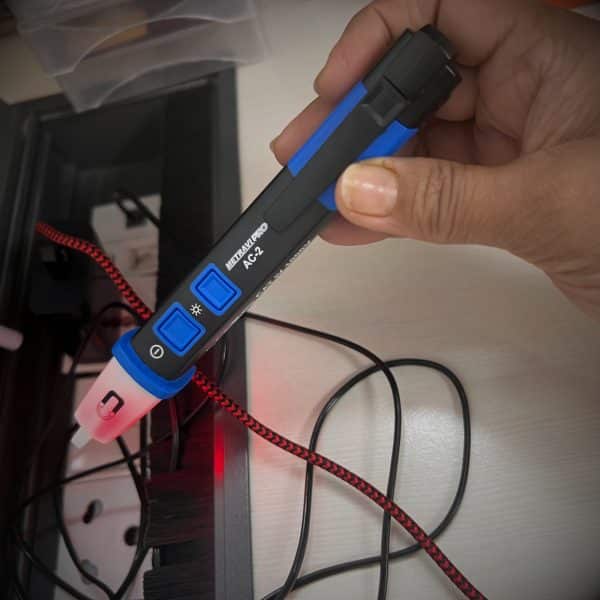

Metravi Pro AC-2 Non-contact Voltage Detector glows red and vibrates when it detects live voltage

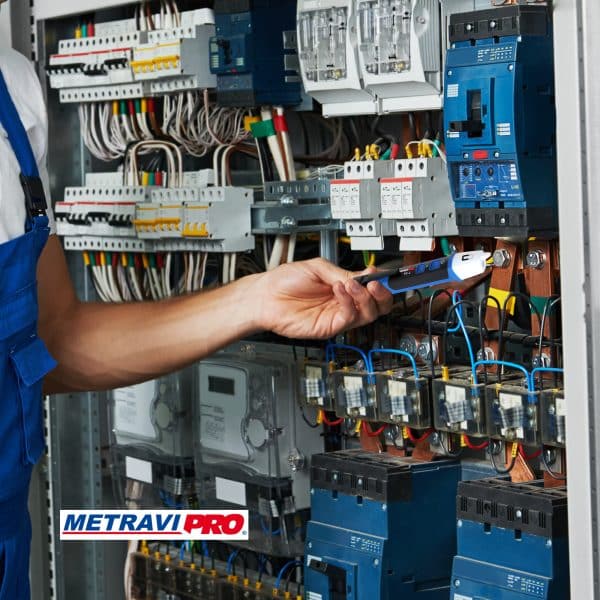

Metravi Pro AC-2 Non-contact Voltage Detector can measure upto 1000V

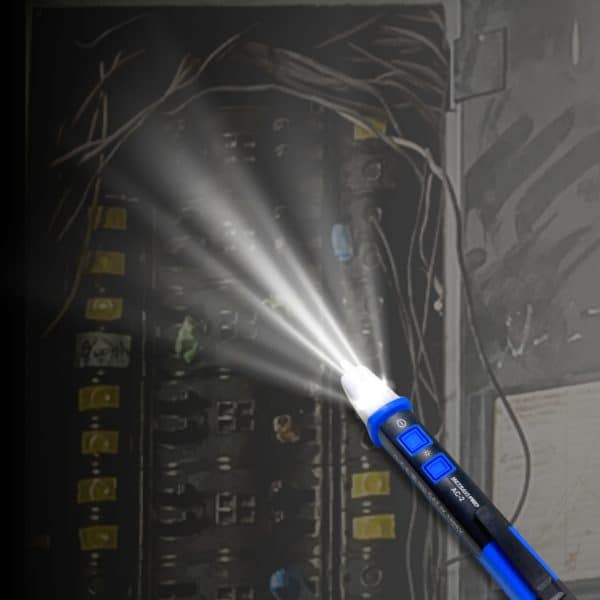

Metravi Pro AC-2 Non-contact Voltage Detector features a built-in flashlight

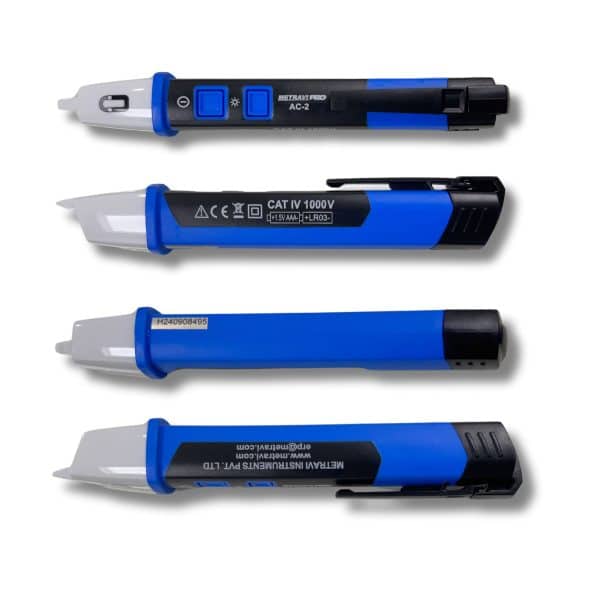

Metravi Pro AC-2 Non-contact Voltage Detector all four sides views

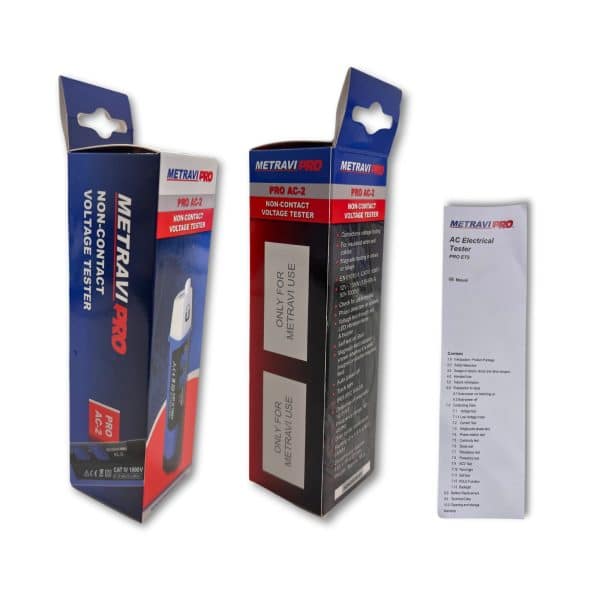

Metravi Pro AC-2 Non-contact Voltage Detector brand box and user manual
Metravi Pro AC-2 Non-Contact Voltage Meter
NEW
Metravi Pro AC-2 Non-contact Voltage Detector glows red and vibrates when it detected live voltage
Metravi Pro AC-2 Non-contact Voltage Detector glows red and vibrates when it detects live voltage
Metravi Pro AC-2 Non-contact Voltage Detector can measure upto 1000V
Metravi Pro AC-2 Non-contact Voltage Detector features a built-in flashlight
Metravi Pro AC-2 Non-contact Voltage Detector all four sides views
Metravi Pro AC-2 Non-contact Voltage Detector brand box and user manual
Metravi Pro AC-2 Non-Contact Voltage Meter

Pro AC-2 Non-contact Voltage Detector

Metravi ST-09B New Smart Socket Polarity Tester ST-09B Socket Polarity and Earth Leakage Tester (2024 Model)
Awaiting product image PRO IM-09 Solar Irradiance Meter
0 out of 5
( There are no reviews yet. )

₹2,295.00 including GST @18%

NEW LAUNCH!!
Non-contact Voltage Detector for 12V〜1000A AC in 2 ranges with LED and buzzer alarms and built in flashlight. Also has a non-contact Magnetic Field detector. CAT IV 1000V. IP65. Made in Germany.

Categories: , , ,
Compare

Description

NEW LAUNCH!!
The Metravi Pro AC-2 Non-contact Voltage Detector is developed and manufactured in Germany, is used for voltage testing of insulated wires and cables. Additionally, magnetic functions in valves or relays can be tested. No direct contact to the device under test (DUT) is required.

A 6-in-1 instrument for:

⚡️Non-contact Voltage Detection
⚡️Phase detection on Sockets
⚡️Non Contact Magnetic Field Detection
⚡️Determination of Static or Electro Magnetic Fields
⚡️Check for Cable Breaks
⚡️LED flash light to access Dark Areas

Features:

  • Designed to meet international safety standards EN 61010-1
  • ⁠Measurement Category CAT IV 1000V
  • ⁠Test 12V and 1000V (2 ranges: 12V-50V & 50V-1000V)
  • Voltage test through Red LED, vibration motor and buzzer
  • Power-on indication
  • Self test during power on
  • Low battery indication
  • Auto power-off
  • Built-in LED Flashlight
  • IP65 (IEC 60529) protection

Additional information

Model

,

Brand

Warranty

Colour

Flashlight

Voltage Detection Range

12V – 1000 V AC (2 ranges)
Frequency Range

Power Source

Battery Operated
Battery Type

Alkaline
Battery Size

AAA
No of Batteries

2
Low Battery Indication

Protection

IP 65
Display

Vibration

Magnetic Field

>2.5 mT
Current Consumption

Approx. 80mA
Dimensions

Approx. 155 x 25 x 23 mm
Weight

Approx. 55 g
Certifications

Dust & Water Proof

Contact or Non-contact Type

Non-contact Type
  • Display: Bright Red/Yellow LED
  • Certifications: EN 61010-1, CAT IV 1000V
  • Measuring Range:12V-50V  and 50V-1000V
  • Voltage test through Red LED, vibration motor and buzzer
  • Frequency Range: 40 – 400 Hz
  • Self test during power on
  • Low battery indication
  • Non-contact magnetic field testing
  • Detection of Magnetic Field: >2.5 mT; indication through Yellow LED, indicator shows whether it is static magnet field or electro-magnetic field
  • Auto power-off
  • Built-in LED Flashlight
  • Protection: IP65 (IEC 60529)
  • Power: Battery operated, 2 x 1.5 V LR03 (AAA)

View Catalogue: Metravi Pro AC-2 Non-contact Voltage Detector Catalogue Web
