PRO AI-1T Industrial Acoustic Imager with Thermal Imager
NEW LAUNCH!!
Industrial Acoustic Imager with Thermal Imager module for detecting/diagnosing gas leakage, partial discharge, featuring 128 MEMS microphone, with 7″ Touchscreen, Visual Camera for Photos & Videos, rated IP5X, Data Storage capabilities, removable Rechargeable Battery and USB Interface.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!
The Metravi Pro AI-1T Industrial Acoustic Imager with Thermal Imager is a standalone system for acoustic image measurements and signal analysis, including thermal imaging. No additional equipment is required for basic usage of these devices.
This rugged, versatile instrument can help to quickly and easily identify a variety of industrial conditions like electric faults and gas leaks. With pinpoint accuracy, the Acoustic Imager allows you to instantly “see” audible and ultrasonic noises that are hard to detect. With its built-in 128 microphone array, it helps you clearly see what you might have been missing otherwise.

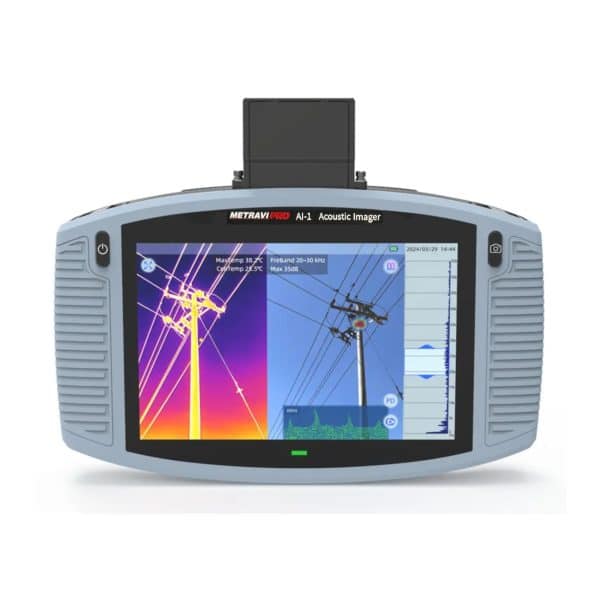

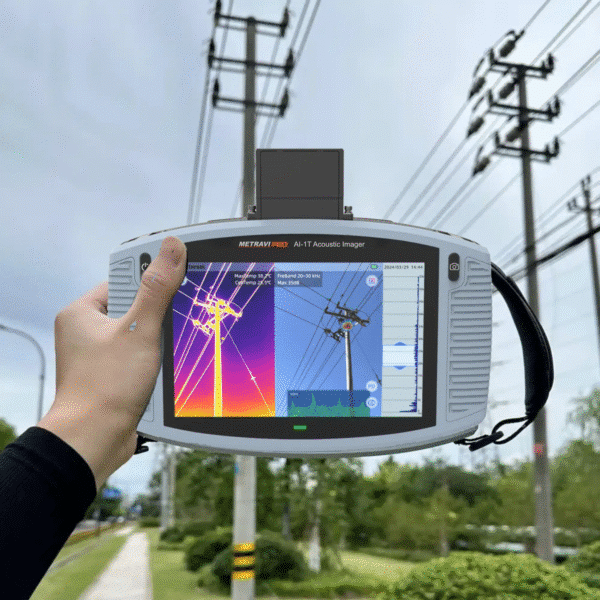

The device can change functions between Acoustic Imaging and Thermal Imaging easily, making maintenance diagnosis more comprehensive and efficient.

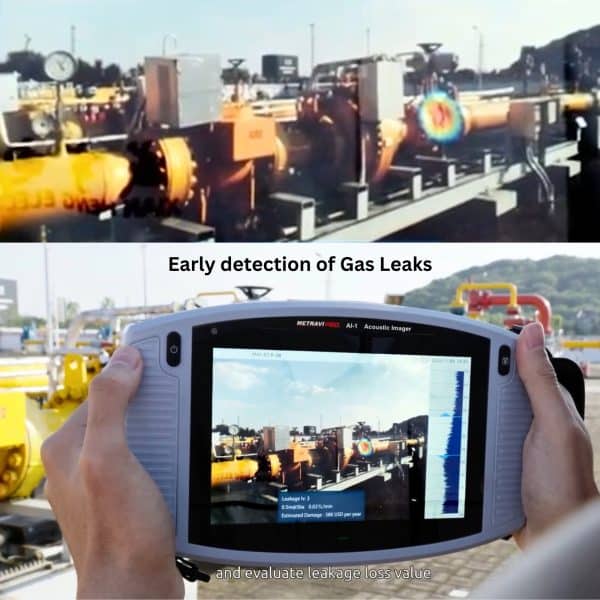

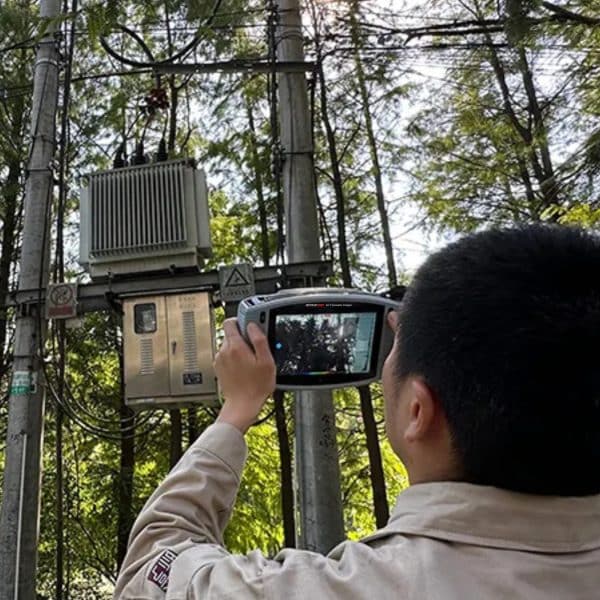

The Metravi Pro AI-1T Industrial Acoustic Imager with Thermal Imager can help you quickly detect possible pressurised gas leaks and vacuum leaks in noisy industrial sites; applied to power systems, it can help you quickly identify potential partial discharge fault points.
Features:

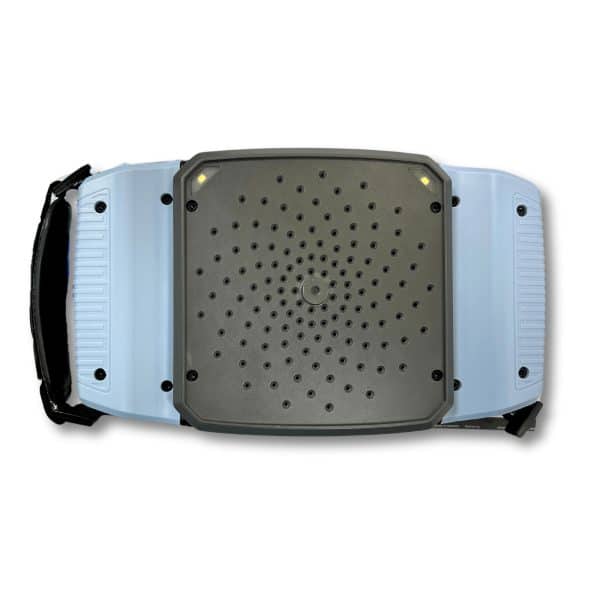

- 128 digital microphone array for real-time visualisation of sound
- 7 inch full colour touchscreen
- 1280×800 resolution
- Directional pickup function for accurate diagnosis
- Batteries are replaceable manually with PD fast charging
- Remote upgrades
- Type C port

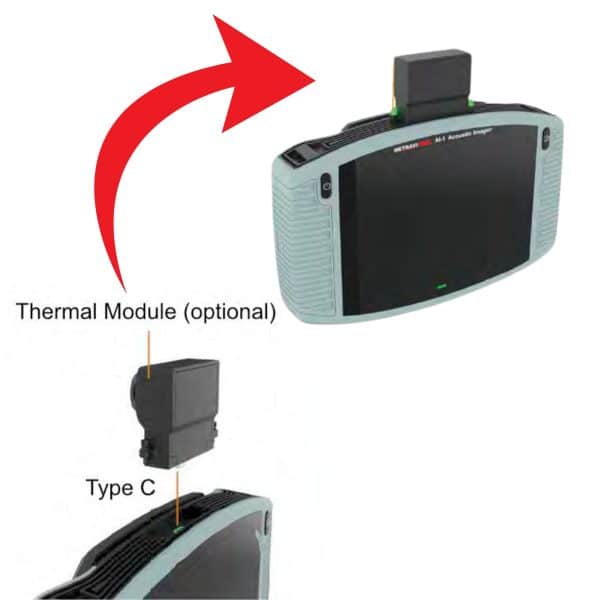

- With Thermal Imager module
- Supports photo mode, video mode, flexible recording of data at the scene of operation
- Supports high-capacity TF data storage card, test results can be quickly exported, and reported.
Additional information
| Model | |
|---|---|
| Brand | |
| Colour | |
| Warranty | |
| Frequency | 2kHz ~ 55kHz |
| Detecting Distance | — |
| Sound Pressure Range | 30dB – 120dB |
| Microphone | 128-channel MEMS |
| Leak Sensitivity | — |
| Display | |
| Built-in Digital Camera | 8MP, 62° FoV, 3.04mm |
| Video Frame Rate | 25 FPS |
| Playback Function | Yes |
| Internal Storage | 8GB (emergency) |
| External Storage | TF card up to 64GB |
| Interfaces | USB-C, 3.5mm |
| Battery | 3450mAh, 5hr usage |
| Charging System | PD fast charging, 16W |
| IP Rating | IP5X |
| Certifications | |
| Analysis Tools | — |
| Software | Yes |
| Accessories | Full kit incl. headphones, straps, 64GB TF |
- Display: 7″ 1280×800 Capacitative Touchscreen
- Video Frame Rate: 25fps
- Protection Grade: IP5X

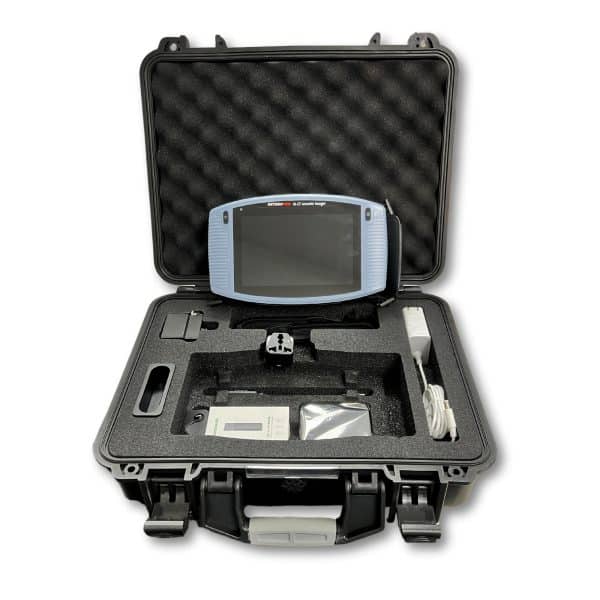

- Accessories: Hand Strap, Shoulder Strap, Charging Stand, Charger, DC to Type C Adaptor, 64GB TF Card, Battery x 2, Headphones, Card Reader, Protective Hard Carrying Case, User Manual, Test Report
- Camera
- Pixels: 8MP
- Viewing Angle: 62° x 48°
- Focal Length: Fixed 3.04mm
- Acoustical
- Microphone: 128-channel MEMS digital microphone
- Bandwidth: 2kHz ~ 55kHz, expandable
- Acoustic Image Viewing Angle: 62°
- Sound Pressure Range: 30dB ~ 120dB
- Thermal Module
- Infrared Resolution: 640 x 512 px
- Spectral Response: 8 ~ 14μm
- NETD: 25mK
- Communication & Storage
- Internal Storage: 8GB (only for emergency)
- External Storage: Expandable TF Card, supports upto 64GB
- USB Port: USB 3.0 Type-C
- Headphone Jack: 3.5mm
- Power Supply
- Battery: 3450mAh Replaceable, Rechargeable Lithium Ion (can be used upto 5 hours approx. depending on work environment & application)
- Charging Power: 16W
- Supports PD fast charging
