1813 ELCB RCD Tester
₹16,470.00 including GST @18%
ELCB/RCD Tester to test and measure the trip values of ELCB/RCD/RCCB -in trip time (expressed in ms) or -in trip current value (expressed in mA).
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (2)
Description
The Metravi 1813 ELCB RCD Tester has the main function of testing and measuring the trip values of ELCB/RCCB in trip time (expressed in ms) or -in trip current value (expressed in mA).
This enables 10mA / 30mA / 100mA / 300mA / 500mA and 1000mA differential circuit breakers to be tested irrespective of their type (normal or delayed). This comprehensive appliance can also be used to test the conformity of the network and the connection of the earthing conductor.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Wiring Check | Locking and Warning Signals |
| Operating Voltage | 230V (Ph/N) –10/+6%, 50/60 Hz |
| Trip Current Setting | 10/30/100/300/500mA, 1A |
| Trip Time Range | 10–2000ms (0.5x), 10–500ms (1x) |
| Ramp Test Mode | 0.4x–1.4x Nominal rated Current |
| Accuracy | (–2% +10% rdg) + 6 Digits |
| Safety Certifications | CAT III 600V, IEC 61010-1, IEC 61557-6 |
| Phase Angle | 0° and 180° |
| Power Supply | 6 x 1.5V ‘AA’ batteries |
| Data Hold | |
| Features Present | Double insulation, locking signals, 400V warning |
| Test Types | N or S type RDD test, AC or A detection |

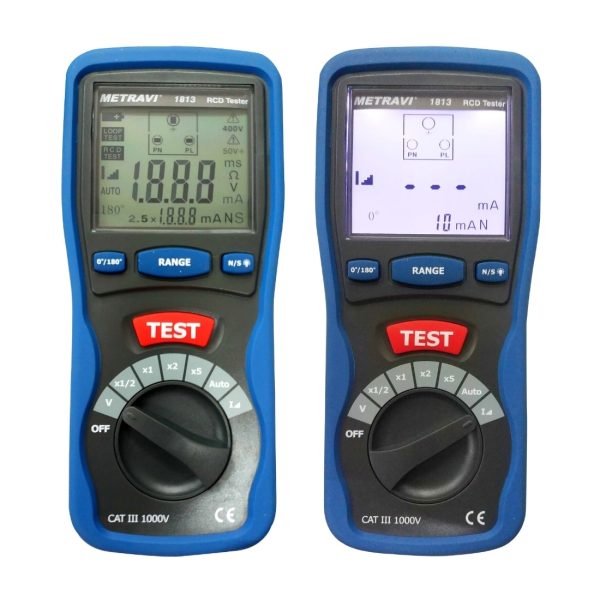

- Display: 3 digits Backlit LCD
- N or S (delayed) type RDD test, – AC or A (continuous component detection).
- Operates on TT neutral and TN system.
- Operating Voltage: 230V (Ph/N) – 10/+6% 50/60 Hz.
- Nominal Test Current: 10mA/30mA/100mA/300mA/500mA/1A
- Accuracy: (-2%+10%) + 6Digits
- Trip Time:
- 10-2000 ms at 0.5x
- 10-500 ms at 1x
- 10-150 ms at 2x
- 10-40 ms at 5x
- Ramp Test: 0.4x to 1.4 times nominal rated current
- Protection: Double insulation, IP40
- Certifications: CAT III 600V, IEC 61010-1. IEC 61557-6 NF. EN 61557-6. IEC 61236 (EMC).
- Locking and warning signals for 400V network voltage and contact potential >50V.
- Test and measure the trip values of RDDS (Residual Differential Devices): -in trip time (expressed in ms ) or -in trip current value (expressed in mA).
- Resistance to mechanical shock :1J

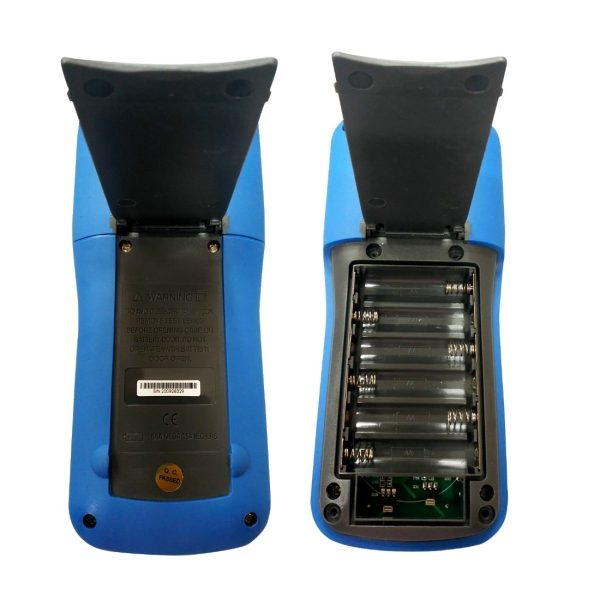

- Power Supply: 6 x 1.5V ‘AA’ batteries
View Catalogue: Metravi 1813 ELCB RCD Tester Catalogue Web
kishore60kumar –
Youtube video link for 1813 RCD tester usage
https://youtu.be/JojQzqZW8pE
kishore60kumar –
This guy is really a champion in testing various parameters of any RCCB. Portable, easy to operate, large display and accurate. I highly recommend this product.
