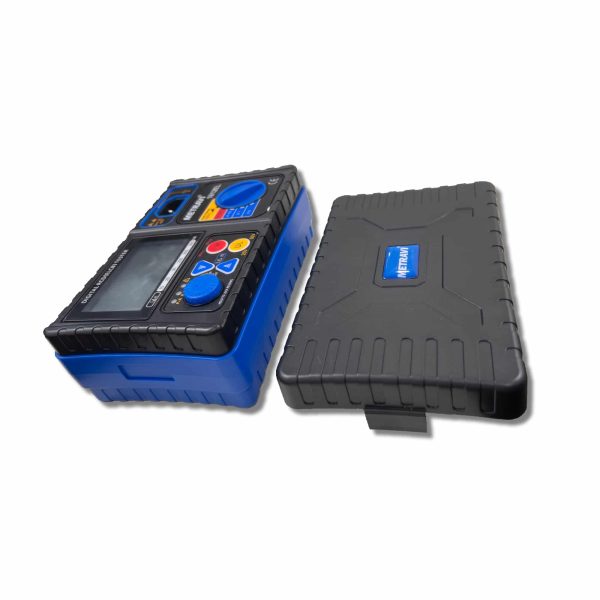

1812EL ELCB / RCD Tester
₹14,175.00 including GST @18%
Digital ELCB Tester with Current Rating up to 500mA, Trip Test, Fault Trip Time, DC Test, Auto Ramp Test, Self Powered, verifies wiring connection, 1000mS readout for testing latest ELCB.
Compare
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (1)
Description
Metravi 1812EL ELCB Tester in a new avatar with Current Rating up to 500mA, Trip Test, Fault Trip Time, DC Test, Auto Ramp Test, Self Powered, verifies wiring connection, 1000mS readout for testing latest ELCBs.
Additional information
| Model | |
|---|---|
| Colour | |
| Warranty | |
| Brand | |
| Display | |
| Test Types | Auto Ramp Test |
| Wiring Check | Three-LED Indication |
| Operating Voltage | 230V 50Hz +10% –15% |
| Trip Current Setting | 10/20/30/200/300/500mA |
| Trip Time Range | 200ms to 1000ms |
| Ramp Test Mode | Yes |
| Accuracy | ±0.6%rdg ±4dgt |
| Safety Certifications | IEC 61010-1 CAT III 300V, IEC 61557-1,5, 61010-2-31 |
| Phase Angle | 0° and 180° |
| Power Supply | Mains operated |
| Data Hold | |
| Features Present | **UL & UF Measurement, Voltage Overload/Overheat Alerts |
- Current Settings: 10/20/30/200/300/500mA
- Display: 3 1/2 digits, Backlit LCD
- Operating Voltage: 230V 50Hz +10% – 15%
- Grounding Resistance: Maximum 50Ω
- Accuracy of Trip Current: 0-10%
- Trip Time: 200ms to 1000ms
- DC Test
- Auto Ramp Test
- Uses Voltage supplied from electrical system for power, no battery required
- Displays measurement results & condition directly on LCD
- Automatic wiring check
- Voltage Overload indication
- Overheating indication & auto off
- Selective Phase Angle Auto Data Hold
- UL & UF measurement selection
- Safety: IEC/EN 61010-1, CATIII 300V, IEC/EN 61557-1, IEC/EN 61557-6
View Catalogue: Metravi 1812EL New ELCB RCD Tester Catalogue
kishore60kumar –
What I like: battery not reqd.
What I wish to have: 100 ma setting. For this I have to select 200 ma and keep the selector switch at 1/2 mode.
