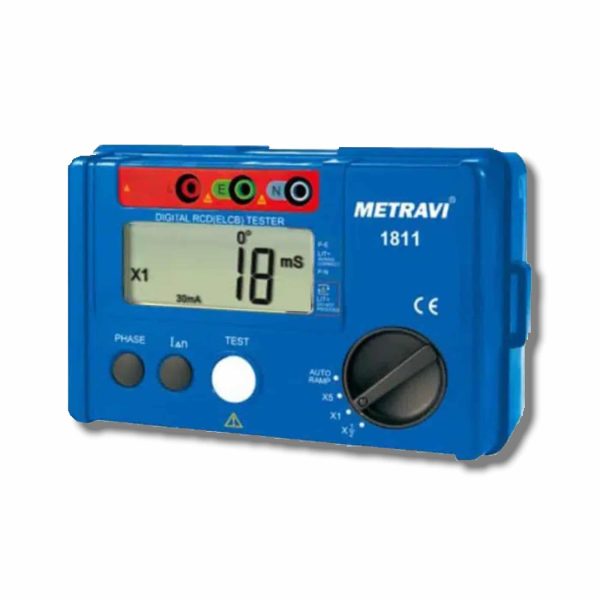

Metravi 1811 ELCB Tester has contact voltage alarm
Metravi 1811 ELCB RCD TESTER
Metravi 1811 ELCB Tester has contact voltage alarm
Metravi 1811 ELCB RCD TESTER

1811 ELCB Tester

Awaiting product image 1810D ELCB Tester
5.00 out of 5
4 customer reviews|Add a review

₹17,415.00 including GST @18%

Digital ELCB Tester with Current rating up to 500mA featuring Auto Ramp,Phase Switch, Reads Disconnection Time. Battery-powered.

Category:
Compare

Description

Digital ELCB RCCD Tester with Current rating up to 500mA, Auto Ramp,Phase Switch, Reads Disconnection Time, Battery-Powered

Additional information

Operating Voltage

195~253V, 230V/50Hz
Colour

Model

Warranty

Brand

Display

Test Types

Auto Ramp Test
Wiring Check

Auto Ramp Test
Trip Current Setting

10/20/30/100/300/500mA
Trip Time Range

**“OL mS” for Overload (Max Test Time Exceeded)
Ramp Test Mode

Yes
Accuracy

±2%rdg ±2dgt
Safety Certifications

IEC 61010-1 CAT III 300V, IEC 61557-1,5, 61010-2-31
Phase Angle

0° and 180°
Power Supply

6 x 1.5V ‘AA’ batteries
Data Hold

Features Present

**Buzzer Alarm After 3 Minutes, Fused Protection
  • Suitable for Use on 230V/50Hz single-phase line (operating voltage: 195~253V);
  • Adopts Micro-Processor Chip to maintain high accuracy, reliability  and stability;
  •  Wiring Check: three –LED indication When P-E and P-N green LED are on and red LED is off, the wiring is correct; otherwise it indicates wrong wiring(reverse P and N or bad grounding);
  •  Phase Angle Selection: The tests can be performed at positive 0 or negative 180 phase angle.
  • Over-Load Indication: “OL mS” shows when trip time exceeds Max. test time
  • Auto Data Hold: The test results will be maintained for a while after the tests finishes.
  • Auto Ramp Test: Test trip current and trip time simultaneously
  •  Power-Off Warning Indication: The buzzer alarms after operating  for 3minutes;
  • Battery Powered
  • Fused Protection
  • Double or Reinforced Insulation for safe design.
  • Trip Current Setting: 10 / 20 / 30 / 100 / 300 / 500mA
  • Confirms to IEC 61010-1 CAT III 300V, IEC 61557-1,5 and IEC 61010-2-31

View Catalogue: Metravi 1811 ELCB Tester Catalogue

4 reviews for 1811 ELCB Tester

  1. 5 out of 5

    kishore60kumar –

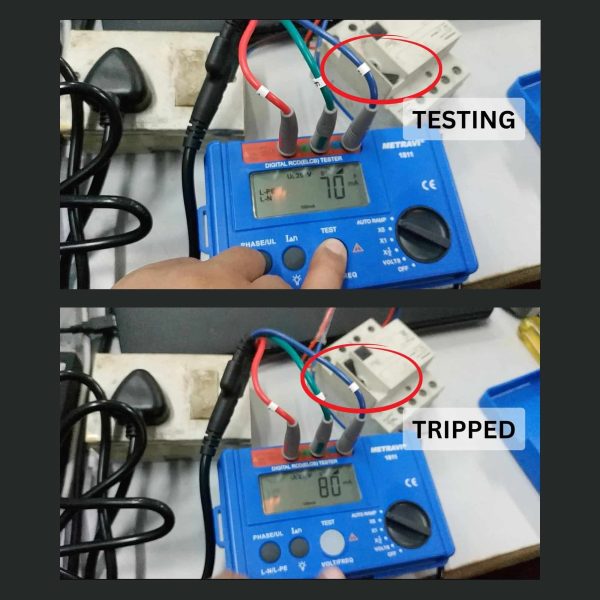

    Checking an RCCB in service/post installation using 1811:
    Youtube link: https://youtu.be/w3E8WeLcfHU

  2. 5 out of 5

    Kishore Kumar –

    RCCB Ramp testing using Metravi 1811 RCD tester: https://youtu.be/VyQeQckVLR8

  3. 5 out of 5

    Kishore Kumar –

    Metravi 1811 Ramp Test demo link:
    https://youtu.be/VyQeQckVLR8

  4. 5 out of 5

    Kishore Kumar –

    Sturdy, portable and accurate.
