VIB-30 Plus Portable Vibration Meter
₹47,250.00 including GST @18%
Digital Vibration Meter, measures RMS velocity in the range of 0.1 to 199.9 mm/sec T-RMS & Peak
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
The Metravi VIB-30 Plus Portable Vibration Meter is a micro-controller based meter that has been designed as a simple diagnostic tool for preventive maintenance.
It measures RMS velocity in the range of 0.1 to 199.9 mm/sec T-RMS & Peak. The instrument and the monitoring techniques are based on the recommendations of ISO standards.
Need based maintenance is most important for the modern industry, which helps keep low maintenance costs and optimised the life of the machinery. Condition monitoring is the basic need for maintenance.
All required, useful measurements are possible with the Metravi VIB-30 Plus Portable Vibration Meter. The Velocity mode allows the user to perform basic vibration analysis.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Low Battery Indication | |
| Input Sensitivity | 10pC/m/S2 |
| Auto Power Off | |
| Velocity | 0.1 to 199.9mm/s rms |
| Resolution | |
| Accuracy | ±(2%+0.1 mm/s) |
| Frequency Range | |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| Vibration Transducer | Piezo Electric type Accelerometer |
| Temperature Range |
- Designed as a simple diagnostic tool for preventive maintenance
- The instrument and the monitoring technique are based on the recommendations of ISO
- Pocket Size, most economical
- Low Battery indication
- Measuring range : 0.2 to 99.9 mm/s RMS
- Frequency range : 10 to 1000Hz
- Resolution : 0.1mm/s
- Accuracy : ±2%
- Input Sensitivity : 10pC/m/S2
- Power Supply : 9V – 6F22
- Display : 3 digit 7 segment LED

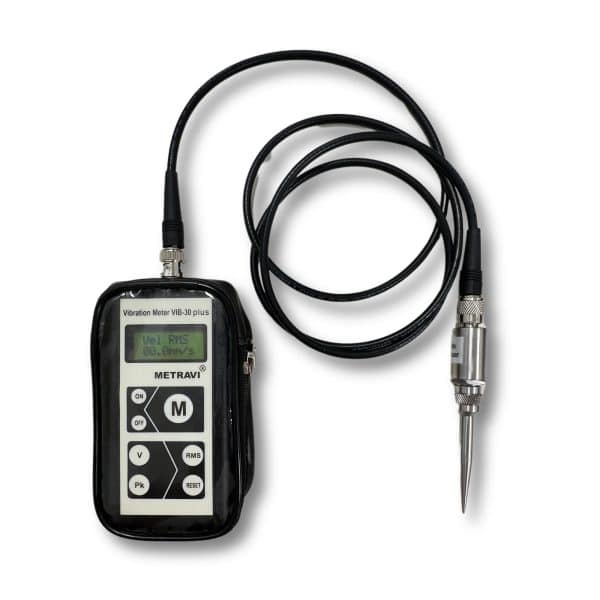

- Vibration Transducer is piezo electric type accelerometer
- Sensitivity of transducer : 10pC/m/S2
View Catalogue: Metravi VIB-30 PLUS Portable Vibration Meter Catalogue
