DT-1350AT Digital TRMS AC/DC Clamp Meter
₹4,644.00 including GST @18%
3-5/6 digit, 6000 Counts, backlit LCD, Measure TRMS AC/DC Current & Voltage, Resistance, Capacitance, Frequency, Temperature, Diode & Continuity. Protected in all ranges.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description

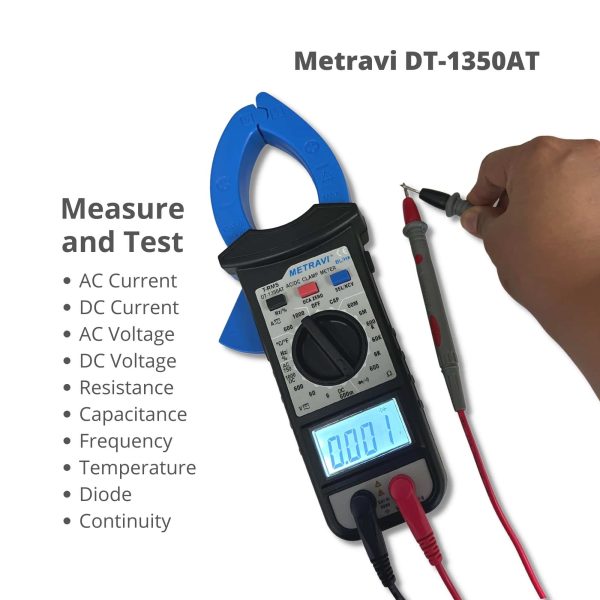

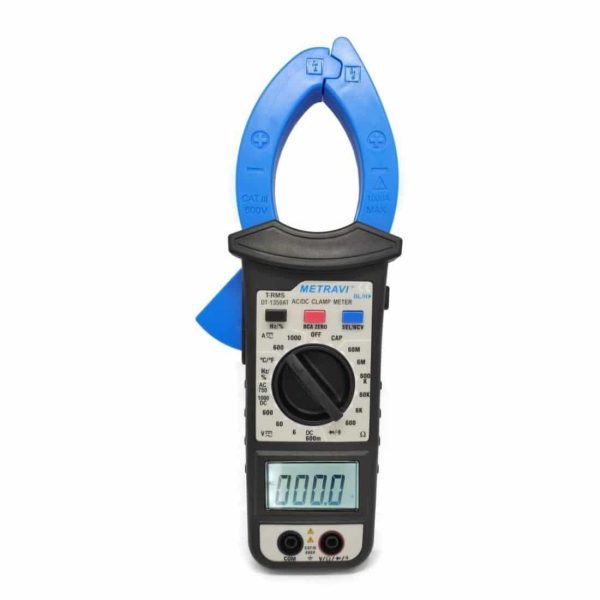

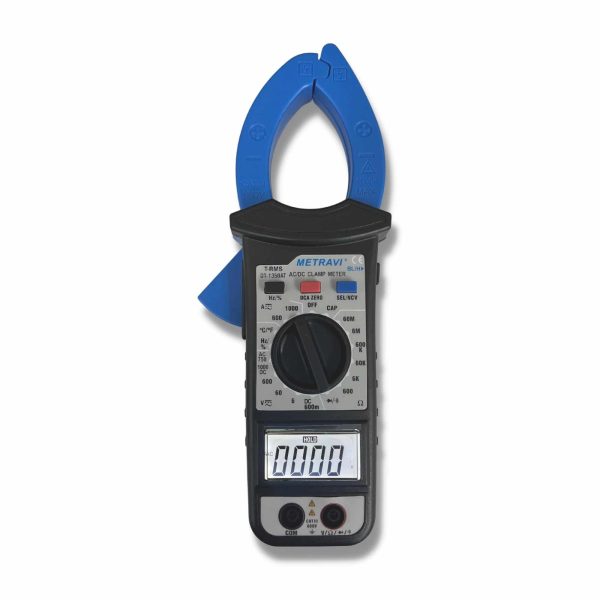

The Metravi DT-1350AT clamp meter is a 5 5/6 Digital Clamp Meter with backlit LCD and powered by two AAA Batteries. The Unit adopts full-function overload protection circuit and can be used for the measurement of DC/AC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency and Temperature.
The unit is reasonably structured and adopts a rotary switch that integrates function selection, range selection and power on/off. It is a portable and ideal tool for electrical measurements.
The DT-1350AT is in compliance with safety standards, including IEC61010-1, IEC61010-2-032, CAT III 600V and Pollution Degree II.
Additional information
| Auto Power Off | |
|---|---|
| Battery Type | Alkaline |
| Brand | |
| Data Hold | |
| Display | |
| Jaw Dia | |
| Low Battery Indication | |
| NCV Detection | |
| Power Source | Battery Operated |
| T-RMS | |
| Warranty | |
| Model | |
| Overload Indication | Overload Indication |
| Battery Size | AAA |
| No of Batteries | 2 |
| AC Current Range | |
| DC Current Range | |
| AC Voltage Range | |
| DC Voltage Range | |
| Resistance Range | |
| Frequency Range | |
| Capacitance Range | |
| Temperature Range | |
| Diode & Continuity | |
| Colour | |
| DC Current Accuracy | ±3.0% |
| DC Voltage Accuracy | ±0.8% |
| Resistance Accuracy | ±0.8% |
| Frequency Accuracy | ±0.3% |
| Temperature Accuracy | |
| DC Current Resolution | 0.1A to 1A |
| DC Voltage Resolution | 0.1mV to 1V |
| Resistance Resolution | 0.1Ω to 10kΩ |
| Frequency Resolution | 0.001Hz to 1kHz |
| Capacitance Resolution | 1pF to 100nF |
| Temperature Resolution | -20°C to 400°C |
| Certifications |
- 3-5/6 Digits 6000 Counts Backlit LCD Display
- Confirms to IEC61010-1, IEC61010-2-032, CAT III 600V
- Over Range and Low Battery Indication
- Data Hold Facility
- Clamp Jaw 40mm
- 500V AC/DC Protection in all ranges
- AC Current T-RMS: 0 – 600 / 1000A
- Accuracy: ±3.0%+8
- DC Current: 0 – 600 / 1000A
- Accuracy: ±3.0%+8
- AC Voltage T-RMS: 0-6 / 60 / 60o / 750V AC
- Accuracy: ±1.0%+3
- DC Voltage: 600mV / 6 / 60 / 600 / 1000V DC
- Accuracy: ±0.8%+3
- Resistance: 0–600Ω / 6K / 60K / 600K / 6M / 60MΩ
- Accuracy: ±0.8%+3
- Frequency: 0 – 9.999MHz
- Accuracy: ±(0.3%+4 )3VRMS
- Capacitance: 0 – 999.9uF
- Accuracy: ±3%+10
- Temperature: -20° to 750°C
- Diode and Audible Continuity Test

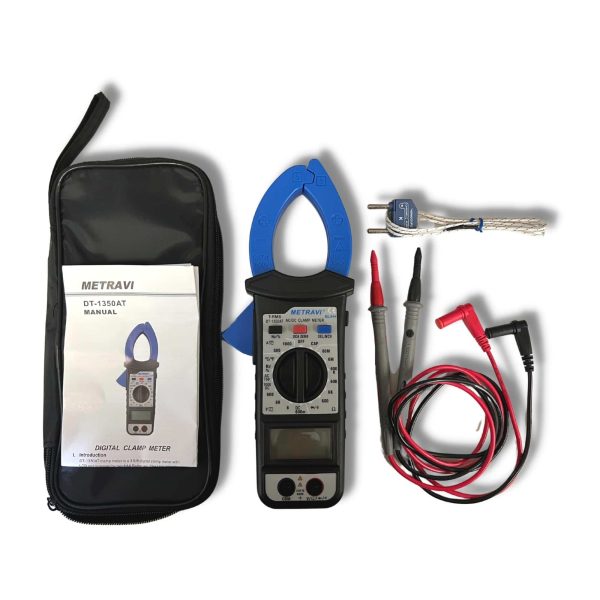

- Accessories: User Manual, Test Leads, K-type Bead Thermocouple Probe, Battery and Carrying Case
