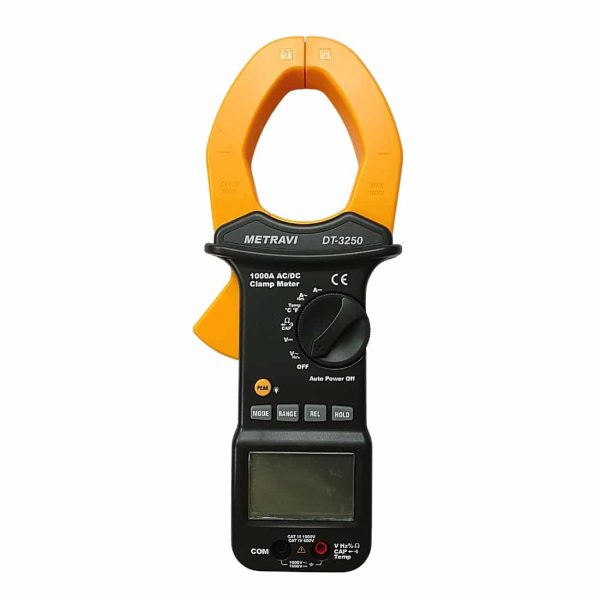

DT-3250 Digital AC/DC Clamp Meter
₹9,963.00 including GST @18%
3-3/4 Digits 41 segment Backlit LCD, Data & Peak Hold, Auto-ranging, 52mm Jaw Size, DC/AC Voltage,1000A DC/AC Current, Frequency, Temperature, Capacitance, Resistance, Duty Cycle, Diode and Continuity Test Facility, 600V AC/DC Protection on all ranges, Frequency through voltage and Current measurement possible, Auto Power Off, Confirms CAT-III 600V & CAT-IV 1000V
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
3-3/4 Digits 41 segment Backlit LCD, Data & Peak Hold, Auto-ranging, 52mm Jaw Size, DC/AC Voltage,1000A DC/AC Current, Frequency, Temperature, Capacitance, Resistance, Duty Cycle, Diode and Continuity Test Facility, 600V AC/DC Protection on all ranges, Frequency through voltage and Current measurement possible, Auto Power Off, Confirms CAT-III 600V & CAT-IV 1000V
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Auto Power Off | |
| Auto Ranging | Auto Ranging |
| Data Hold | |
| Bargraph | Analogue Bargraph |
| Relative Measurement | Relative Measurement |
| Duty Cycle Range | 0.5% to 99% |
| Diode & Continuity | |
| Jaw Dia | |
| Low Battery Indication | |
| Overload Indication | Overload Indication |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | |
| AC Voltage Range | |
| AC Current Range | |
| DC Current Range | |
| Resistance Range | |
| Temperature Range | |
| Frequency Range | |
| Capacitance Range | |
| Peak Current | 400A/1000A |
| DC Voltage Accuracy | ±1% |
| DC Current Accuracy | ±2.0% |
| Resistance Accuracy | ±1.0% |
| Frequency Accuracy | ±1.0% |
| Temperature Accuracy | |
| DC Voltage Resolution | 0.1mV to 1V |
| DC Current Resolution | 100mA to 1A |
| Resistance Resolution | 0.1Ω to 10kΩ |
| Temperature Resolution | 0.1°C |
| Capacitance Resolution | 0.001nF to 0.1µF |
| Certifications |
- Auto-ranging AC/DC Clamp meter
- Auto Power Off
- Peak Hold and Data Hold facility
- Display: 3-3/4 Digits 3999 Counts Backlit LCD with analogue bargraph
- Frequency Measurement while measuring current
- Relative Measurement facility
- DC Voltage : 0 – 400m/4/40/400/1000V.
- Accuracy : ±1.0%
- AC Voltage : 0 – 400m/4/40/400/1000V.
- Accuracy : ±1.2%
- DC Current : 0 – 400/1000A.
- Accuracy : ±2.0%
- AC Current : 0 – 400/1000A.
- Accuracy : ±2.0%
- Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
- Accuracy : ±1.0%
- Temperature : -20°C to 1000°C / -4°F to 1832°F
- Accuracy : ±3.0%
- Frequency : 10 – 100KHz
- Accuracy : ±1.0%
- Capacitance : 0 – 4n/40n / 400n/4u/40u/400uF
- Accuracy : ±3.0%
- Duty Cycle : 0.5 – 99.9%
- Accuracy : ±1.2%
- Diode Test and Continuity Test
- Confirms to CE, IEC 61010, CAT-III 1000V, CAT-IV 600V
View Catalogue: Metravi DT-3250 Digital AC DC Clamp Meter Catalogue
