CET-03B Clamp-on Earth and Ground Resistance Tester with Bluetooth
₹39,150.00 including GST @18%
4 Digits LCD, 32 X 65 mm Clamp Jaw, with Bluetooth, Data Hold, Open Clamp Jaw Indication, Range 0.010 to 1500 Ohms. Maximum Resolution 0.001 Ohms, With Leakage Current Measurement up to 35A.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description

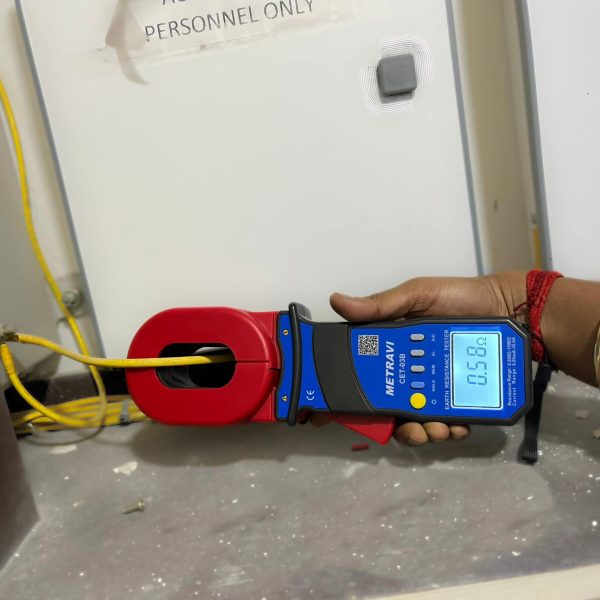

The Metravi CET-03B Clamp-on Earth and Ground Resistance Tester with Bluetooth is widely used in earth resistance measurement and loop resistance measurement in electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.
When measuring the grounding system of the loop circuit, there is no need to disconnect the grounding down lead or auxiliary earth electrode, and it enables safe and fast testing.
The tester can measure ground faults that cannot be measured by traditional methods, and can be applied to the site which cannot be measured by traditional methods, as earth resistance tester measures the comprehensive value of the grounding body resistance and the grounding lead resistance.

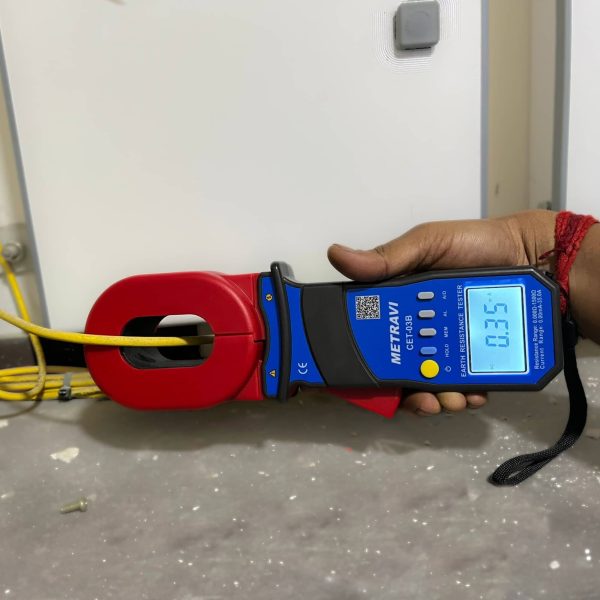

The Metravi CET-03B Clamp-on Earth and Ground Resistance Tester with Bluetooth has a long jaw which is suitable for the site of flat steel grounding. It can also measure leakage current grounding system and the neutral current.
Features:
- Avoids long self-test waiting after power-on, and enters the test interface immediately after power-on.
- No relay self-test and adopts advanced algorithms and digital integrated processing technology.
- No bulky problem of old products and is portable & handheld.
- New housing & design, six operation keys on the panel, easy to operate.
- Added sound and light alarm function, will have “”beep–beep– beep–“” alarm sound.
- Added interference signal identification and indication function, will have “”beep–beep–beep–“” prompt sound.
- Measurement range 0.01Ω-1500Ω.
- Stores 99 groups of data, has lower power consumption, maximum startup and operating current less than 50mA.

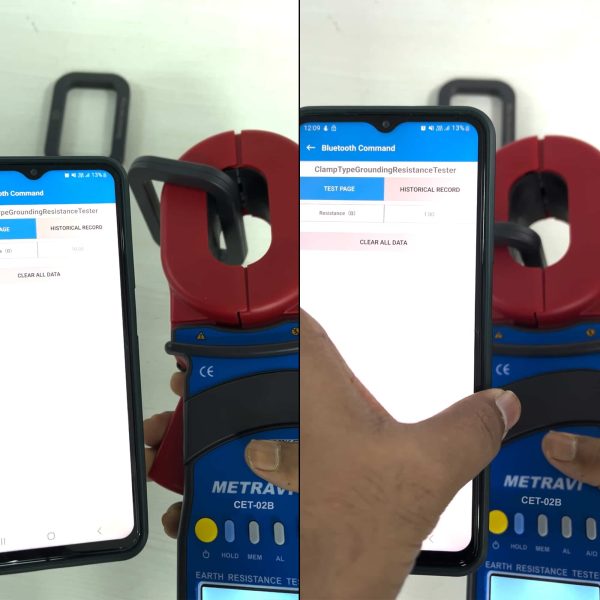

- Bluetooth enabled and Free App for data storage and analysis.
Additional information
| Colour | |
|---|---|
| Model | |
| Brand | |
| Warranty | |
| Resistance Range | |
| Resistance Resolution | 0.001Ω |
| Resistance Accuracy | 1% |
| Resistance Measurement Frequency | >1kHz |
| Current Range | 0.00mA-35.0A |
| Current Accuracy | 2.5% |
| Current Resolution | 0.05mA |
| Data Storage | 99 groups |
| Interfaces | Bluetooth |
| Alarm | Audio Alarm |
| Protection | Double insulation |
| Sampling Time | 0.5 s |
| Measured Current Frequency | 50/60Hz |
| Power Supply | Battery |
| Battery Size | 4xAA |
| Battery Type | Alkaline |
| Display | |
| Shift | Automatic Shift |
| External Magnetic Electric field | <1V/m, <40A/m |
| Working Temperature | -20°C ~ 55°C |
| Working Humidity | 10％RH~90％RH |
| Jaw Size | 65mmX32mm |
- Clamp Jaw Size: 65mmX32mm
- Open Clamp Jaw Size: 65X32mm
- Resistance Range: 0.01Ω-1500Ω
- Resistance Resolution: 0.001Ω
- Resistance Accuracy: ±(1%+0.01Ω)
- Current Range: 0.00mA-35.0A
- Current Resolution: 0.05mA
- Current Accuracy: ±(2.5%+0.1A)
- Data Storage: 99 groups
- Interface: Bluetooth
- Free Smartphone App: For data storage and analysis
- Alarm: “beep–beep–beep –” alarm sound. Press “AL” key to turn on/off
- Alarm Critical Value Setting Range: Resistance:1-199Ω; * Current:1-499mA
- Protection: Double insulation
- Sampling Time: 0.5 s
- Resistance Measurement Frequency: >1kHz
- Measured Current Frequency: 50/60Hz automatically
- Power Supply: 6VDC (4 PCS alkaline dry battery – not included)
- Display: 4-bit LCD digital display, 47mm(L) × 28.5mm(W)

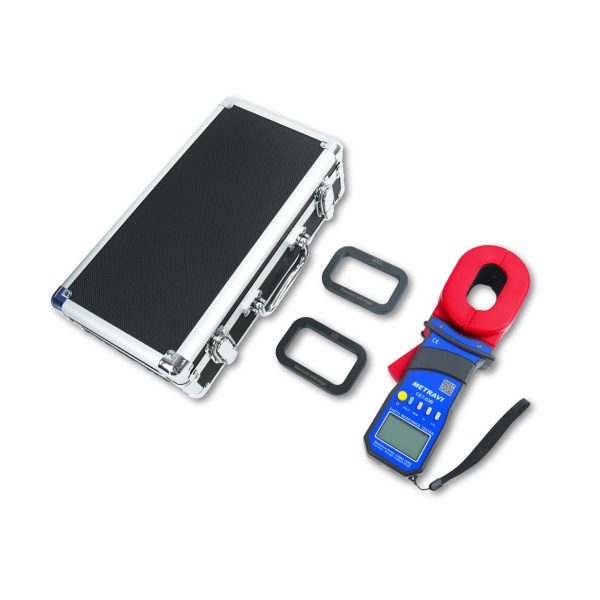

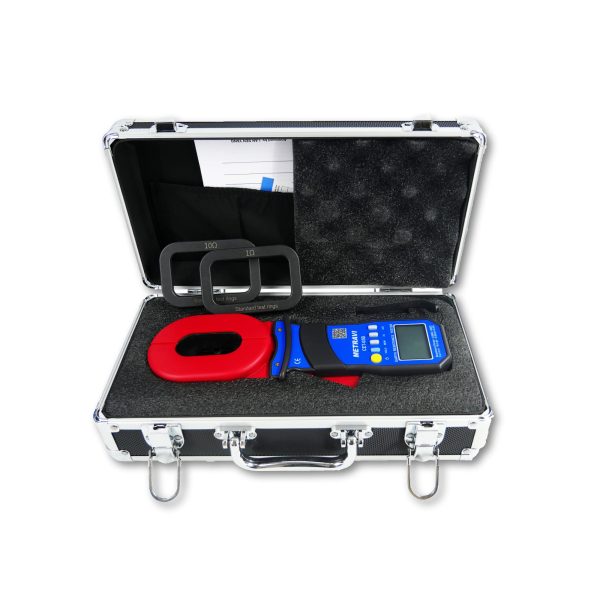

- Accessories: Carrying Case, User Manual, 2xTest Rings
View Catalogue: Metravi CET-01B CET-02B CET-03B CET-04B CET-05B CET-06B Clamp-on Ground Resistance Tester with Bluetooth Catalogue
