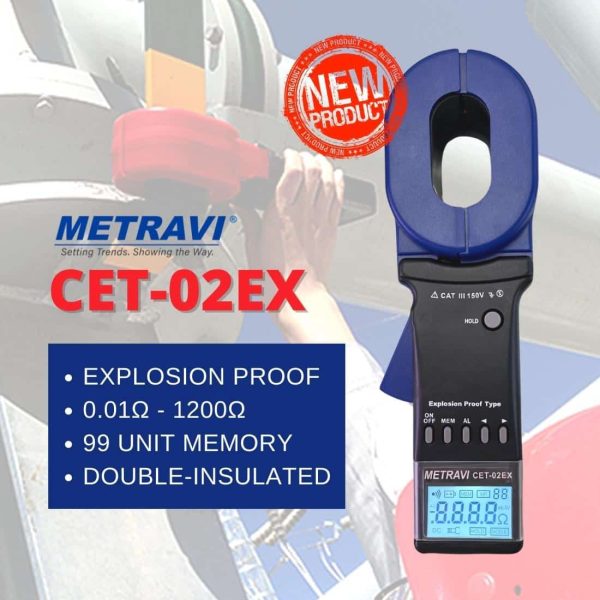

CET-02EX Explosion-proof Clamp-on Ground Resistance Tester
₹53,460.00 including GST @18%
Explosion Proof Clamp On Ground Resistance Tester, 32 X 65 mm Clamp Jaw, Data Hold, Open Clamp Jaw Indication, Range 0.010 to 1200Ω. Maximum Resolution 0.001Ω.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description

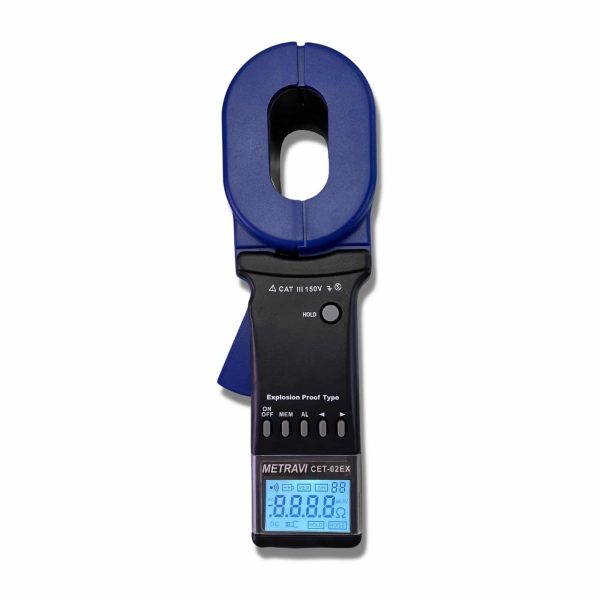

The Metravi CET-02EX is an Explosion-proof Clamp-On Ground Resistance Tester with a 32 X 65 mm Clamp Jaw.
The CET-02EX has passed the explosion-proof certification and is cleared for GB3836-2000 explosive gas environment with electrical equipment. The explosion-proof marks is Exia Ⅱ BT3Ga. Explosion-proof qualified number: CE18.2380.
It can be applied to corresponding inflammable and explosive environment.
It features:
1. Measurement of Earth Resistance and Loop Resistance
2. Resistance Measurement Range: 0.010Ω~1200Ω
3. Data Storage: 99 sets
4. Alarm Threshold Setting：1-199Ω
5. Audible and Visual Alarms
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Data Hold | |
| Data Logging | |
| Alarm | Audio Alarm, Visual Alarm |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| No of Batteries | 4 |
| Resistance Range | |
| Resolution | |
| Accuracy | ±1% |
| Jaw Type | Elliptical Jaw |
| Jaw Dia | |
| Certifications | |
| Working Temperature | -20°C-55°C |
| Working Humidity | 10%RH – 90%RH |
| Meter Size | 285mm (L) x 85mm (W) x 56 mm (H) |
| Protection Level | Double insulation |
| Structure | Clamp CT |
| Shift | Automatic Shift |
| Explosion Mark | Exia II BT3 Ga |
| External Magnetic Electric field | < 40A/m, <1V/m |
| Single Measurement Time | 0.5 s |
| Resistance Measurement Frequency | >1kHz |
- Improvement to the boot-up process that has lead to a significant reduction in the boot-up time, now the device boots up instantaneously.
- Using the most advanced digital integration technology with new processing algorithms, the self-test has been upgraded to be more accurate.
- We have made the device lighter, more ergonomic, and more inline with handheld device specifications.
- With a new panel and 6 button operation for better performance.
- Improved audio and visual alarm.
- Enhanced recognition of interference signal using an audio indicator
- Measurement range : 0.01Ω-1200Ω
- 99 unit data memory.
- Low power consumption, maximum operating current less than 50mA.
