52C-II Milli Ohms Meter
₹10,328.00 including GST @18%
New Launch!!
To measure from 0.01m.Ohms (10 Micro Ohms) to 2000 Ohms with high accuracy & resolution, Test Current 100mA / 50mA. 1999 counts backlit LCD. Function of test lead resistance compensation & self-correcting Zero. MIN/MAX readings. Data storage for 50 readings.
- Description
- Additional information
- SPECIFICATIONS
- CATALOGUE
- Reviews (0)
Description
New Launch!!

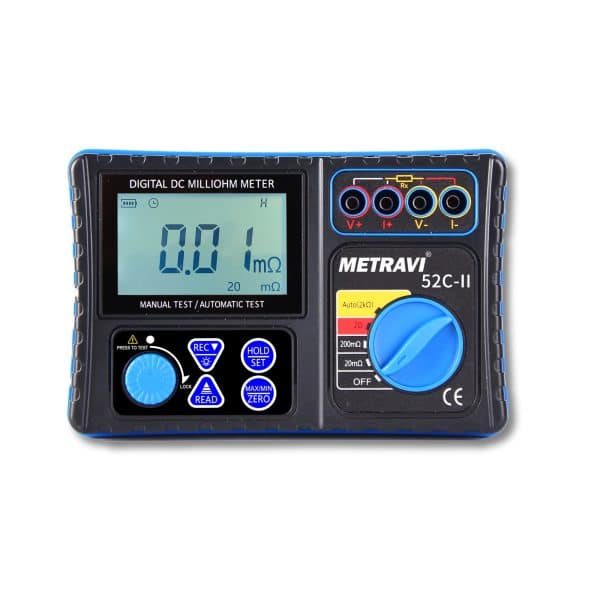

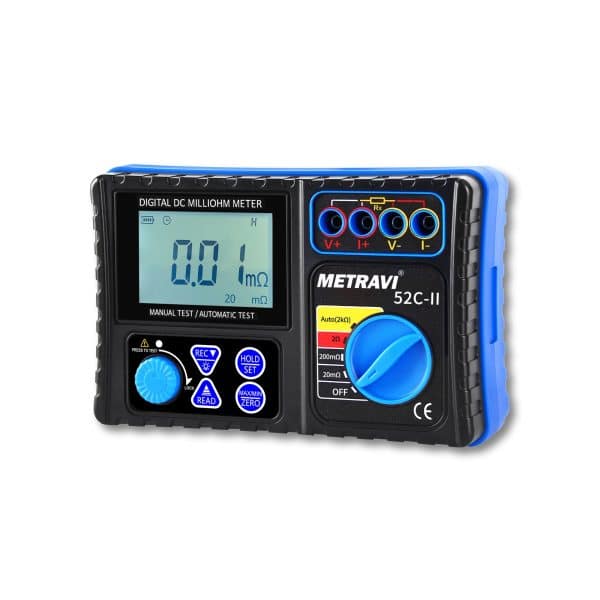

The Metravi 52C-II Milli Ohms Meter is a high-precision, handheld device, designed for accurate measurement of low resistances in critical applications. Whether in electrical maintenance, cable testing, or industrial quality assurance, the 52C-II delivers dependable results with exceptional ease of use.
With robust construction, compact design, and user-friendly features, the Metravi 52C-II Milli Ohms Meter is a trusted companion for technicians and engineers who demand accuracy, speed, and portability in low resistance measurement.
Features:
- Wide Measurement Range : 20 mΩ, 200 mΩ, 2Ω, 20Ω, 200Ω, 2000Ω
- Selectable Test Currents : 100 mA / 50 mA for flexibility and safety
- High Accuracy : ±0.5% ±3 digits
- Fine Resolution : From 0.01 mΩ to 1 Ω
- Clear Display : 3½ digit (1999 counts), backlit LCD for easy viewing
- Sampling Speed : 2 readings per second
- Data Logging : Store up to 50 measurements for later review
- MAX / MIN Hold : Track extreme values during tests
- Settable Alarms : User-configurable upper and lower limits for alerts
- Over-Range Indication : for accurate results
- Test Lead Resistance Compensation : For accurate baseline calibration and repeatability
- Zero Function : For accurate baseline calibration and repeatability
Applications :
- Contact resistance testing (switches, relays, connectors)

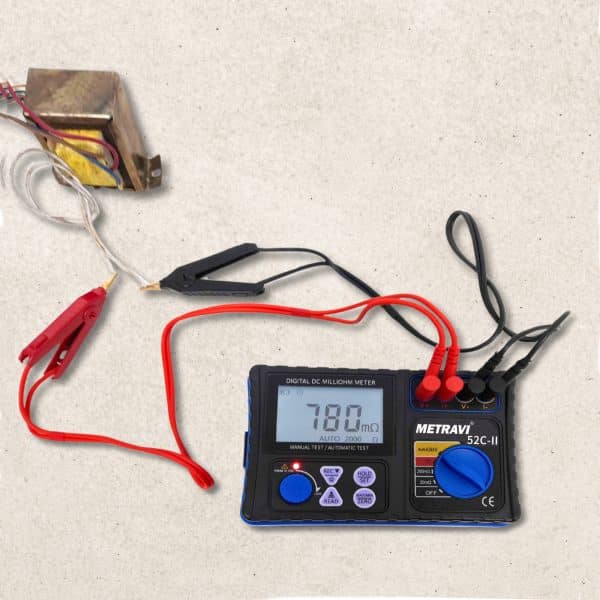

- Transformer and motor winding resistance measurement
- Cable and bus bar continuity checks
- Quality assurance in manufacturing and maintenance environments
Additional information
| Brand | |
|---|---|
| Colour | |
| Model | |
| Warranty | |
| Display | |
| Sampling Rate | 2/s |
| Data Storage | Up to 50 records (manually) |
| Alarms | User settable HI and LO |
| Range Selection | Manual and Automatic |
| Battery | 6 × 1.5A AA Alkaline Batteries |
| Operating Environment | -15°C to 55°C, <75% RH |
| Storage Environment | -50°C to 60°C, <90% RH |

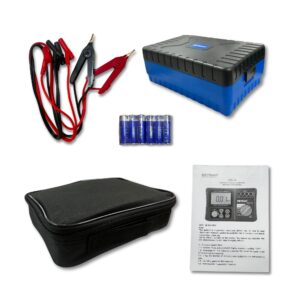

| Accessories | 1 pair Test Leads, 6 Batteries, Carrying Case, User Manual |
- Display: 3½ digit, 1999 counts, backlit LCD
- Sampling Speed: 2/s
- Data Storage: Up to 50 records (manually)
- Range Selection: Manual and Automatic
- Measurement Range : 20 mΩ, 200 mΩ, 2Ω, 20Ω, 200Ω, 2000Ω
- Selectable Test Currents : 100 mA / 50 mA for flexibility and safety
- Accuracy : ±0.5% ±3 digits
- Resolution : From 0.01 mΩ to 1 Ω
- MAX / MIN Hold : Track extreme values during tests
- Settable Alarms : User-configurable upper and lower limits for alerts
- Over-Range Indication : for accurate results
- Test Lead Resistance Compensation
- Zero Function
- Power: 6 × 1.5A AA Alkaline Batteries
- Accessories: 1 pair Test Leads, 6 Batteries, Carrying Case, User Manual
View Catalogue: Metravi-52C II Digital DC Milliohm Meter Catalogue
