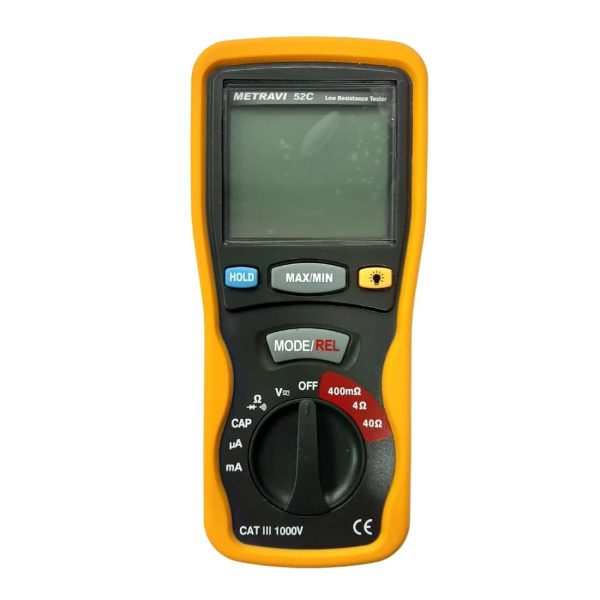

52C Milli Ohms Meter
₹13,905.00 including GST @18%
Hand Held, 0.1mOhms to 40 Ohms, 4 wire Kelvin type connection, also measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance and continuity.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
Hand Held, 0.1mOhms to 40 Ohms, 4 wire Kelvin type connection, also measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance and continuity.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Auto Power Off | |
| Relative Measurement | Relative Measurement |
| Low Battery Indication | |
| Over Range Indication | |
| Method of Measurement | 4 Terminal Measurement with kelvin clip probes |
| Overload Indication | Overload Indication |
| Max/Min/Avg/Dif | |
| Resistance Range | |
| Resistance Accuracy | ±1.0% |
| Resistance Resolution | 0.01Ω, 1Ω, 0.1mΩ, 0.1µΩ, 100Ω, 10kΩ, 10Ω, 1KΩ, 1mΩ |
| DC Current Range | |
| DC Current Resolution | 0.1μA to 0.1mA, 0.01mA, 0.1mA, 0.1µΩ, 1µΩ |
| DC Current Accuracy | ±1.5% |
| DC Voltage Range | |
| DC Voltage Resolution | 0.1mV, 0.1mV to 1V, 1mV, 0.01V, 0.1V, 1V |
| DC Voltage Accuracy | ±1% |
| Capacitance Range | |
| Capacitance Resolution | 1pF to 10μF, 0.1nF, 0.1uF, 10nF, 10pF, 10uF, 1nF, 1pF, 1uF |
| AC Current Range | |
| AC Voltage Range | |
| Output Current | 200mA |
| Sampling Rate | 2 times per second |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 6 |
| Certifications | |
| Operating Temperature Range | |
| Storage Temperature Range | |
| Battery Capacity | 1.5V |

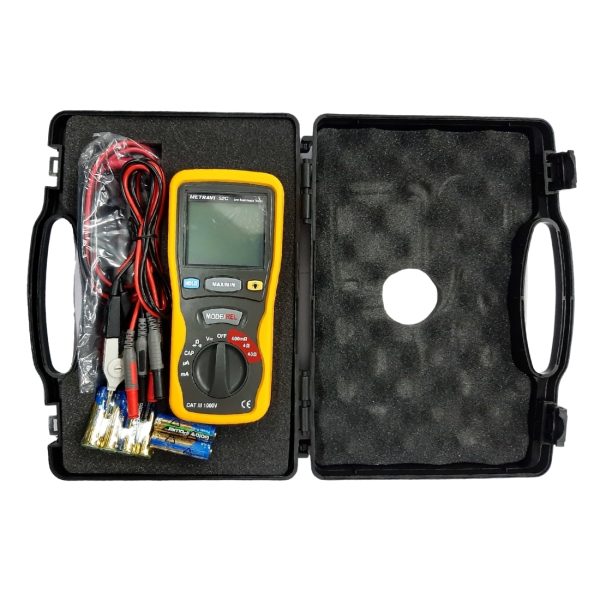

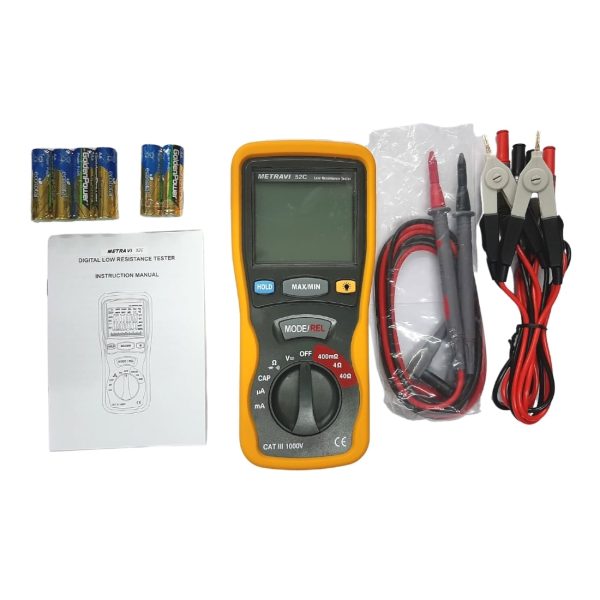

| Accessories | 6 pcs battery, carrying case, manual |
- Low resistance range: 0~40Ω
- Display: 3-3/4 Digits Large LCD with bar graph display
- Maximum output current : 200mA (400mΩ)
- Relative measurement
- Auto Power Off
- Low Battery and Over Range Indication

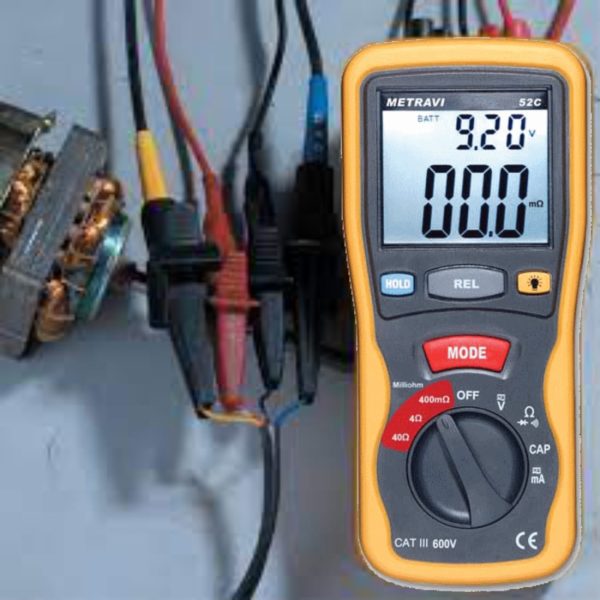

- 4Terminal Measurement with kelvin clip probes
- Overload Protection on all ranges
- Max / Min Recording
- Confirms to CAT-III 600V
- Low Resistance: 0 – 400m / 4 / 40 Ω
- Accuracy: ± 1%
- DC Voltage: 0 – 400m / 4 / 40 / 400 / 1000V
- Accuracy: ± 1%
- AC Voltage: 0 – 400m / 4 / 40 / 400 / 750V
- Accuracy: ± 1%
- DC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- AC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- Capacitance: 0 – 4n / 40n / 400n / 4u / 40u / 400u / 4m / 40mF
- Accuracy: ± 3.0%
- Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
- Accuracy: ± 1.0%
View Catalogue: Metravi 52C Milli Ohms Meter Catalogue
