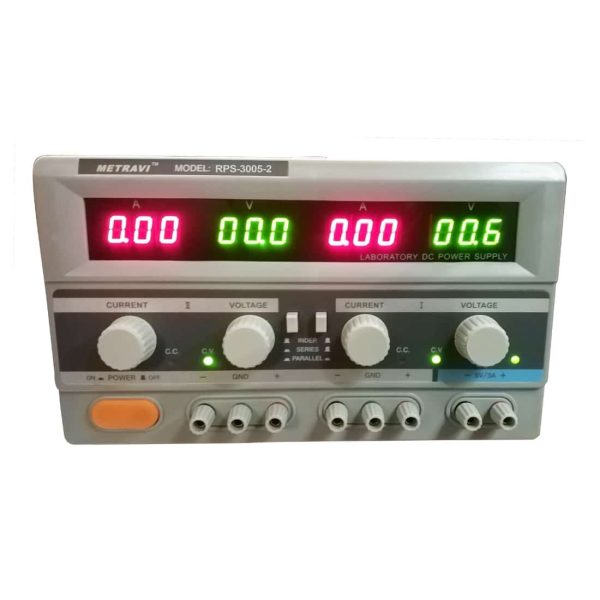

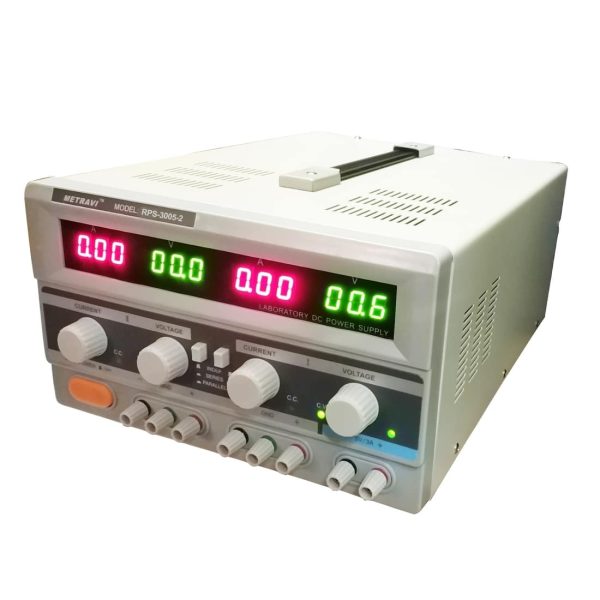

RPS-3005-2 DC Regulated Power Supply
₹28,154.00 including GST @18%
DC Regulated Power Supply with Dual Output and Backlit LCD Display of Variable 0 – 30V / 0 – 5A DC.
Compare
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
DC Regulated Power Supply with Dual Output and Backlit LCD Display of Variable 0 – 30V / 0 – 5A DC.
Widely used in production line test, electrical maintenance, ageing products, battery charging, laboratories, scientific research and teaching and many other areas.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| No of Channel | Dual |
| LED Indication | Indicates the presence of current, Indicates the presence of voltage |
| Operational Modes | Constant Current Mode, Constant Voltage Mode |
| SMT Technology | SMT Technology |
| Input Voltage | 220V / 110V |
| Variable Output Current | 2 x 0 to 5A |
| Variable Output Voltage | 2 x 0 to 30V |
| Accuracy | ±10% |
| Line Regulation Rate | CC ≤0.05% + 5mA, CV ≤0.02% + 2mV |
| Load Regulation Rate | CC ≤0.05% + 5mA, CV ≤0.02% + 2mV |
| Ripple and Noise | CC ≤2mA, CV ≤0.5mV |
| Cooling Fan | Built-in thermo-sensor-activated cooling fan |
| Keyboard Lock Function | Keyboard lock function to prevent operator errors |
- Dual Channel output
- Dual Red LED Display
- Voltage and Current displayed together
- Multi-turn variable device to provide high precision voltage setting.
- Continuous working under full load condition
- Constant Current and Constant Voltage Protection
- Short Circuit protection
- Input : 220V ±10% 50~60Hz
- Variable Output Voltage : 2 x 0 – 30V DC
- Variable Output Current : 2 x 0 – 5A
View Catalogue: Metravi-RPS-3005 RPS-6005 RPS-3002-2 RPS-3002-3 RPS-3005-2 RPS-3005-3 DC Regulated Power Supply Combined Catalogue
