PRO TTRS-1 Transformer Turns Ratio Tester
₹155,250.00 including GST @18%
NEW LAUNCH!!
Transformer Turns Ratio Set with Software & App for Data Transfer. Measure actual transformer ratio 0.9~10000 & group test. Monitoring software, test line, communication line, with Rechargeable Battery, full colour large LCD Touchscreen display, port anti-overload function, Data Logging for 500 sets. CAT Ⅲ 600V.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!
The Metravi Pro TTRS-1 Transformer Turns Ratio Tester adopts microprocessor technology for measurement calculation and automatic control, which can quickly and easily measure the actual transformer ratio and group of the transformer.
It is mainly used for measuring transformer turns ratio and group in the power industry, and it is also used for measuring transformer parameters by transformer manufacturers and distributors.

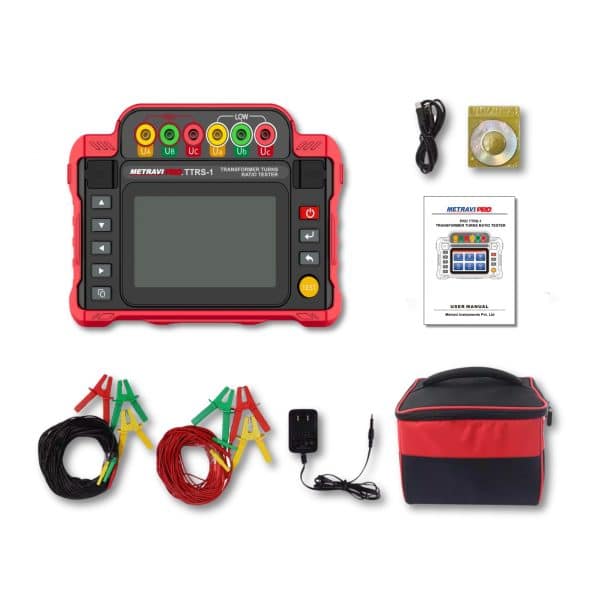

The device is composed of the main machine, monitoring software, test line, communication line, etc. The host has charging function without the need to find electricity.
The Metravi Pro TTRS-1 Transformer Turns Ratio Tester comes with a full colour large screen LCD display, at a glance touchscreen operation, easy to use, port anti-overload function, large capacity storage of 500 sets of data. The upper computer software has the functions of reading, consulting and saving historical data.
Features:
- Various test modes: single-phase test, three-phase test, three-phase blind test, Z-type test.
- Large capacity storage: It can store 500 sets of test data.
- Wide measurement range: variable ratio 0.9~10000.
- Measurement accuracy: 0.2% when the variable ratio is 0.9 to 2000, and 0.5% from 2000 to 10000.
- Max. resolution: 0.0001.
- Support for computer-side control.
- Support for Bluetooth control.
Additional information
| Model | |
|---|---|
| Brand | |
| Colour | |
| Warranty | |
| Measurement Range | 0.9~10000 |
| Accuracy | 0.2% (when variable ratio is 0.9 to 2000 ), 0.5%( when variable ratio is 2000 to 10000 ) |
| Power supply Input | 3800mAh Large capacity lithium battery, DC9.6V |
| Protection | Overload |
| Data Storage | 500 sets of test data |
| Maximum Resolution | 0.0001 |
| Type of Test Product | CT, PT, Single-phase transformer, three-phase transformer, Z-type transforme |
| Variable Ratio Range | 0.9~10000 |
| Charging function | Yes |
| Display Mode | 5-inch touchscreen, LCD display |
| Interactive mode | Touch screen / button |
| LCD size | Length /width：108 mm×65mm |
| Instrument size | length, width and height：229mm×166mm×74mm |
| Mobile APP | Bluetooth connection, Yes |
| Computer Connect | USB cable connection, Yes |
| Power Dissipation | Measured at: 12W Max, Standby: about 2W (100% brightness) |
| Insulation Resistance | Above 10 MΩ (500V between circuit and housing) |
| Withstand Voltage | AC 3700V / rms (between circuit and enclosure) |
| Electromagnetic Characteristics | IEC61010-4-3, Wireless frequency electromagnetic field≤1V/m |
| Safety Standards | CAT Ⅲ 600V, IEC61010-1, Pollution grade 2 |

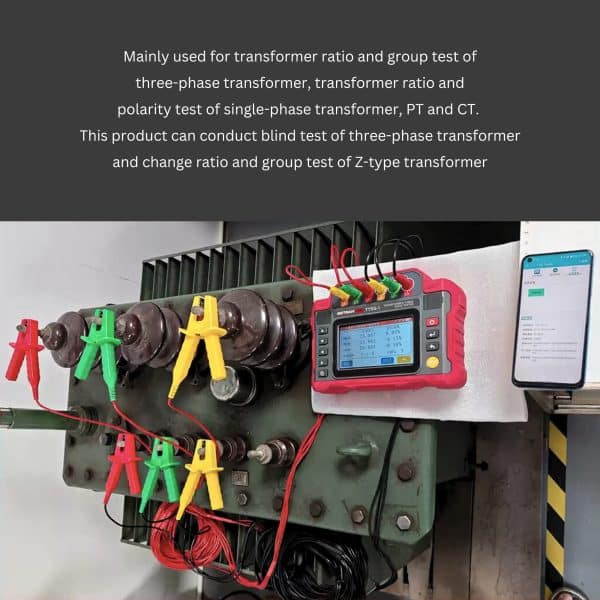

- Function: Mainly used for transformer ratio and group test of three-phase transformer, transformer ratio and polarity test of single-phase transformer, PT and CT. This product can conduct blind test of three-phase transformer and change ratio and group test of Z-type transformer
- Type of test products: Single-phase transformer, three-phase transformer, Z-type transformer, PT, CT
- Variable Ratio Range: 0.9~10000
- Display mode : 5-inch touchscreen (854dots 480dots) full-colour LCD display
- Interactive mode : Touchscreen / button
- Display: 108 mm×65mm Touchscreen
- Mobile APP: Yes, Bluetooth connection
- Interface: USB, Bluetooth
- Data storage: 500sets
- Power : 3800mAh large capacity rechargeable lithium battery
- Low Battery Indication
- Auto shut off : Automatic shutdown can be set for 1 to 30 minutes
- Insulation resistance : Above 10 MΩ (500V between circuit and housing)
- Withstand voltage : AC 3700V / rms (between circuit and enclosure)
- Overload protection
- Electromagnetic characteristics : IEC61010-4-3，Wireless frequency electromagnetic field≤1V/m
- Suitable for safety regulations : IEC61010-1, CAT Ⅲ 600V, Pollution Grade 2
View Catalogue: Metravi PRO TTRS-1 Transformer Turns Ratio Tester Catalogue Web
