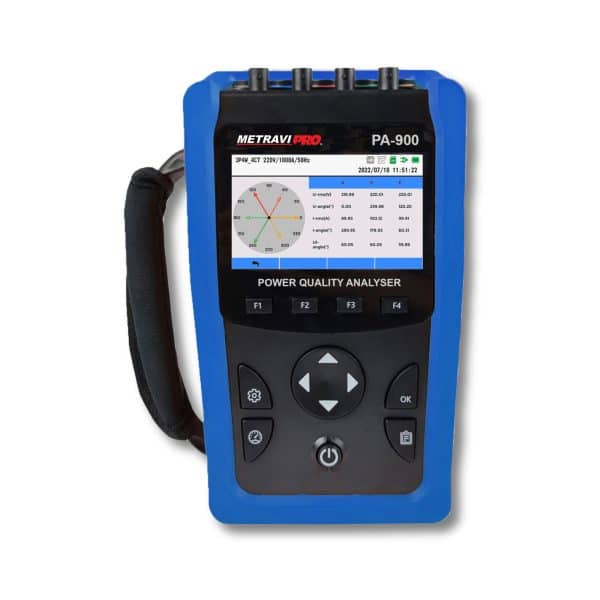

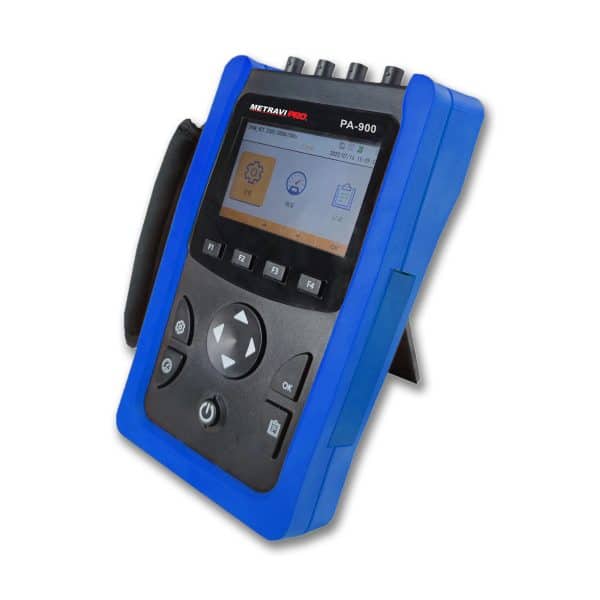

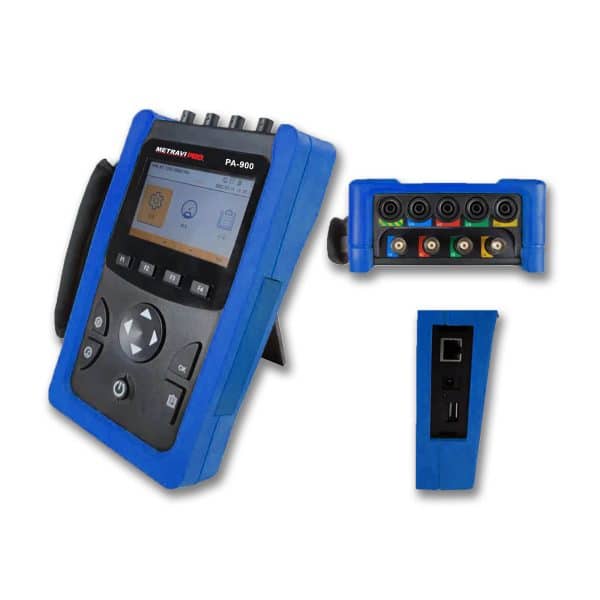

PRO PA-900 3-Phase Power Quality & Harmonics Analyser
₹189,844.00 including GST @18%
NEW LAUNCH!!

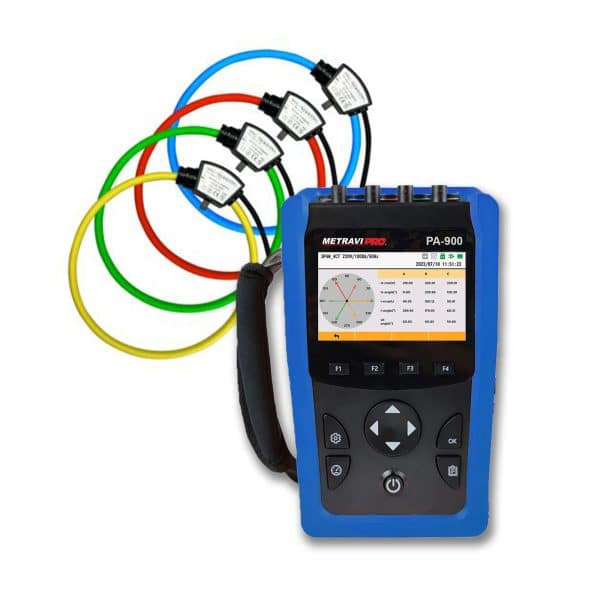

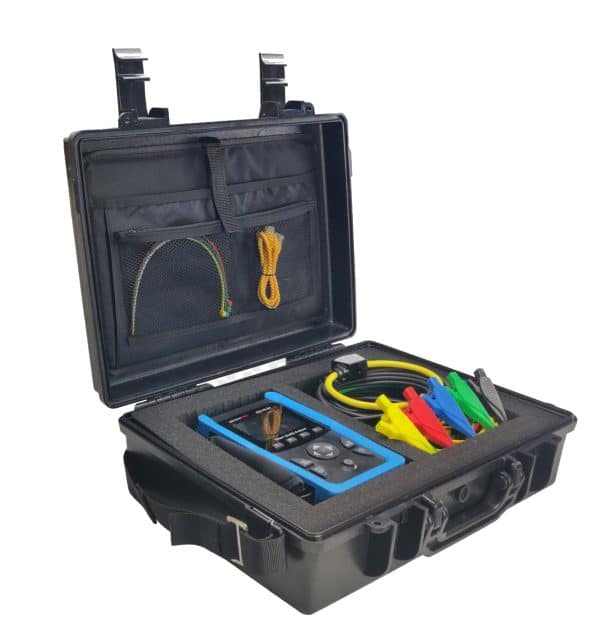

Compatible with flexible Rogowski coils CT and clamp On CTs. Measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. Measure/Calculate Current, Voltage, Frequency, Active Power, Reactive Power, Apparent Power, Power Factor, Voltage angle, Current angle, Current Unbalance, Voltage Unbalance, measures PE-N Voltage, Neutral Current, Sag-Swell measurement, Waveform Display . Data Logging, 3.97 inch Colour TFT Display, 51st Harmonic, Rechargeable Battery, External Rogowski Coil and BNC inputs. IEC/EN 61010-1, CAT III 600V, IP30. RJ45 Ethernet Internface. Comes in an IP65 rated Pelican Hard Carrying Case.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!
The Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser, when externally connected with open type Rogowski coils or voltage type CTs, is capable of non-destructive wire testing with simplified test steps.
It helps save construction costs, and is more convenient for engineering tests as well as aids in the inspection and maintenance of distribution systems.
Features of the Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser:
- Supports single-phase and three-phase systems.
- It can measure multiple electrical parameters such as Current, Voltage, Power Factor, Power, Energy and Power Quality parameters including Harmonic, Unbalance degree, Voltage Swell and Voltage Dip, etc.
- In addition to the measurement function, the PA-900 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.

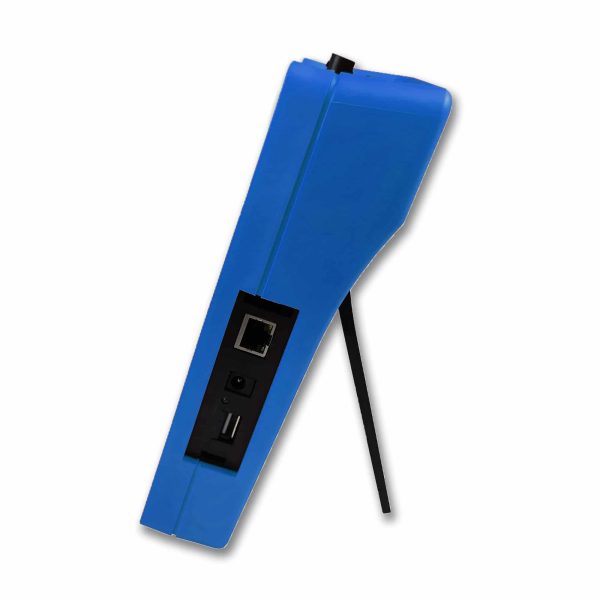

- With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration
systems and can transmit the electrical parameters collected by the front end to the system data center in real time.
Additional information
| Model | |
|---|---|
| Warranty | |
| Brand | |
| Colour | |
| Certifications | |
| Display | |
| Frequency Range | |
| Battery Type | Li-Ion Rechargeable |
| Memory and Storage | 32GB TF card |
| Power Source | Battery Operated, 5V Adaptor |
| Max/Min/Avg/Dif | |
| Energy Parameters | cosØ, DPF, PF, VA, VaH, Var, VarH, W, Wh |
| Number of Channels | 4 x Current, 4 x Voltage |
| Three-phase Unbalance | Three Phase Unbalance Available |
| Peak Value | Peak Value Available |
| Harmonic Wave | 0 to 51 times |
| Total Harmonic Distortion | 0-51 times, Totak Harmonic Distortion Available |
| Communication Interface | Ethernet Port, RJ45-Modbus-TCP |
| Data Logging | |
| Dimensions | 215x120x60 mm |
| Weight | 850 gms |

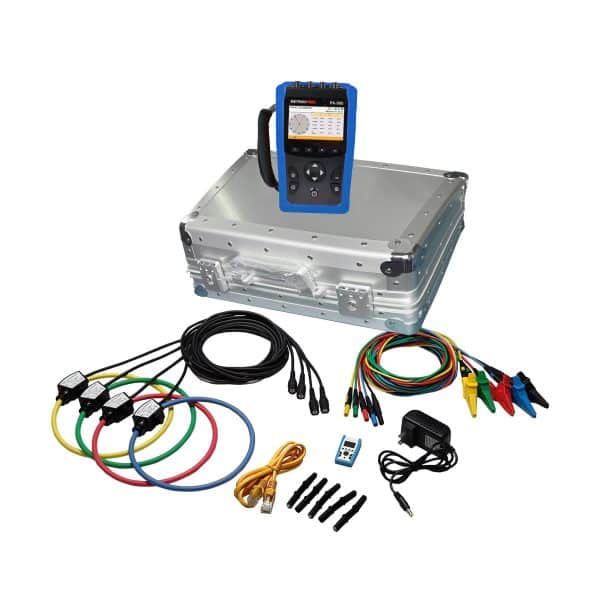

| Accessories | 1m USB cable, 4 x Magnetic voltage sensing probes, 4 x Voltage sensing leads with crocodile clamps, Power Adaptor, USB Pendrive |

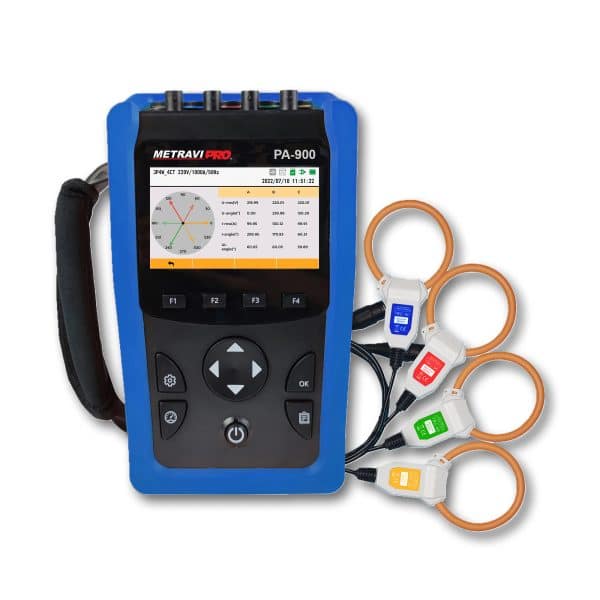

| Optional Accessories | Set 0f 4 Current Clamps |
| Frequency Accuracy | ±0.001 |
| Phase Voltage | 0V to 600V (TRMS) |
| Phase Voltage Accuracy | ±0.2% |
| Line Voltage | 0V to 600V (TRMS) |
| Line Voltage Accuracy | ±0.2% |
| Current | 0A to 6000A (TRMS) |
| Current Accuracy | ±0.2% |
| Reactive Power | Phase ABC and Total (Accuracy ±1.0%) |
| Power Factor | -1 to +1 (Accuracy ±0.005%) |
| Active Energy | 999.9GWh, 9999.9MWh, Phase ABC and Total (Accuracy ±0.5%) |
| Reactive Energy | 999.9GWhr, 9999.9MWhr, Phase ABC and Total (Accuracy ±1.0%) |
| Phase Angle | Phase ABC |
| Displacement Power Factor | Each Phase, Total |
| Other Functions | Phasor Diagram, Sag, Swell |
| DC Voltage Accuracy | ±0.20% |
- Display:Â 3.97 in 480×800 px Colour TFT
- Sampling Rate: User-settable
- Power:Â Rechargeable 4000mAH 2 x Lithium battery Or Mains 5VDC/2A Adaptor
- Data Storage:Â 32GB TF card
- Frequency:Â Line frequency
- Voltage Harmonics:Â THD; TOHD; TEHD; phase ABC 1-50th harmonic percentage; phase ABC 1-50th harmonic voltage value
- Current Harmonics: THD; TOHD; TEHD; phase ABC 1- 50thPhase ABC current waveform harmonic percentage; phase ABC 1-50th harmonic current value
- Voltage Waveform:Â Phase ABC voltage waveform
- Current Waveform: Phase ABC current waveform
- Voltage Phase Angle:Â Phase ABC
- Current Phase Angle:Â Phase ABC
- Phase Angle between Voltage and Current: Phase ABC
- Unbalance: Voltage unbalance, Current unbalance
- Power Demand & PEAK Demand: Phase ABC active power and total power; phase ABC reactive power and total power; phase ABC apparent power and total power
- Current Demand & PEAK Demand: Phase ABC
- Wiring System: 3p4w, 4CT, 3P4W, 3CT, 3P3W, 3CT, 3P3W, 2CT, 1P3W, 1P2W
- Current Sensor: Rogowski Coil, Voltage-output Current Clamps
- Voltage Access:Â Direct access , connected through voltage transformer
- Voltage:
- Channel Input Voltage Range: 0-600VAC
- Measurement Range: 0-600VAC
- Measurement Accuracy: 0.2%
- Current:
- Channel Input Voltage Range: 0-420mVAC
- Measurement Range: Different current sensors have different measuring ranges
- Measurement Accuracy: 0.2%+ Accuracy of current sensor
- Frequency:
- Measurement Range: 45Hz-65Hz
- Measurement Accuracy: ±0.001Hz
- Power Factor:
- Measurement Range: -1-+1
- Measurement Accuracy: 0.5%
- Power:
- Active Power Accuracy: 0.5%
- Reactive Power Accuracy: 1%
- Apparent Power Accuracy: 0.5%
- Energy:
- Active Energy Accuracy: 0.5%
- Reactive Energy Accuracy: 1%,
- Apparent Power Accuracy: 0.5%
View Catalogue: Metravi-Pro-PA-900-Portable Three Phase Power Quality and Harmonics Analyser Catalogue
