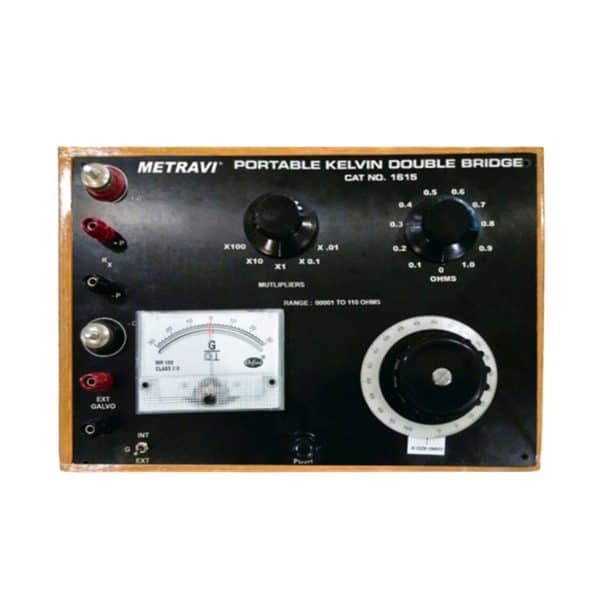

Metravi Kelvin Double Bridge Top View
Metravi Kelvin Double Bridge Top View

KDBR Kelvin Double Bridge

0 out of 5
( There are no reviews yet. )

₹104,490.00 including GST @18%

Kelvin Double bridge, with spot reflecting galvanometer, High Current DC power supply and wooden stand for specimen

Category:
Compare

Description

Kelvin Double bridge, with spot reflecting galvanometer, High Current DC power supply and wooden stand for specimen



Additional information

Model

Brand

Warranty

Range of Measurement

0.2 micro ohm to 11 ohms
Max. Current

10 amperes intermittant and 5 amperes continuous
Accuracy

± 0.05 ± 1 small division of the slidewire
Coil Resistance

100 ohms approx
Sensitivity

0.05 microampers per mm or 5 microvolts per mm
Time Period

2 seconds approx.
Input Voltage

230 Volts A.C. Mains at 50 Hz
D.C. Output

Approximately 0 to 10V
  • Suitable for the use of wires and cable manufacturers and Transformer industry
  • Extensively used for finding the resistance of transformer winding, contact resistance of relays etc.
  • Measures in the range of 0.2 Micro ohms to 11 Ohms
  • Measurement Ranges: 2 Milliohms to 11 Ohms, 0.2Milli Ohms to 1.1 Ohms, 20 Micro Ohms to 11 Ohms, 2 Micro Ohms to 0.11 Ohms and 0.2 Micro Ohms to 0.0011 Ohms
  • Max Current 10A intermittent and 5A continuous
  • Accuracy: ± 0.05%
  • Battery Reversing Switch provided to reverse the current in the bridge to eliminate thermal effect
  • Complete with Spot Reflecting Galvanometer, Heavy Duty DC Current Source, Conductivity Attachment

View Catalogue: Metravi KDBR Kelvin Double Bridge Catalogue
