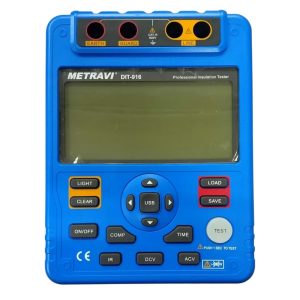

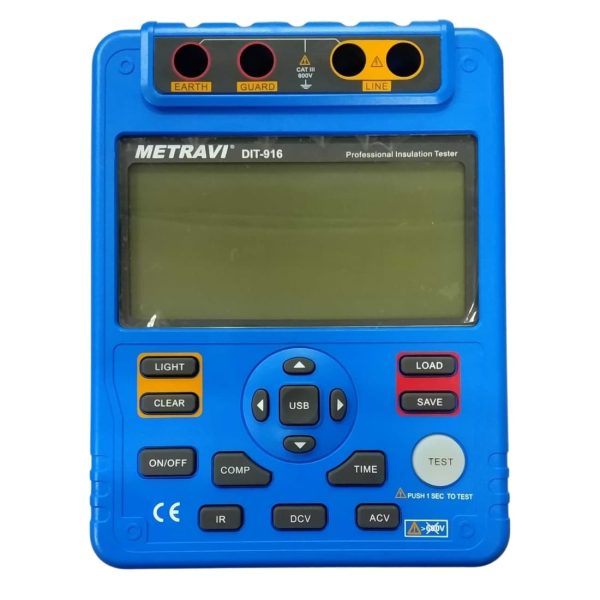

DIT-916 Digital Insulation Tester
₹39,825.00 including GST @18%
Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V, Insulation resistance measurement up to 1T Ω, User selectable programmable timer (10s to 30 min), Automatic discharge of test object after completion of measurement, Diagnostic tools, Polarization index (PI), Dielectric absorption ratio (DAR), USB PC Interface.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
The Metravi DIT-916 Digital Insulation Tester is for for 500V / 1000V / 2500V / 5000V & 1T.Ohms with USB PC Interface cable and software.
It can also measure PI, DAR and other important specifications. Measured data can then be analysed through PC software.
The Metravi DIT-916 Digital Insulation Tester can measure insulation resistance of large transformers, generators, high-voltage motors and more.
Features:
- Large 9999 display with 30-segment analogue bar graph
- PI/DAR measurements
- Comparison, upper and lower limit functions
- Continuous measurement mode
- Auto power off
- 18-group data storage
- Backlight
- Auto current discharge and high-voltage output alarm
- Power adapter (optional at extra cost)
- Time measurement mode, auto measure within 15 minutes
- USB interface and PC software
- Low battery and over range indications
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| Display | |
| Data Logging | |
| Auto Ranging | Auto Ranging |
| PC Interface | |
| Overload Indication | Overload Indication |
| Low Battery Indication | |
| Power Source | Battery Operated, Mains Operated |
| Battery Type | Alkaline |
| No of Batteries | 8 |
| Polarization Index Test | PI |
| Dielectric Absorption Ratio | DAR |
| Comparator | Pass/Fail thresholds for quick measurement and verification |
| Test Timer Function | User-selectable (10sec to 30min) |
| Insulation Test Voltage | 500V / 1000V / 2500V / 5000V |
| Insulation Resistance Range | 0.0MΩ to 1TΩ |
| Bargraph | Analogue Bargraph |
| Short-circuit Current | ≥2.0mA |
| Accuracy | ±3% ±5 |
| Certifications |
- Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V
- Insulation resistance measurement up to 1T Ω
- User selectable programmable timer (10s to 30 min)
- Automatic discharge of test object after completion of measurement
- Diagnostic tools
- Polarisation index (PI)
- Dielectric absorption ratio (DAR)
- USB PC Interface
- Comparison feature to set pass/fail thresholds for quick measurement and verification
- Dual power source: Batteries or Mains Power
- Data Logging: Built-in internal memory for storing upto 18 sets of data
- Safety Standards: CAT III 600V
- Confirms to: IEC 61010 CAT.III 600V Over-voltage and double insulation standard
- Display (LCD): Digital : 9999 counts Analogue bar graph
- Display Backlight: Bright Backlight for clear readings in poorly lighted areas

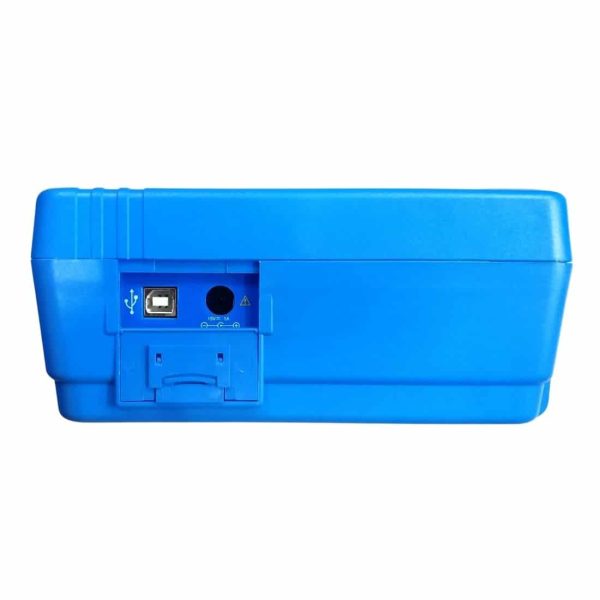

- Computer Connection: Via USB interface
- Auto Range: The meter automatically selects best range
- Warnings: Displayed on the instrument
- Test Voltage: Automatically source the voltage

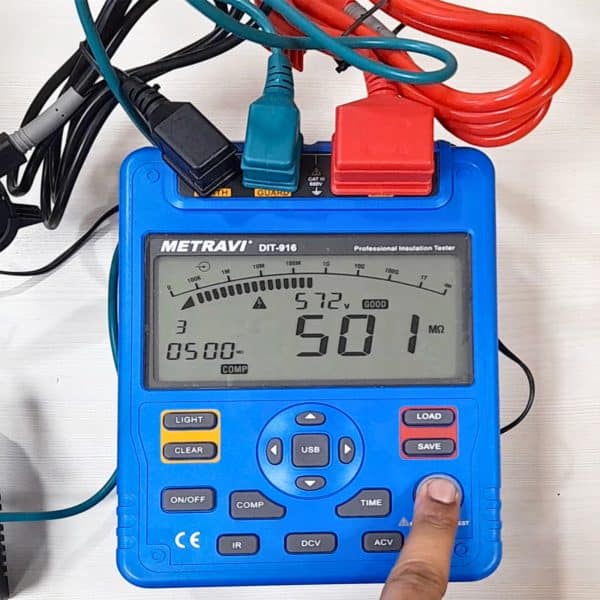

- COMP Measurement: Used for Compare function to set a pass/fail compare level for the insulation measurement
- PI Measurement: Polarisation Index is the ratio of insulation resistance. Preset the time for two points and the Meter will carry out the measurement automatically
- Time: To carry out measurement by setting a specified time within 15 minutes
- Over Loading: Display OL on insulation resistance range
- Battery Indicator: Low Battery indication

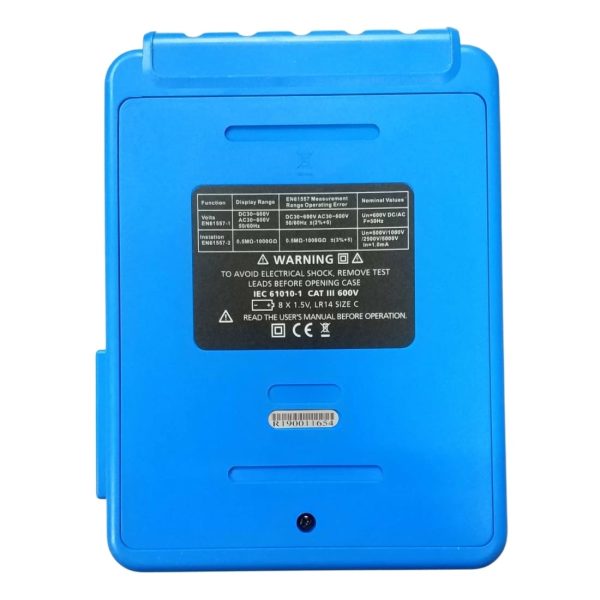

- Power: 8pcs of 1.5V (LR14) batteries OR Power adaptor (input voltage 230V, 50/60Hz, 150mA, input DC15V, 1.0A)
Note: Power Adaptor is optional at extra cost
