DDS-35 DDS Function Generator
₹27,770.00 including GST @18%
35MHz Dual-Channel Arbitrary Waveform Generator, 125MSa/s Sample Rate, 14-Bit Resolution, 150 Built-in Waveforms, 3.6″ TFT LCD Function Generator, Portable with USB PC Remote Control.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description

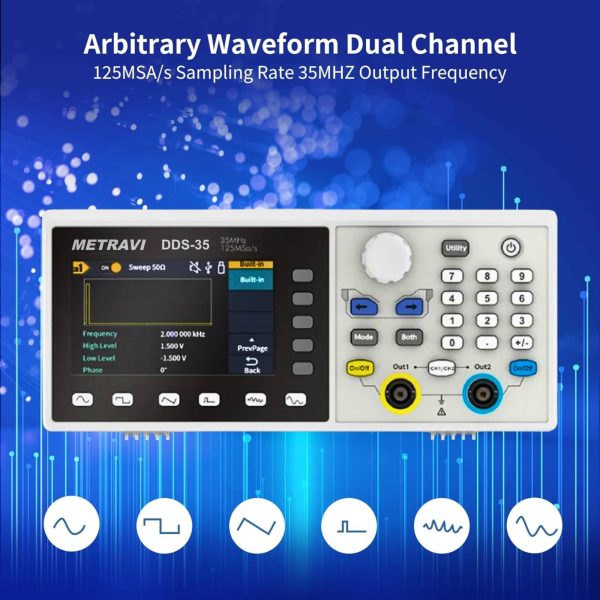

Introducing Metravi DDS-35 Function Generator, a dual-channel arbitrary waveform generator with frequency outputs of up to 35MHz.
It features a maximum sampling rate of 300MSa/s, 14-bit vertical resolution, and supports 8k arbitrary waveform length, ensuring precise and stable signal output for various applications.
Lightweight, Compact and Portable: designed with convenience in mind, the portable Metravi DDS-35 Function Generator includes easy-to-use shortcut keys and a compact, mini-sized design.
This function generator can produce 5 basic waveforms & has 150 built-in arbitrary waveforms. Featuring high resolution 3.6 inch LCD displays, the compact size of the instrument makes it ideal for the professional on-the-go and on the field or lab for electronic engineers, laboratories, teaching, scientific research, and production lines.
Additional information
| Model | |
|---|---|
| Warranty | |
| Brand | |
| Colour | |
| No of Channel | 2 |
| Output Frequency | 35MHz |
| Vertical Resolution (A/D) | 14 bits |
| Sine | 1μHz-35MH |
| Square | 1μHz ~ 15MHz |
| Pulse Range | 2mHz ~ 15MHz |
| Ramp | 2mHz ~ 1MHz |
| Noise | 20MHz (-3dB，typical) |
| Frequency Resolution | 1μHz or 7 significant figures |
| Frequency Stability | ±30 ppm at 0±40℃ |
| Frequency aging rate | ±30 ppm per year |
| Arbitrary Waveform Length | 2 to 8Kpts |
| Sample Rate | 125Ma/s |
| DC offset resolution | 1mV or 4digits |
| Modulation Type | AM、FM、PM、FSK |
| Internal Modulation Frequency | 2 mHz to 100 kHz |
| Trigger Source | Internal, manual |
| Display | |
| Communication Interface | USB |
| Remote Operation | Via PC |
| Command Support | LabVIEW, SCPI |
- Frequency output: 35MHz
- Channels: 2
- Sampling Rate: Max 300MSa/s
- Vertical resolution: 14 bits 1μHz.
- Waveform Length: 8K Arb

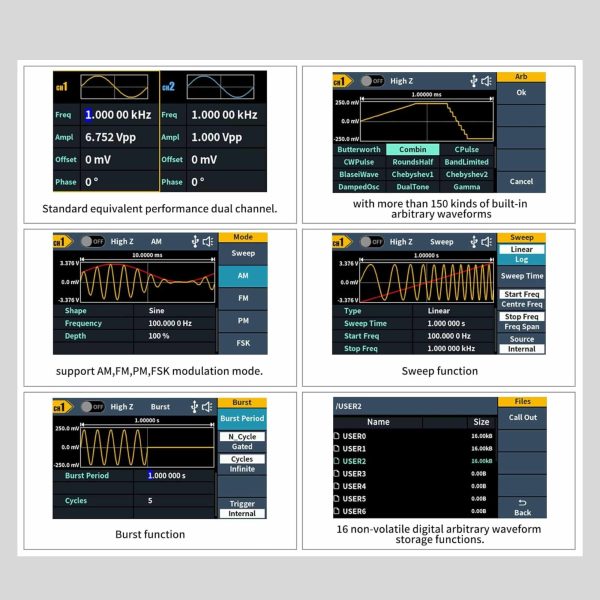

- Comprehensive waveform output
- 5 basic waveforms and 150 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst.
- SCPI, and LabVIEW supported

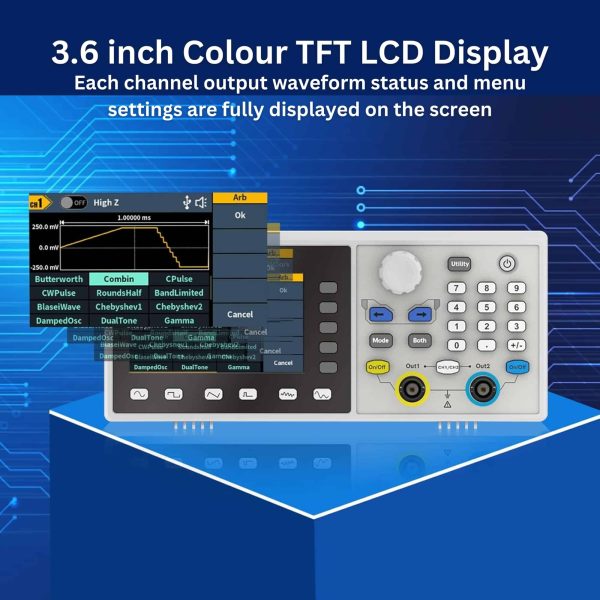

- Display: 3.6 inch (480 × 260 pixels) LCD
- Interface: USB
- Ultra thin, lightweight and compact
View Catalogue: Metravi DDS-35 & DDS-70 Compact DDS Function Generator Catalogue
