0 out of 5
( There are no reviews yet. )

₹20,925.00 including GST @18%

THIS MODEL HAS BEEN PHASED OUT. PLEASE CLICK HERE TO CHECK OUT THE NEW METRAVI CAL-600 INSTEAD FOR SIMILAR AND BETTER SPECIFICATIONS.

Hand Held, 4 Digits Large LCD Display, Measures and Provides output for 20mV / 100mV / 15V DC, Current output up to 24mA, 24V Loop Power, and outputs for K, E, J, T, R, S, B and N types of thermocouples.

Availability: Out of stock Categories: , , ,
Compare

Description

THIS MODEL HAS BEEN PHASED OUT. PLEASE CLICK HERE TO CHECK OUT THE NEW METRAVI CAL-600 INSTEAD FOR SIMILAR AND BETTER SPECIFICATIONS.

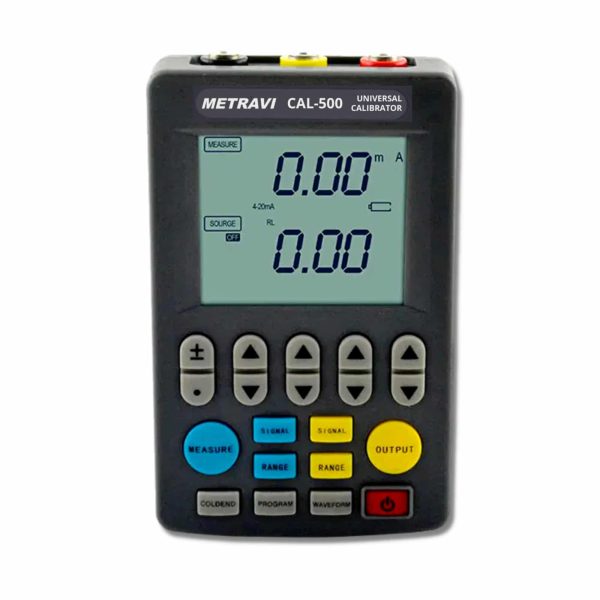

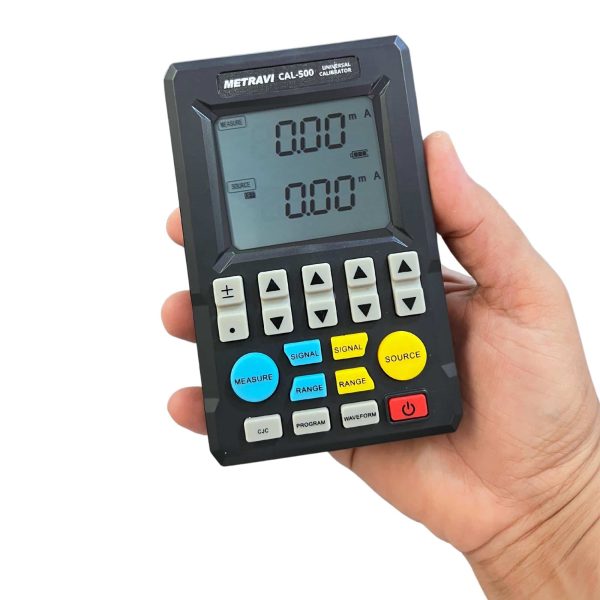

The Metravi CAL-500 Universal Calibrator has multiple signal outputs and can measure various parameters including Voltage, Current and Thermoelectric couple.
With its large LCD display, Silicon keypad, easy to use operations, long service life, high accuracy and programmable output, it is widely used in Labs, various industrial fields, PLC process instruments etc., for debugging Electric and other parameters.

Hand Held with 4 Digits Large LCD Display, the Metravi CAL-500 Universal Calibrator measures and provides output for 20mV / 100mV / 15V DC, Current output up to 24mA, 24V Loop Power, and outputs for K, E, J, T, R, S, B and N types of thermocouples.

Additional information

Model

Brand

Warranty

Colour

Display

DC Voltage Range

DC Voltage Resolution

0.01mV to 0.01V
DC Voltage Accuracy

±0.1%
DC Current Range

DC Current Resolution

0.01mA to 0.01A
DC Current Accuracy

±0.1%
Loop Power Supply

24V
K Type Thermocouple

-270°C to 1372°C
K Type Resolution

1°C
K Type Accuracy

±0.1%
E Type Thermocouple

-270°C to 1000°C
E Type Resolution

1°C
E Type Accuracy

±0.1%
J Type Thermocouple

-210°C to 1200°C
J Type Resolution

1°C
J Type Accuracy

±0.1%
T Type Thermocouple

-270°C to 400°C
T Type Resolution

1°C
T Type Accuracy

±0.1%
R Type Thermocouple

-50°C to 1768°C
R Type Resolution

1°C
R Type Accuracy

±0.1%
B Type Thermocouple

0 to 1820°C
B Type Accuracy

±0.1%
S Type Thermocouple

-50°C to 1768°C
S Type Resolution

1°C
S Type Accuracy

±0.1%
N Type Thermocouple

-270°C to 1300°C
N Type Resolution

1°C
N Type Accuracy

±0.1%
Power Source

Battery Operated
  • Hand Held, Battery Operated
  • Extra Large LCD Display
  • Displays both output and measurements
  • In the output / measurement mode following are available:
  • DC Voltage: 0 – 24mV / 100mV / 15V
  • Accuracy: ±0.2%
  • DC Current: 0 – 24mA
  • Accuracy: ±0.2%
  • Step wise output of 4/8/12/16/20/24mA
  • Passive Current output: 0 – 24mA
  • Accuracy: ±0.2%
  • 24V Loop Power Output
  • K type Thermocouple Output: -270 to 1372°C
  • Accuracy: ±1%
  • E type Thermocouple Output: -270 to 1000°C
  • Accuracy: ±1%
  • J type Thermocouple Output: -210 to 1200°C
  • Accuracy: ±1%
  • T type Thermocouple Output: -270 to 400°C
  • Accuracy: ±1%
  • R type Thermocouple Output: -50 to 1768°C
  • Accuracy: ±1%
  • B type Thermocouple Output: -0 to 1820°C
  • Accuracy: ±1%
  • S type Thermocouple Output: -50 to 1768°C
  • Accuracy: ±1%
  • N type Thermocouple Output: -270 to 1300°C
  • Accuracy: ±1%

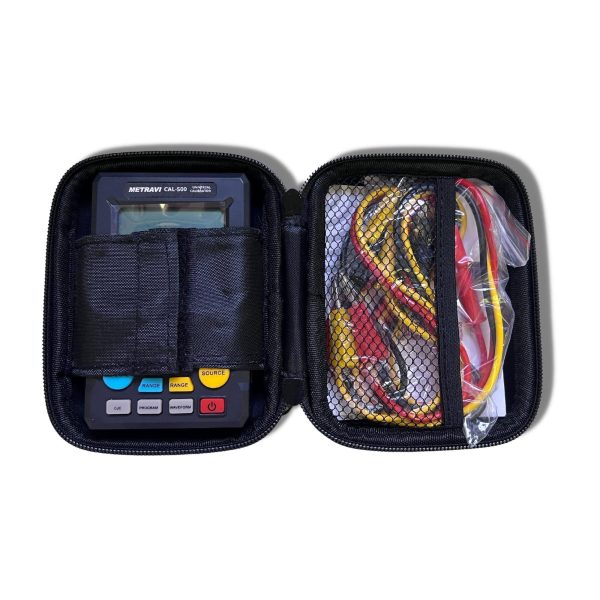

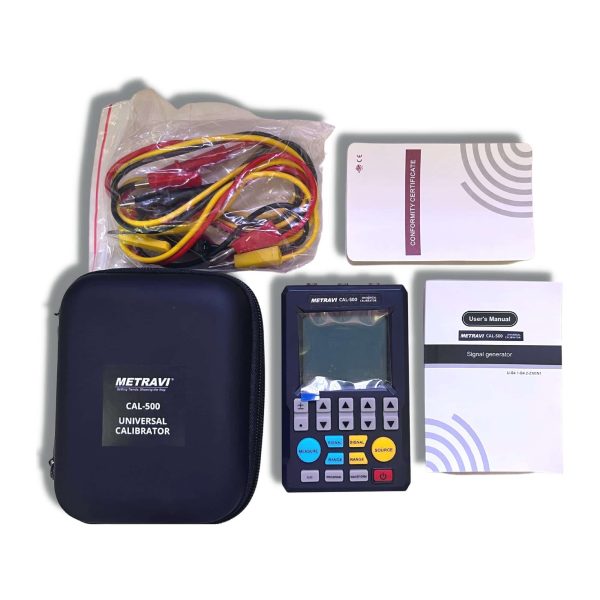

  • Complete with instruction manual, testing leads and battery
