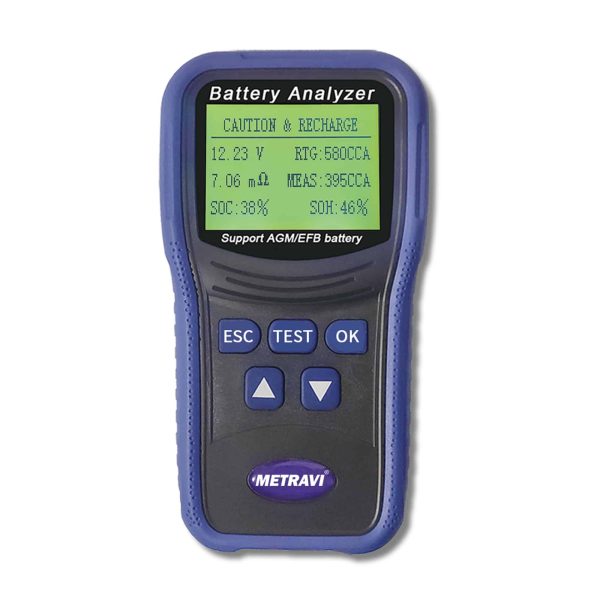

BT-200 Battery Analyser
₹3,038.00 including GST @18%
NEW LAUNCH!!
Battery Analyser for testing Battery Voltage, Battery Capacity, Cold Start Current, Internal Resistance, State of Health & State of Charge. With backlit LCD display. Supports AGM/EFB battery start stop test and variety of battery standards (CCA, IEC, SAE, EN, DIN,JIS, unknown)
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
NEW LAUNCH!!

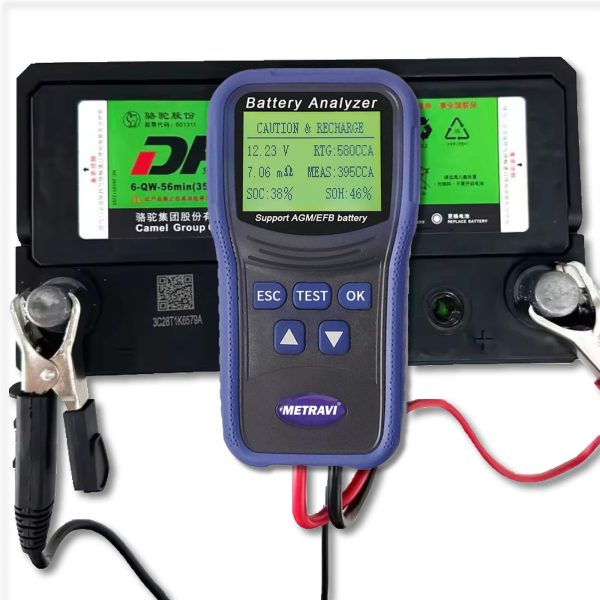

The Metravi BT-200 Battery Analyser is suitable tools for testing the performance of Starting Automotive Battery (AGM/EFB) lead-acid battery, vehicle start process, charging process and power load process.

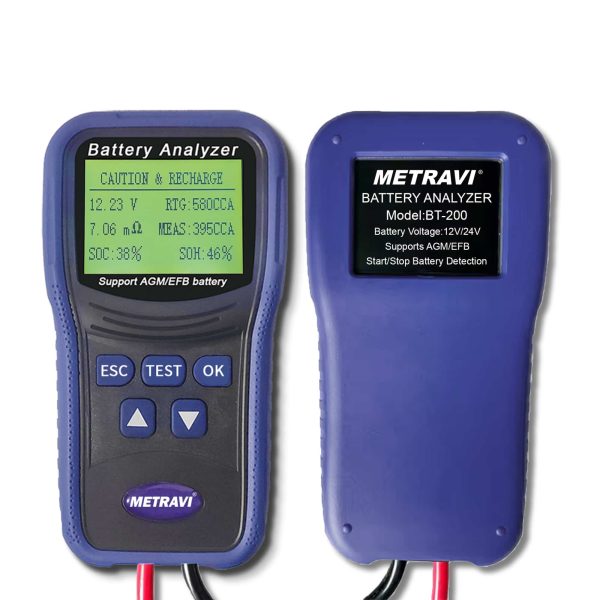

The product is well designed and easy to operate. The instrument uses a backlit LCD screen. The test process is simple and the results are clear and intuitive. It adopts a four-wire kelvin test connection test and is designed with protection measures for various incorrect operations, such as incorrect connection of input signal line input voltage overload and bad contact of test clamp etc., to ensure and convenient operations.
The Metravi BT-200 is used and is useful in automobile battery production, automobile battery distribution, automobile parts maintenance and other equipment systems involving various types of lead-acid batteries.
It is an ideal tools for testing the performance of lead-acid batteries and AGM/EFB automobile batteries.
FEATURES:

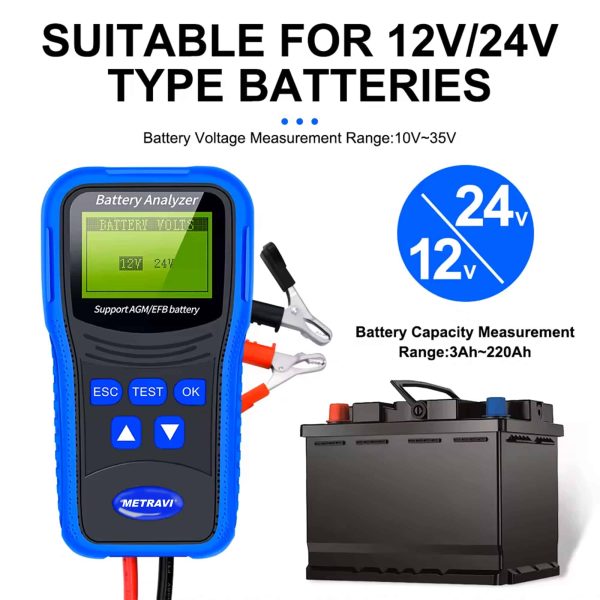

• Battery Voltage: 12V / 24V
• Battery Capacity:
• Cold Start Current:
• Internal Resistance:
• State of Health:
• State of Charge:
• Vehicle Starting Load Voltage Test (START-LOAD)
• Battery Maximum Load Voltage Test (RUN-LOAD)
• Vehicle to Battery Charging Voltage Test (CHARGE-SYS)

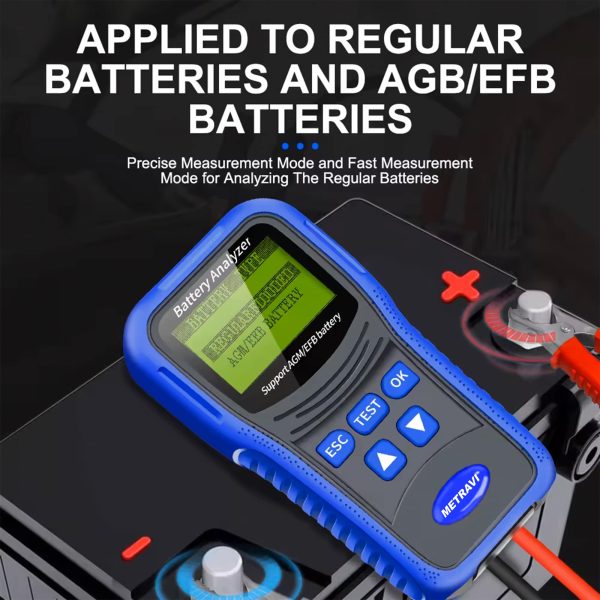

• Supports AGM/EFB battery start-stop test
• Supports variety of Battery Specifications: CCA, IEC, SAE, EN, DIN, JIS.
Additional information
| Brand | |
|---|---|
| Warranty | |
| Model | |
| Colour | |
| Display | |
| Real Time Voltage Waveform Test | – |
| Measuring Range | 100CCA – 2000CCA |
| Accuracy | ≤±5% |
| Measurement Mode | 4 Wire Kelvin Test Principle |
| Operating Voltage | 9V – 35V |
| Line Protection | Clamping the incorrect battery terminal will not burn the meter |
| Start-Load | Vehicle Starting Load Voltage Test |
| Run-Load | Battery Maximum Load Voltage Test |
| Charge-Sys | Vehicle to Battery Charging Voltage Test |
| Power | Powered by the battery under test |
| Printer Paper | – |
| Print Report | – |
| Operating Battery Capacity | 3Ah – 220Ah |
| Battery Voltage | 12V / 24V |

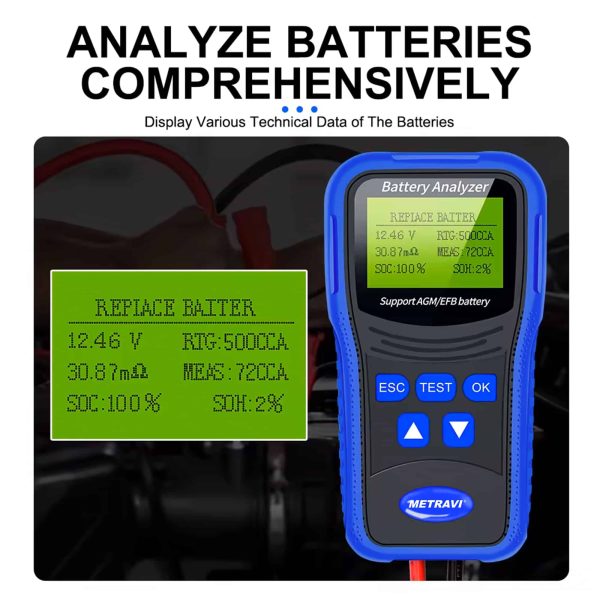

| Battery Test | Voltage. Internal Resistance. Cold Start Current. SOC. HOC |
| Operating Temperature | -20° to 60°C (-4° to 140°F) |
- Battery Voltage: 12V / 24V

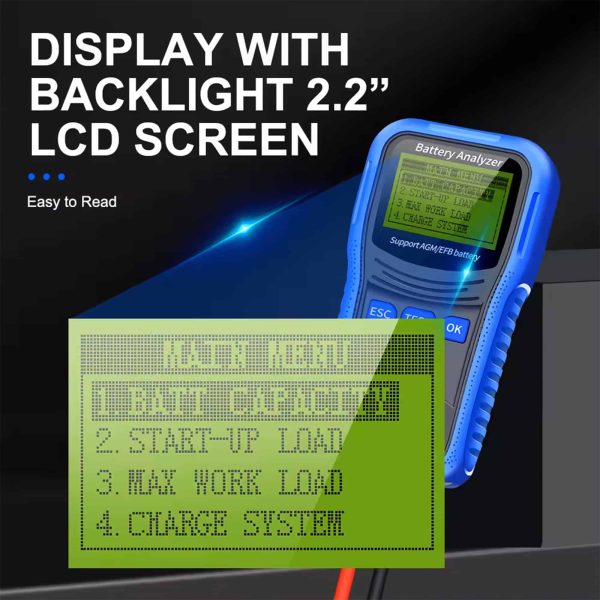

- Display: Lattice Screen Backlit LCD
- AGM/EFB Battery Start/Stop Test: Available
- Measuring Range: 100CCA – 2000CCA
- Operating Battery Capacity: 3Ah – 220Ah
- Accuracy: ±5%
- Measurement Mode: 4 Wire Kelvin Test Principle
- Operating Voltage: 9V – 35V
- Line Protection: Clamping the incorrect battery terminal will not burn the meter
- Battery-Test: Voltage. Internal Resistance. Cold Start Current. SOC. HOC
- Start-Load: Vehicle Starting Load Voltage Test
- Charge-Sys: Vehicle to Battery Charging Voltage Test
- Power: Powered by the battery under test
- Operating Temperature: -20° to 60°C (-4° to 140°F)
- Cold Starting Current Measurement Range:
| STANDARD | DESCRIPTION | RANGE |
|---|---|---|
| CCA (SAE) | Cold Starting Current | 100-2000 |
| IEC | International Electrotechnical Commisssion Standard | 100-1000 |
| EN | European Industrial Standard | 100-2000 |
| DIN | German Industrial Standard | 100-1000 |
| JIS* | Japanese Industrial Standard | 26A17-245H52 |
| *** | Unknown Standard | 100-2000 |
View Catalogue: Metravi BT-200 BT-220 Battery Analysers Catalogue
