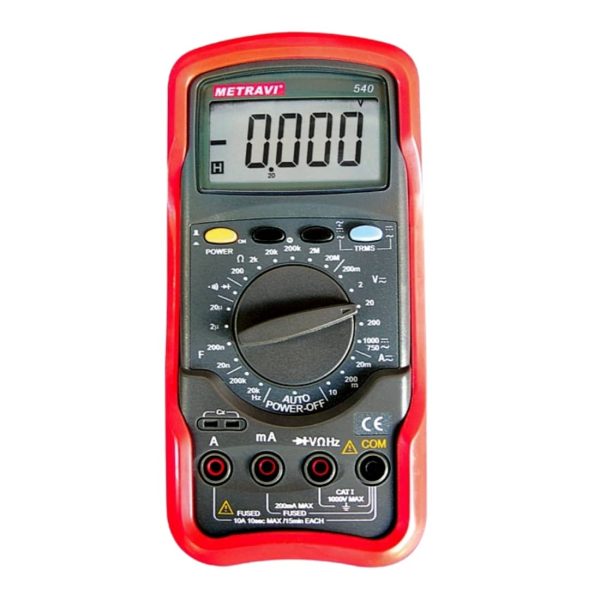

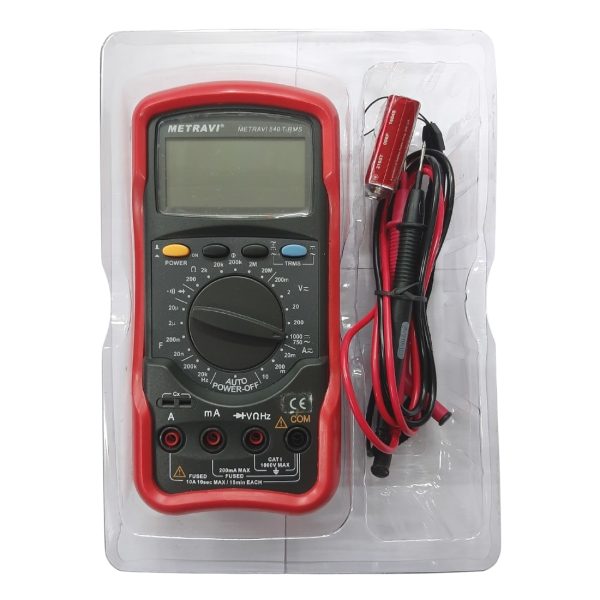

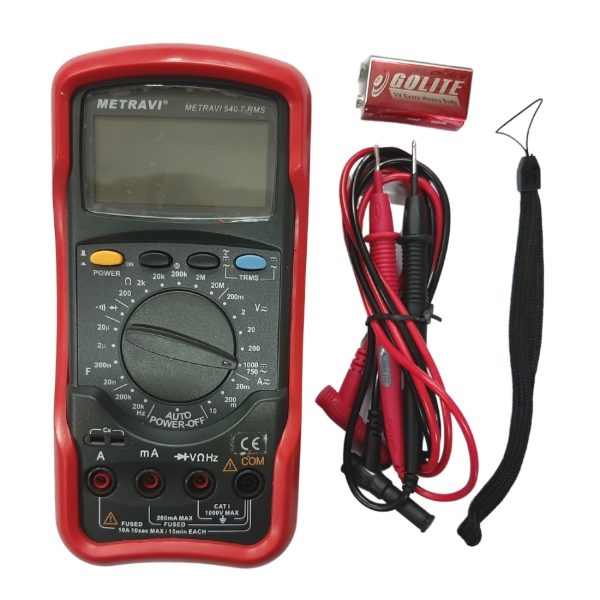

540 Digital TRMS Multimeter
Original price was: ₹5,146.00.₹2,899.00Current price is: ₹2,899.00. including GST @18%
4-1/2 Digits, LCD, Data Hold, T-RMS, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode & Continuity Test.
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
The 540 is a Multimeter with 4 1/2 digits, which has special & steady functions and is a highly reliable hand-held instrument. The highlight of the meter is the use of CMOS technology with large scale integrated circuit using double-integrated A/D transducer at its core and full ranges overload protection.
It can measure DC & AC currents, DC & AC Voltage, Resistance, Capacitance, Diode, Frequency & Continuity with Beeper. AC Voltage & current measurements are TRMS and it has the function of AC+AC/DC which makes it an ideal tool for users.
Additional information
| Model | |
|---|---|
| Brand | |
| Warranty | |
| Colour | |
| T-RMS | |
| Data Hold | |
| Auto Power Off | |
| Low Battery Indication | |
| Overload Indication | Overload Indication |
| Diode & Continuity | |
| Display | |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | |
| DC Voltage Accuracy | ±0.05% |
| AC Voltage Range | |
| DC Current Range | |
| DC Current Accuracy | ±0.5% |
| AC Current Range | |
| Resistance Range | |
| Resistance Accuracy | ±0.1% |
| Capacitance Range | |
| Frequency Range | |
| Frequency Accuracy | ±1.0% |
| DC Current Resolution | 1µA to 1mA |
| DC Voltage Resolution | 10µV to 100mV |
| Resistance Resolution | 0.01Ω to 1kΩ |
| Capacitance Resolution | 1pF to 1nF |
| Frequency Resolution | 1Hz to 10Hz |
- T–RMS Measurement
- Data Hold
- Auto Power Off
- Full-range symbol display.
- Fully-range overload protection.
- Low battery display.
- Display: 4 ½ Digits 19999 Counts Large LCD
- DC Voltage: 0 – 200mV/2V/200V/1000V
- Accuracy: ± 0.5%
- AC Voltage: 0 – 200mV/2V/20V/200V/1000V T-RMS
- Accuracy: ± 0.1%
- DC Current: 0 – 20mA/200mA/10A
- Accuracy: ± 0.5%
- AC Current: 0 – 20mA/200mA/10A T-RMS
- Accuracy: ± 1.0%
- Resistance: 0 – 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
- Accuracy: ± 0.1%
- Capacitance: 0 – 20nF/200nF/2µF/20µF
- Accuracy: ± 2.0%
- Frequency: 0 – 20KHz/200KHz
- Accuracy: ± 1.0%
- Diode Test and Audible Continuity Test
View Catalogue: Metravi 540 T-RMS 4-1-2 Digit Digital Multimeter Catalogue
