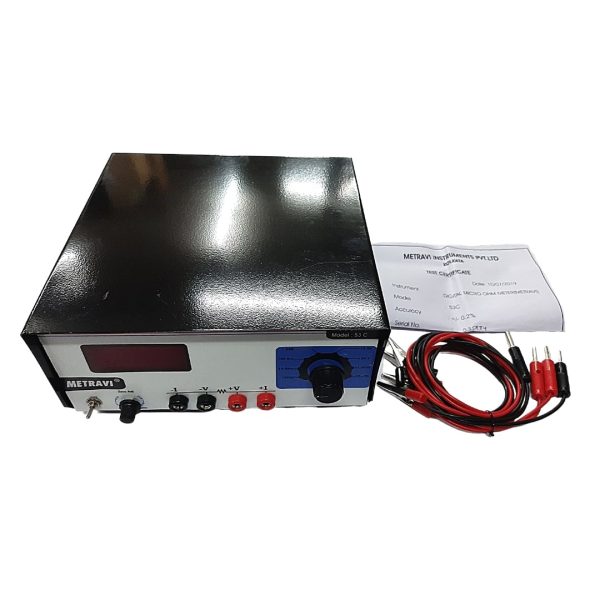

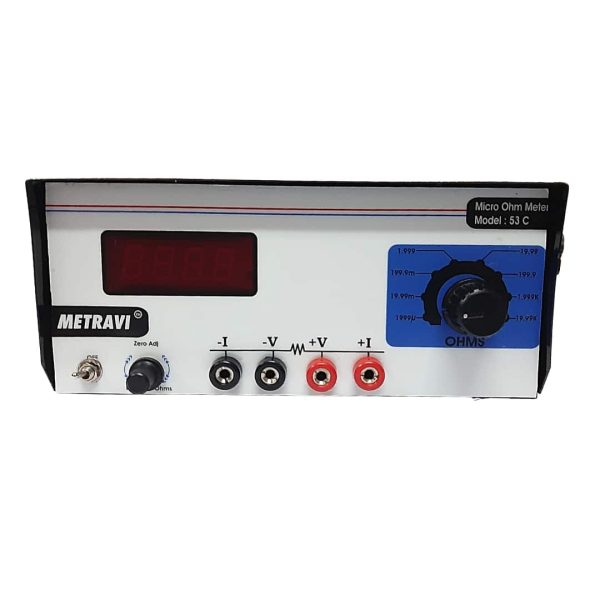

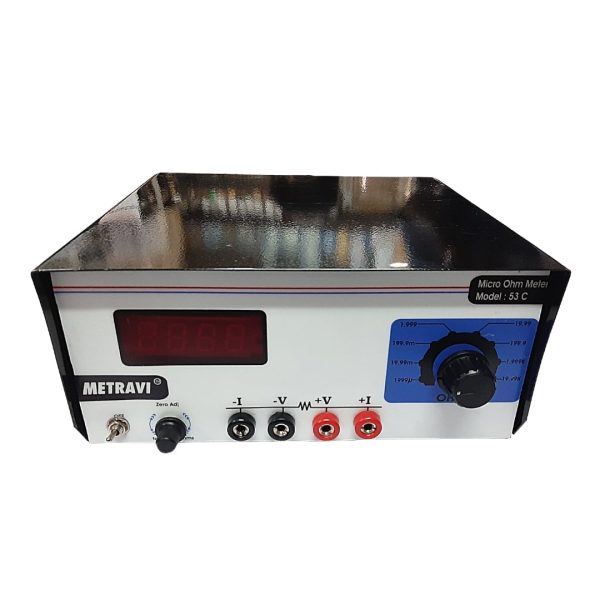

53C 1A Micro Ohms Meter
₹9,180.00 including GST @18%
Digital Micro Ohms Meter to measure from 1uOhm to 19.99 k.Ohms.
Compare
- Description
- Additional information
- Specifications
- Catalogue
- Reviews (0)
Description
Digital Micro Ohms Meter to measure from 1uOhm to 19.99 k.Ohms.
Additional information
| Model | |
|---|---|
| Brand | |
| Colour | |
| Warranty | |
| Display | |
| Power Supply | Mains, 10W, 230V±10% |
| Method of Measurement | 4-Wire Method |
| Warm-up Time | 3 min |
| Resistance Range | 0 – 1999uΩ, 1.999Ω, 19.99kΩ, 19.99mΩ, 19.99Ω, 199.9mΩ, 199.9Ω, 1999Ω |
| Resistance Resolution | 1Ω, 100mΩ, 100µΩ, 10mΩ, 10uΩ, 10Ω, 1mΩ, 1µΩ |
| Resistance Accuracy | ±0.2% |
| Test Current | 0.005mA, 0.075mA, 0.75A, 1.5A, 75mA |
- Compact Highly Reliable 3-1/2 Digit Instrument
- Uses 4 Terminal Measurement method
- Has 12.5 mm high 7 segment 3-1/2 Digits LED Display
- Range : 0 – 1999u / 19.99m / 199.9m / 1.999 / 19.99 / 199.9 / 1999 /19.99K Ohms
- Accuracy : + 0.3% + 2 dgs
- Normal Test Current : 1.5 / 0.75 / 0.75 / 75m / 7.5m/ 0.75m / 0.075mA
- Warm up Time : 3 minutes
- Input : 230V Single Phase AC 50Hz

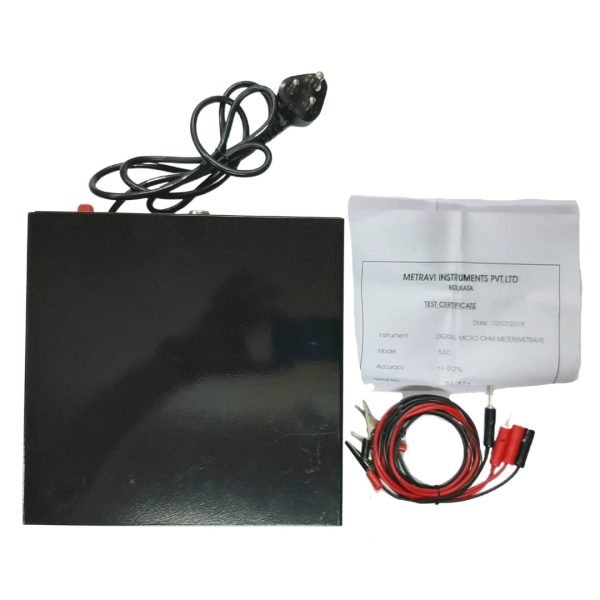

- Complete with instruction manual, mains chord and test leads
View Catalogue: Metravi 53C Micro Ohms Meter Catalogue 0222
